Name: Donaldson M100464 MUFFLER, ROUND,
SKU: m100464
Price: 983.49 USD
Availability: InStock

DONALDSON part description

Product Description

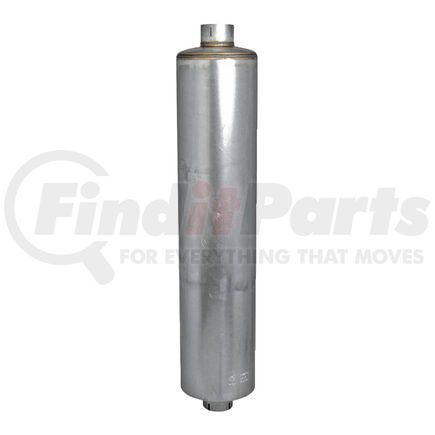

MUFFLER, ROUND STYLE 1 WRAPPED

Product Attributes

Body Length	44.56 in
Overall Length	51.00 in
Attenuation Hr	35 dBA
Attenuation Lr	25 dBA
Back Pressure High-range	Hg2.99 inch Hg)
Back Pressure Low-range	Hg0.98 inch Hg)
Back Pressure Mid-range	Hg2.01 inch Hg)
Body Diameter Maximum	10.36 in
Inlet Diameter	4.02 in
Outlet Diameter	4.02 in
Rated Flow Hr	40.2 m³/min (1420 cfm)
Rated Flow Lr	23.2 m³/min (819 cfm)
Rated Flow Mr	32.8 m³/min (1158 cfm)
Style	Style 1
Type	Wrapped

For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
