Dana 9-1-333 - Circular Flange Drive Shaft Companion Flange - Steel, Circular Flange, 8 Holes
$1,10449
48 day lead time
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Flange Type | Circular |
| Series | 1880 |

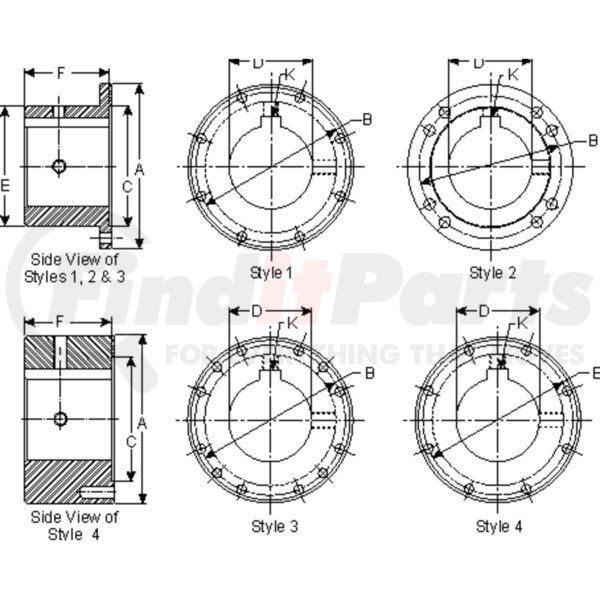

| Flange Width Diameter (A) In. | 9.50 |
| Bolt Circle Diameter (B) In. | 8.250 |
| Number Of Holes | 8 |
| Bore Diameter (D) In. | 1.500 |
| Pilot Diameter (C) In. | 7.000 - FEMALE |
| Hub Diameter (E) In. | 6.875 |
| Circ Flnge Face To End Of Hub | 5.000 |
| Bolt Hole Diameter (In.) | .625 - DRILLED |
| Material | Steel |
| Actual Hole Diameter (Max) | 1.500 |
| VMRS | 024002040 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 24.7 LB |
| Country of Origin | United States |
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Product Attributes
| Series | 1880 |
| Material | Steel |
| NUMBER OF HOLES | 8 |
| Pilot Diameter (C) In. | 7.000 - FEMALE IN |
| Bolt Circle Diameter (B) In. | 8.250 IN |
| FLANGE TYPE | Circular |
| Actual Hole Diameter (Max) | 1.500 IN |
| Bore Diameter (D) In. | 1.500 IN |
| Circ Flnge Face To End Of Hub | 5.000 IN |
| Flange Width Diameter (A) In. | 9.50 IN |
| Hub Diameter (E) In. | 6.875 IN |
| Bolt Hole Diameter (In.) | .625 - DRILLED IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913216337 |
| VMRS Code | 024002040 |
