BENDIX K046180 Air Dryer

★★★★★ (0)

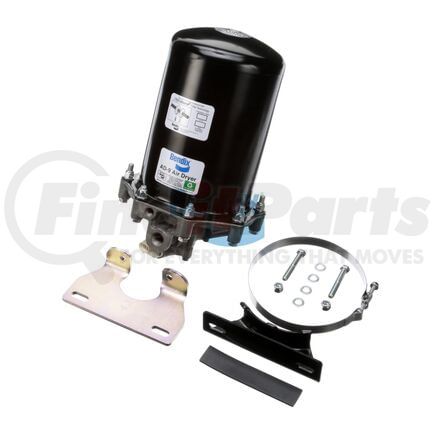

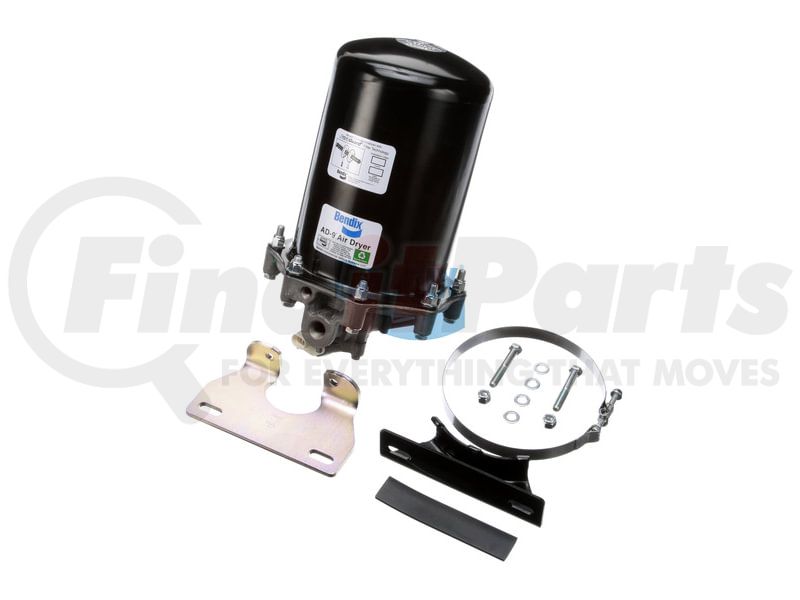

Bendix K046180 Air Brake Dryer Air Dryer
BENDIX
Tap to view 1 more
Bendix K046180 Air Brake Dryer Air Dryer

$1,063.99

Limited availability at this price!

In Stock

Get as soon as Tuesday, Nov 24
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

BENDIX K046180 Part Description

Manufacturer

BENDIX

Product Description

Air Dryer

Features & Benefits

  • Complete assembly brings a new housing, purge valve, and desiccant
  • Heater-equipped design keeps the purge valve working in winter
  • Installs as a whole dryer assembly in a single visit
  • Dries the brake system air before it reaches the reservoirs

Bendix Air Brake Dryer

The Bendix Air Brake Dryer is a complete air dryer assembly, replacing the whole unit rather than just the desiccant cartridge inside it. The Bendix K046180 makes sense when the housing, purge valve, heater, or mounting has failed, since a new cartridge alone will not fix those problems. Installing it with a check of the compressor discharge line catches oil or carbon that could foul the new dryer quickly. Draining the air tanks after the swap clears water left behind by the failed unit.

BENDIX K046180 Specifications

Product Attributes

Air Dryer TypeStand-Alone
Body MountingA~ .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Cartridge Stabilizer Ring IncludedNo
Cartridge Thread5/8-11 UNC-2A
Cartridge TypePuraGuard (Coalescing)
Cautionary Note(s)Do not replace PG cartridge with Standard/GC cartridge.
Clamp Band Angle (CW from SUP)Not applicable to this part
Clearance to Remove Cartridge11.00 IN
Control Port1/4-18 NPT
Cut-In PressureNot applicable to this part
Cut-Out PressureNot applicable to this part
Delivery Port 11/2-14 NPT
Delivery Port 2Not applicable to this part
Extended Purge PortNot applicable to this part
Governor IncludedNo
Governor Mounting BracketNot applicable to this part
Governor Mounting Bracket Angle (CCW from SUP)Not applicable to this part
Governor TypeNot applicable to this part
Heater / Thermostat Rating12V / 75W
Heater Connector ColorWhite
Heater Connector TypeMetri-Pack 280 Series 2-Way Sealed Connector (Male)
Lower Mounting Bracket.41 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket Angle (CCW from SUP)Loose in Box
Market IndicatorAftermarket New
Maximum Inlet Temperature160 AdegF (71 AdegC)
Minimum Operating Temperature-40 AdegF (-40 AdegC)
Purge Exhaust PortOpen (No Cover)
Purge Valve TypeHard Seat
Purge VolumeStandard
Remote Fill FeatureNot applicable to this part
Remote Purge PortNot applicable to this part
Safety Valve Opening Pressure200 PSI
Supply Port1/2-14 NPT
Turbo Cut-off FunctionNot applicable to this part
Upper Mounting Bracket.39 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket Angle (CCW from SUP)Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)Loose in Box
Upper Mounting TypeStrap (Stainless Steel)

Additional Information

Country of Origin (Primary)MX
UPC04068078215838
VMRS Code013010252

BENDIX K046180 Cross References

BrandPart Number
BWK046180
N/A107794PG
