Name: Dana 6-82-1351-4 1710 Series Drive Shaft Yoke Shaft - 16 Spline, BP Style
SKU: 68213514
Price: 809.99 USD
Availability: InStock

DANA part description

Spicer 6-82-1351-4 Yoke Shaft 45 Degree 9.3 Long

Product Attributes

Series	1710
Spline Count	16
Style	BP

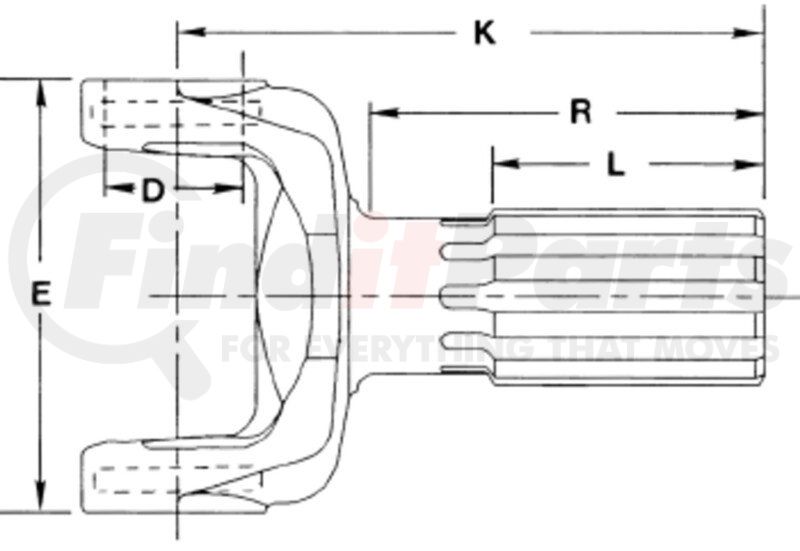

Centerline To End Of Splne (K)	13.094 IN
Major Spline Diameter	2.500 IN
Spline Length (L) In	3.500 IN
Angle #1	45.0
Spline Hole Minor Diameter	2.125 IN
Spline Width	0.234 IN
End/Spline To Point/Rad. (R)	8.969 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913212919
VMRS Code	024002061

Part Interchanges

DANA 6-82-1351-4 Cross Reference

We have 2 alternatives for the 6-82-1351-4 by DANA:
