Name: Dana 6-4-4481X PINION SHAFT END YOKE
SKU: 644481x
Price: 260.99 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1710
Spline Count	10

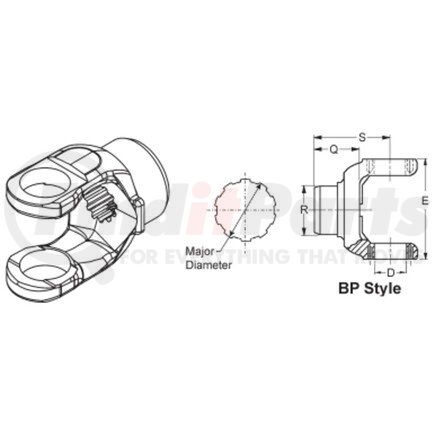

Yoke Style	BP
Hub Diameter R	2.750
C/L To End Hub S	6.500
Type	Splined Hole
Outside Yoke Dimension (In) E	6.094
Yoke Bearing Dimension (In) D	1.938
Major Diameter	1.960
Involute Spline	N
Length Thru Hole Q	2.625
VMRS	022003072
Includes Slinger/Plug	Y
Assembly	Y
Material	Steel
Weight	13.27 LB
Country of Origin	Mexico

Product Attributes

Series	1710
Material	Steel
Spline Count	10
Type	Splined Hole
Assembly	Y
Hub Diameter R	2.750 IN
Includes Slinger/Plug	Y
Involute Spline	N
Length Thru Hole Q	2.625 IN
Outside Yoke Dimension (In) E	6.094 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	BP
Major Diameter	1.960 IN
C/L To End Hub S	6.500 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913221713
VMRS Code	022003072

Part Interchanges

DANA 6-4-4481X Cross Reference

We have 4 alternatives for the 6-4-4481X by DANA:
