Dana 6.5-4-2141 - PINION SHAFT END YOKE
$57849
36 day lead time
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1810 |
| Spline Count | 10 |
| Yoke Style | BP |

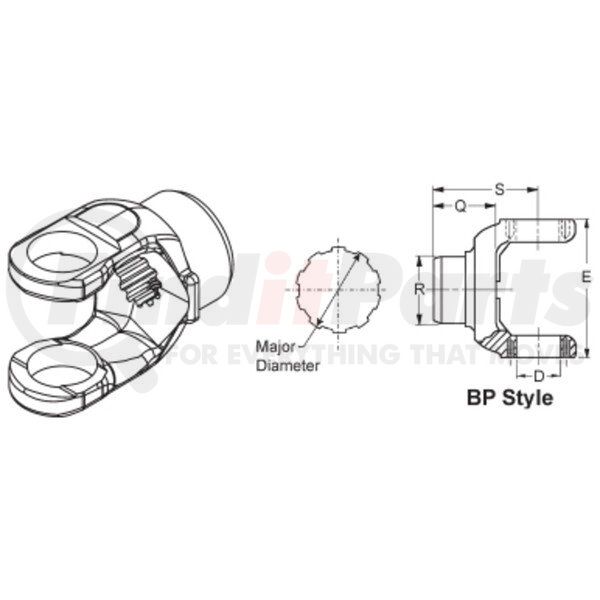

| Hub Diameter R | 3.125 |
| C/L To End Hub S | 5.375 |
| Type | Splined Hole |
| Major Diameter | 2.250 |
| Involute Spline | N |
| Length Thru Hole Q | 2.250 |
| VMRS | 022003072 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Material | Steel |
| Joint Angle #1 | 30 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 6.35 LB |
| Country of Origin | United States |
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
Product Attributes
| Series | 1810 |
| Material | Steel |
| Spline Count | 10 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 3.125 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | N |
| Length Thru Hole Q | 2.250 IN |
| Yoke Style | BP |
| Major Diameter | 2.250 IN |
| C/L To End Hub S | 5.375 IN |
| Joint Angle #1 | 30 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913222147 |
| VMRS Code | 022003072 |
Part Interchanges
- Daimler Truck North America SP 6.5 4 2141
- Daimler Truck North America SP 6.5 4 2141HP
- Dana Commercial Vehicle Service Parts 2104-6542141
- Dana Commercial Vehicle Service Parts 38MU3271
- Dana Commercial Vehicle Service Parts 38MU3271P2
- Volvo 2104-6542141
- Volvo 38MU3271
- Volvo 38MU3271P2
- Volvo SP 6.5 4 2141
- Volvo SP 6542141
- International Harvester (IHC) 6542141
- International Harvester (IHC) D6542141
- International Harvester (IHC) E6542141
- Navistar 6542141
- Navistar D6542141
- Navistar DS6542141
- Navistar E6542141
- Paccar Parts 6.5-4-2141
- Mack 21046542141
- Mack 2104-6542141
- Mack 25014754
- Mack 25084056
- Mack 38MU3271
- Mack 38MU3271P2
- Freightliner SP 6.5 4 2141HP
- UAP 6.5-4-2141
DANA 6.5-4-2141 Cross Reference
We have 3 alternatives for the 6.5-4-2141 by DANA:
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
