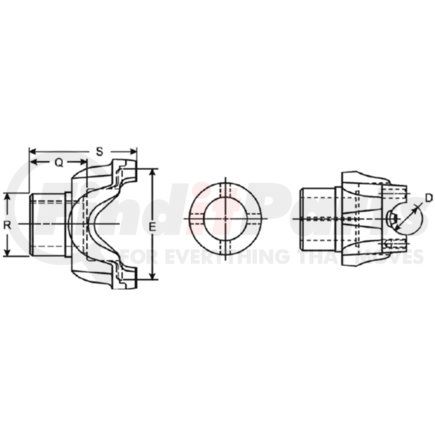

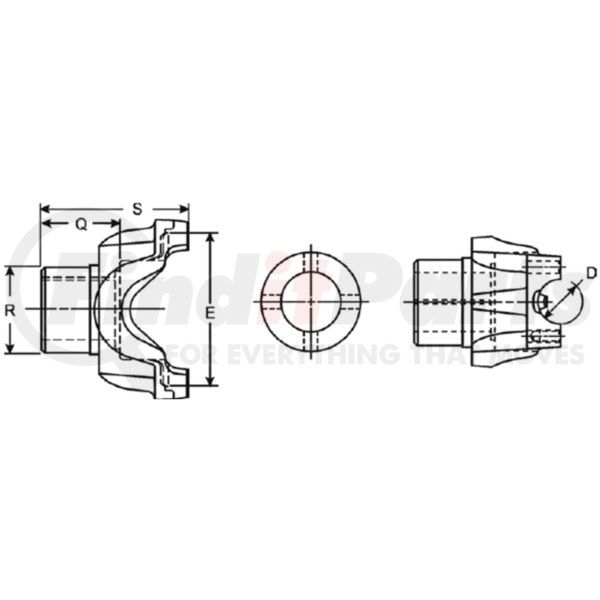

Dana 5-4-8971-1 - 1610 Series Drive Shaft End Yoke - Steel, 38 Spline, HR Yoke Style, Splined Hole
$31699
MSRP: $398.41
Save: $81.42
In stock
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1610 |
| Spline Count | 38 |
| Yoke Style | HR |
| Hub Diameter R | 2.750 |
| C/L To End Hub S | 4.000 |
| Type | Splined Hole |
| Major Diameter | 1.998 |
| Involute Spline | I |
| Length Thru Hole Q | 2.125 |
| VMRS | 026001083 |
| Material | Steel |
| Joint Angle #1 | 19 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 7.14 LB |
| Country of Origin | Mexico |
Features & Benefits
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Product Attributes
| Series | 1610 |
| Material | Steel |
| Spline Count | 38 |
| Type | Splined Hole |
| Hub Diameter R | 2.750 IN |
| Involute Spline | I |
| Length Thru Hole Q | 2.125 IN |
| Yoke Style | HR |
| Major Diameter | 1.998 IN |
| C/L To End Hub S | 4.000 IN |
| Joint Angle #1 | 19 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913220310 |
| VMRS Code | 026001083 |
Part Interchanges
- Eaton 86750
- Daimler Truck North America SP 5 4 8971 1
- Daimler Truck North America SP 5 4 8971 1HP
- Volvo SP 5489711
- International Harvester (IHC) 5489711
- International Harvester (IHC) D5489711
- International Harvester (IHC) E5489711
- John Deere T172969
- Navistar 5489711
- Navistar D5489711
- Navistar DS5489711
- Navistar E5489711
- Paccar Parts 5-4-8971-1
- Mack 2104-5489711
- Freightliner SP 5 4 8971 1
- Freightliner SP 5 4 8971 1HP
- UAP 5-4-8971-1
DANA 5-4-8971-1 Cross Reference
We have 3 alternatives for the 5-4-8971-1 by DANA:
