(888) 312-8812 Login SignupDANA SPICER 5-110X Universal Joint Non Greaseable 1000 Series Steering Shaft Joint
Tap to view 7 more
$4999
Limited availability at this price!
In Stock
Get it by Monday, Jul 13
DANA SPICER 5-110X Part Description
Manufacturer
Product Description

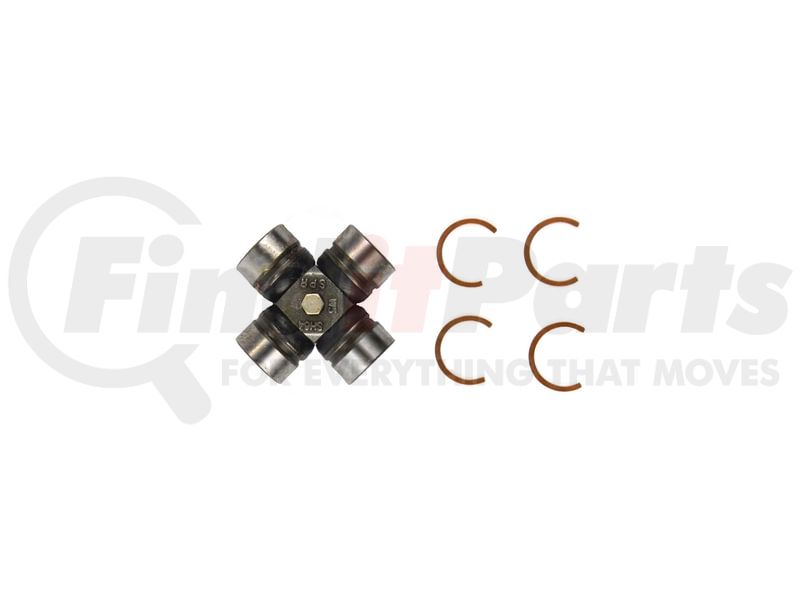

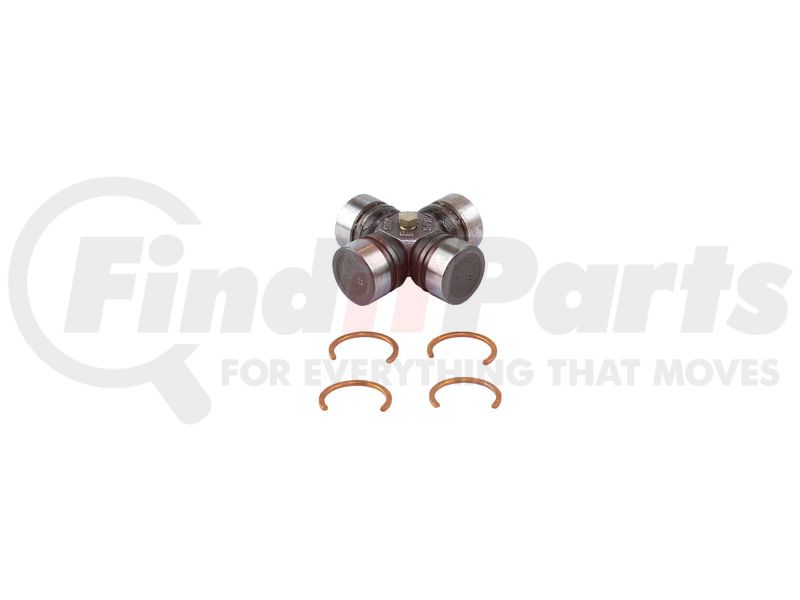

Universal Joint Non Greaseable 1000 Series Steering Shaft Joint
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Backed by Dana design and engineering standards you trust to ensure your customers only come back satisfied.
| Greaseable: | N |
| Type: | ISR Style |
| OEM Mfg: | Spicer |
| OEM Series: | 1000 |
| Bearing Cap Diameter (1): | 0.938 in. |
| Bearing Cap Diameter (2): | 0.938 in. |
| Snap Ring (1): | 1.5 in. |
| Snap Ring (2): | 1.5 |
DANA SPICER 5-110X Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 0.938 IN |
| OEM Mfg | Spicer |
| OEM Series | 1000SG |
| Type | ISR Style |
| Bearing Cap Diameter (2) | 0.938 IN |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Included | Yes |
| Snap Ring Type | Internal |
| Grease Zerk Included | Not Required |
| Pre Greased | Yes |
| Greaseable | No |
| Bearing Cap Diameter A (mm) | 23.825 MM |
| Bearing Cap Diameter B (mm) | 23.825 MM |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Hardware Included | No |
| Length A (In) | 1.500 IN |
| Length A (mm) | 38.100 MM |
| Length B (In) | 1.500 IN |
| Length B (mm) | 38.100 MM |
| Mounting Hardware Included | No |
| Distance Btw Snap Ring Grooves | 1.500 |
| Distance Btw Snap Ring Grooves (ISR) (2) | 1.500 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00023913126506 |
| VMRS Code | 024002046 |
DANA SPICER 5-110X Cross References
| Brand | Part Number |
|---|---|
| SP5110X, JR3Z6366601BA | |
| ACDelco | 45U2005 |
| DANA | 25-110X |
| Daimler Truck North America | 5110X, SP 5 110X, SP 5 110XHP |
| Dana Commercial Vehicle Service Parts | 2104-5110X |
| Dresser | 00735-226-00 |
| Euclid | E12980692 |
| Freightliner | 5110X, SP 5 110XHP |
| GMB | 2100170 |
| International Harvester (IHC) | 2593491C91, 5110X, D5110X, E5110X |
| MOOG | 338 |
| MOOG Chassis Products | 1502, 338 |
| Mack | 2104-5110X |
| MasterPro | 1502 |
| Miller | 810988 |
| NEAPCO | 1-0170, 1-0172 |
| Navistar | 2593491C91, 5110X, D5110X, DS5110X, E5110X |
| Neapco OE Series | 1-0170, 1-0172, 1-0170NPL |
| Paccar Parts | 5-110X |
| Precision | 1502 |
| SKF | 1-0170, 1-0172, UJ1502 |
| UAP | 5-110X |
| Volvo | 2104-5110X, 31704-5002, SP 5 110X, SP 5110X |
| WORLD AMERICAN | 5-170XR |
DANA SPICER 5-110X Customer Reviews
No reviews yet
Be the first to review this product!
DANA SPICER 5-110X Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
DANA SPICER 5-110X Questions & Answers
No questions yet
Be the first to ask a question about this product!
