DANA SPICER 4-4-4211-2 Part Description
Manufacturer
Product Description

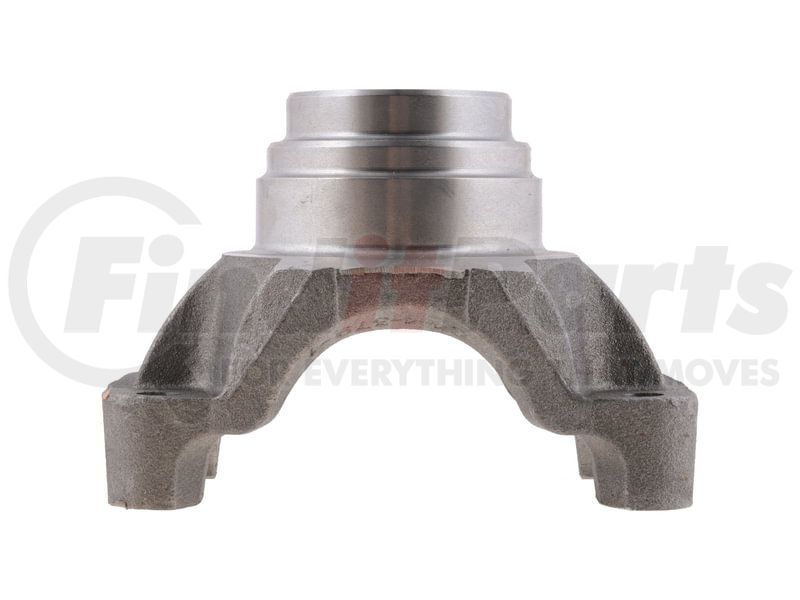

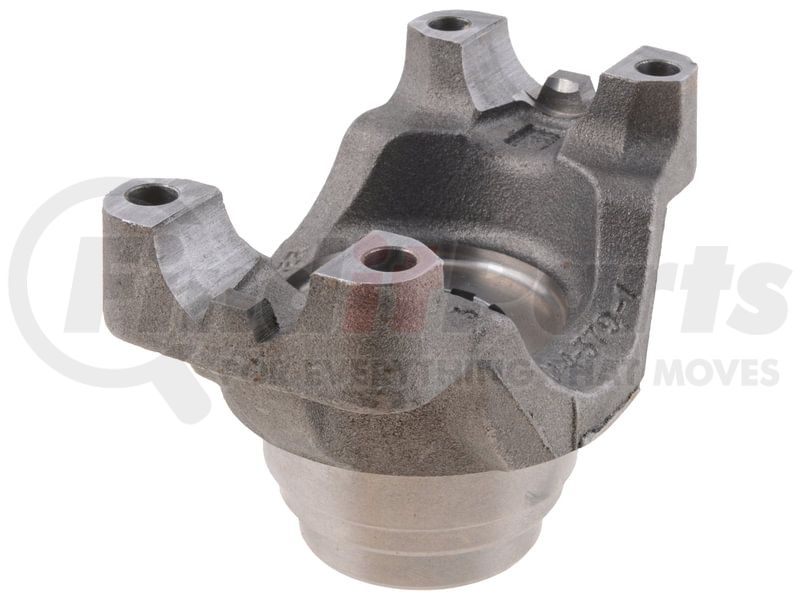

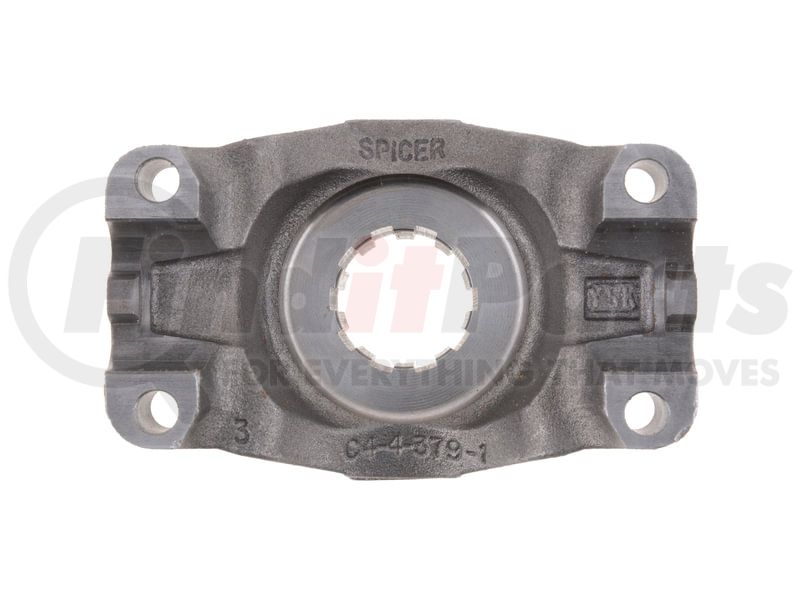

Drive Shaft End Yoke
Features & Benefits
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Specifications
| Brand | Spicer |
| Series | 1550 |
| Spline Count | 10 |
| Yoke Style | BS |
| Hub Diameter R | 2.562 |
| C/L To End Hub S | 3.812 |
| Type | Splined Hole |
| Outside Yoke Dimension (In) E | 4.964 |
| Yoke Bearing Dimension (In) D | 1.375 |
| Major Diameter | 1.500 |
| Involute Spline | N |
| Length Thru Hole Q | 2.000 |
| VMRS | 024001003 |
| Material | Steel |
| Joint Angle #1 | 22.5 |
| Joint Angle #2 | 22 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 4.75 LB |
| Country of Origin | United States |
DANA SPICER 4-4-4211-2 Specifications
Product Attributes
| Series | 1550 |
| Material | Steel |
| Spline Count | 10 |
| Type | Splined Hole |
| Hub Diameter R | 2.562 |
| Involute Spline | N |
| Length Thru Hole Q | 2.000 |
| Outside Yoke Dimension (in) E | 4.964 |
| Yoke Bearing Dimension (in) D | 1.375 |
| Yoke Style | BS |
| Major Diameter | 1.500 |
| C/l To End Hub S | 3.812 |
| Joint Angle #1 | 22.5 |
| Joint Angle #2 | 22 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913219505 |
| VMRS Code | 024001003 |
DANA SPICER 4-4-4211-2 Cross References
| Brand | Part Number |
|---|---|
| UAP 4-4-4211-2 | |
| Daimler Truck North America | E4HZ 4865 C, SP 4 4 4211 2, SP 4 4 4211 2HP |
| Dana Commercial Vehicle Service Parts | 2104-4442112 |
| Ford | E4HZ-4865-C |
| Freightliner | E4HZ 4865 C, SP 4 4 4211 2HP |
| International Harvester (IHC) | 4442112, D4442112, E4442112 |
| Mack | 2104-4442112 |
| Navistar | 4442112, D4442112, DS4442112, E4442112 |
| UAP | 4-4-4211-2 |
| Volvo | 2104-4442112, SP 4442112 |
