TRIANGLE SUSPENSION part description

This item has been replaced by AS-8453
This information for reference only

Inventory Available

DUB OKC FON Unit Price
18 0 38

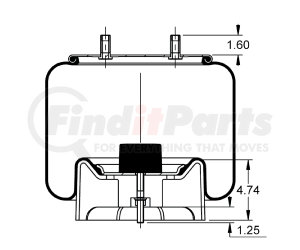

Type Bellows # Top Plate # Bottom Plate # Bottom Plate Material
Rolling Lobe 1010515
1DK25A
1T17CA5
566263073
6390
    Plastic
Top Plate Dia. (in) Design Height (in) Min. Height (in) Max. Height (in)
10.0 10.0 4.9 19.3
Max. Diameter (in) Load (lbs) @ 80psi Load (lbs) @ 100psi Natural Frequency (cpm)
13.9 7400 9250 81

2 Schematics

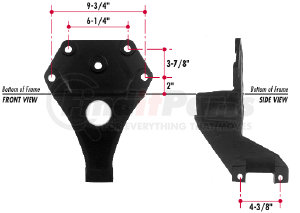

Hendrickson Model- INTRAXX AA230T, AA250T - Trailer Suspension
Hendrickson Models-VANTRAXX HKA180, HKA200, HKA250 - Trailer Suspension

Cross Reference

OEM # - Xref # Manufacturer
1010515P460 Contitech
1DK25A8709 Phoenix
1R13159 Goodyear
1R13262 Springride
64645 Contitech
C21800 Hendrickson
FS8709 Firestone
RL87090 Road Leveler
S-21800 Hendrickson
W013588709 Firestone

Hendrickson Model- INTRAXX AA230T, AA250T - Trailer Suspension

Since 1919, Triangle Suspension Systems Co.® has set the gold standard for steel leaf springs. With generations of spring shop customers going back for more than 7 decades, Triangle Suspension has made a name for itself for its use of high-quality materials that are backed by ISO-compliant manufacturing processes. Their catalog covers a wide range of applications, including leaf spring assemblies, air beams, and helper springs for light, medium, and heavy duty vehicles. They also offer spring repair components and custom-engineered spring to fill almost any niche. All their products are manufactured in-house in their DuBois, PA, manufacturing facility and distributed across the United States and beyond.
