(888) 312-8812 Login SignupRAYBESTOS 580895 Raybestos Specialty - Truck Brake Rotor
$24749
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Aug 12
RAYBESTOS 580895 Part Description
Manufacturer
Product Description

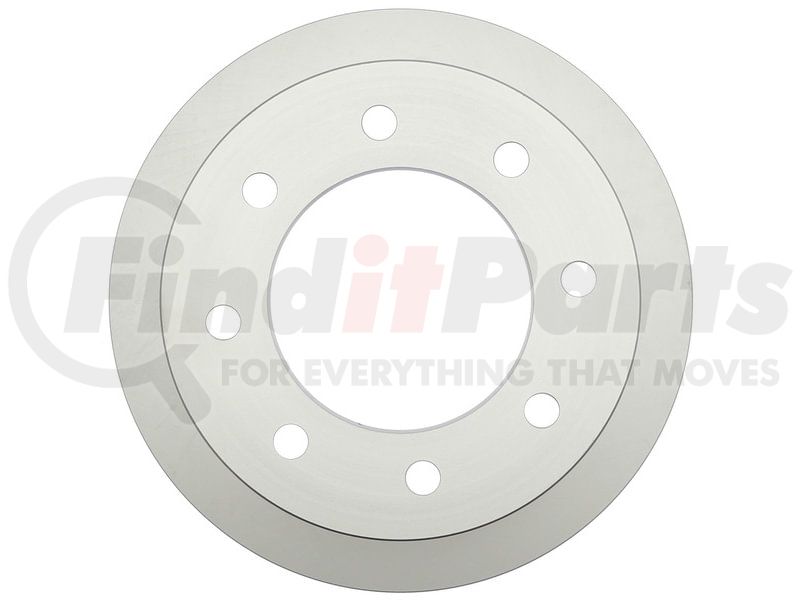

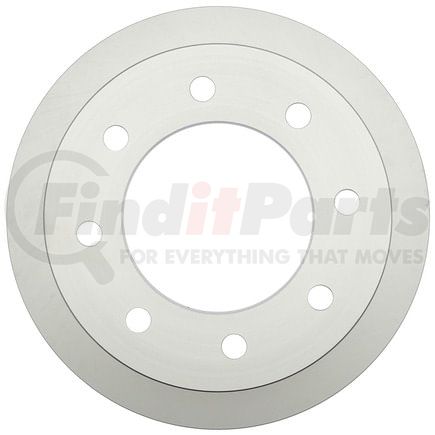

Raybestos Specialty - Truck Brake Rotor
Application Summary
2015-2011 Chevrolet Silverado 3500 HD Rear, 2015-2011 GMC Sierra 3500 HD Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 580895 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.12 IN |
| Center Hole Diameter | 130.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.496 IN |
| Discard Thickness | 38 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 10.047 IN |
| Inside Diameter | 255.2 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 7.087 IN |
| Mounting Bolt Hole Circle Diameter | 180 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.575 IN |
| Nominal Thickness | 40 MM |
| Outside Diameter | 13.976 IN |
| Outside Diameter | 355 MM |
| Overall Height | 5.906 IN |
| Overall Height | 150 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352848487 |
RAYBESTOS 580895 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH317203C, YH317203P, YH317203 |
| AUTOXTRA | AX901030 |
| AUTOZONE | 72022, 72022DG |
| AutoZone | 72022SD |
| BENDIX | PRT6076 |
| BOSCH | 25011468 |
| BRAKEBEST | 25011468, 580895, 580895FZN, 580895PER, 580895R, 580895RGS |
| CENTRIC | 120.66075, 121.66075, 126.66075CSL, 126.66075CSR, 126.66075SL, 126.66075SR, 127.66075L, 127.66075R, 128.66075L, 128.66075R, 320.66075 |
| Centric Parts | 120.66075, 121.66075, 126.66075CSL, 126.66075CSR, 126.66075SL, 126.66075SR, 127.66075L, 127.66075R, 128.66075L, 128.66075R, 320.66075 |
| DURA CORP | BR55194, BR901030 |
| DuraGo | 901030, BR901030, BR901030-02 |
| GM | 25815024 |
| General Motors | 25815024 |
| MAGMA PRODUCTS | PSR225262 |
| NEOTEK | 1072089GF |
| NEWTEK AUTOMOTIVE | 55194 |
| Newtek Automotive USA | 55194 |
| POWERSTOP | AR82154EVC |
| PROMAX | 14-55194 |
| PRONTO | BR901030 |
| Parts Master | 901030 |
| QUALIS | 41270 |
| TopNotch | TN580895GEO |
| UAP | R66075 |
| WAGNER | BD180443E |
| WINHERE | 6621264 |
| WORLDPAC | 1407-317203, 1427-523947 |
RAYBESTOS 580895 Fits Vehicles
- GMC Sierra 3500 HD (2011-2015)
- Chevrolet Silverado 3500 HD (2011-2015)
