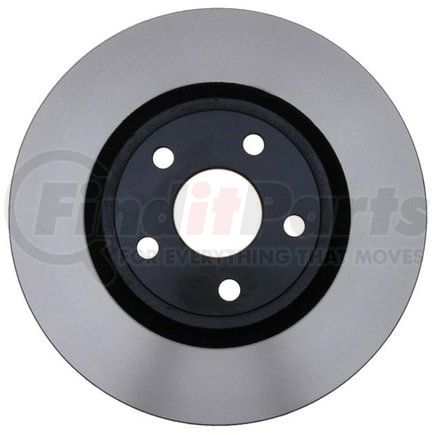

RAYBESTOS 780870 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2021-2011 Jeep Grand Cherokee Front, 2022-2011 Dodge Durango Front, 2022 Jeep Grand Cherokee WK Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780870 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.201 IN |
| Discard Thickness | 30.5 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.78 IN |
| Inside Diameter | 223 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.667 IN |
| Mounting Bolt Hole Diameter | 16.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 13.78 IN |
| Outside Diameter | 350 MM |
| Overall Height | 2.15 IN |
| Overall Height | 54.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352847114 |
RAYBESTOS 780870 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 321092, YH321092, YH321092C, YH321092P |
| AUTOPARTSOURCE | 491395 |
| AUTOXTRA | AX900946 |
| AUTOZONE | 72112, 72112DG, 72112GT, 72150DG, 72150DL |
| Advance Auto Parts | G09507SD |
| Autoxtra | AX900946P |
| BENDIX | PRT6100 |
| BOSCH | 16011492 |
| BRAKEBEST | 780870, 780870FZN, 780870PER, 780870R, 780870RGS |
| BREMBO | 09.N236.11 |
| Brembo | 09.N236.21, 09.N236.2X |
| CENTRIC | 120.58008, 120.58008CRY, 121.58008, 126.58008CSL, 126.58008CSR, 126.58008SL, 126.58008SR, 127.58008L, 127.58008R, 128.58008CL, 128.58008CR, 128.58008L, 128.58008R, 320.58008 |
| CHRYSLER | 68035012AB, 68035012AC, 68035012AD, 68035012AE, 68240046AA, 68240046AB |
| Centric Parts | 120.58008, 120.58008CRY, 121.58008, 126.58008CSL, 126.58008CSR, 126.58008SL, 126.58008SR, 127.58008L, 127.58008R, 128.58008CL, 128.58008CR, 128.58008L, 128.58008R, 320.58008 |
| Chrysler | 4755569AA, 4755577AA |
| DURA CORP | BR53064, BR900946 |
| Dodge | 04755569AA, 04755577AA |
| DuraGo | BR900946, BR90094602, BR900946-02, BR900946-03 |
| Dynamic Friction Company | 60042007, 60442007 |
| MAGMA PRODUCTS | PSR145197 |
| NAPA BRAKES | SDK6710 |
| NEOTEK | 107329GF |
| NEWTEK AUTOMOTIVE | 53064 |
| Newtek Automotive USA | 53064 |
| POWERSTOP | AR83078EVC |
| PROMAX | 14-53064 |
| PRONTO | BR900946 |
| Parts Master | 900946 |
| PowerStop | AR83078 |
| QUALIS | 43175 |
| TopNotch | TN780870GEO |
| UAP | 2053064, 53064 |
| Ultra Brake | 51215 |
| WAGNER | BD180434E |
| WINHERE | 6621295 |
| WORLDPAC | 1407-321092, 1427-731812 |
| WORLDPARTS | WS1-153064 |
| Wagner Brake | BD180434E, BD180753E |
| Winhere | 6622974 |
RAYBESTOS 780870 Fits Vehicles
- Jeep Grand Cherokee WK (2022)
- Dodge Durango (2011-2025)
- Jeep Grand Cherokee (2011-2021)
