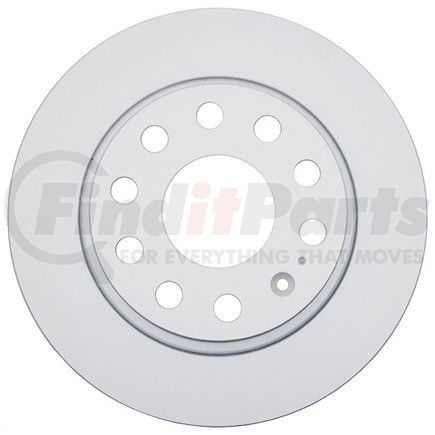

(888) 312-8812 Login SignupRAYBESTOS 980874 Raybestos Specialty - Street Performance Brake Rotor
$7499
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 2
RAYBESTOS 980874 Part Description
Manufacturer
Product Description
Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2018-2011 Volkswagen Jetta Rear, 2019-2013 Volkswagen Beetle Rear, 2013-2009 Volkswagen Eos Rear, 2015 Volkswagen Golf SportWagen Rear, 2013-2011 Audi A3 Rear, 2013 Volkswagen GTI Rear, 2013-2011 Audi A3 Quattro Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980874 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.56 IN |
| Center Hole Diameter | 65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.315 IN |
| Discard Thickness | 8 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.614 IN |
| Inside Diameter | 168 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.477 IN |
| Mounting Bolt Hole Diameter | 12.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 9.957 IN |
| Outside Diameter | 252.9 MM |
| Overall Height | 2.02 IN |
| Overall Height | 51.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352841006 |
RAYBESTOS 980874 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH321961, YH321961C, YH321961P |
| ATE BRAKE PRODUCTS | SP10277, 410277 |
| AUDI | 1K0615601AB, 1K061560K |
| AUTOPARTSOURCE | 416430 |
| AUTOXTRA | AX901124 |
| AUTOZONE | 45607, 45607DG |
| Autoxtra | AX901124P |
| BOSCH | 14011492, 53011410 |
| BRAKEBEST | 53011410, 980874, 980874FZN, 980874R, 980874RGS |
| Brembo | 08.9502.11, 08.9502.1S, 08.9502.1X, 08.9502.75 |
| CENTRIC | 120.33135, 121.33135, 125.33135, 125.33135CRY, 126.33135CSL, 126.33135CSR, 126.33135SL, 126.33135SR, 127.33135CL, 127.33135CR, 127.33135L, 127.33135R, 128.33135L, 128.33135R, 320.33135 |
| Centric Parts | 121.33135, 125.33135, 125.33135CRY, 126.33135CSL, 126.33135CSR, 126.33135SL, 126.33135SR, 127.33135CL, 127.33135CR, 127.33135L, 127.33135R, 128.33135L, 128.33135R, 320.33135, 120.33135 |
| DURA CORP | BR34470, BR901124 |
| DuraGo | BR901124, BR90112402 |
| Dynamic Friction Company | 604-74033 |
| MAGMA PRODUCTS | PSR583084 |
| NAPA BRAKES | SDK6087, TSR9811 |
| NEOTEK | 1060115GF |
| NEWTEK AUTOMOTIVE | 34470 |
| Newtek Automotive USA | 34470 |
| PAGID | 355122612 |
| PAGID Racing | 355122612 |
| POWERSTOP | EBR1207EVC |
| PROMAX | 14-34470 |
| PRONTO | BR901124 |
| Qualis | 45583 |
| TRW | DF4276S |
| TopNotch | TN980874GEO |
| UAP | 34470 |
| Ultra Brake | VW-2004 |
| VAICO | V1040077 |
| VOLKSWAGEN | 5C0615601, 5C0615601A |
| WAGNER BRAKE | BD180522, BD180522E |
| WINHERE | 661970 |
| WORLDPAC | 1407-321961 |
| WORLDPARTS | WS1-234470 |
RAYBESTOS 980874 Fits Vehicles
- Volkswagen Golf R (2012-2013)
- Volkswagen Caddy (2014-2015)
- Seat Toledo (2006, 2013)
- Seat Leon (2006-2012, 2016-2017)
- Seat Altea (2006, 2010-2012)
- Volkswagen Golf (2010-2016)
- Volkswagen Golf SportWagen (2015, 2017-2018)
- Audi A3 Quattro (2004-2005, 2009-2013)
- Volkswagen GTI (2010-2014, 2017)
- Volkswagen Beetle (2013-2019)
- Volkswagen Jetta (2011-2018)
- Audi A3 (2009-2013)
- Volkswagen Eos (2009-2016)
