Name: Dana 2-4-8311-1 DRIVE SHAFT END YOKE
SKU: 2483111
Price: 17.99 USD
Availability: InStock

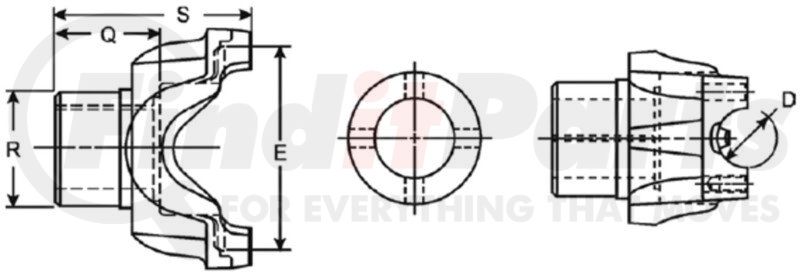

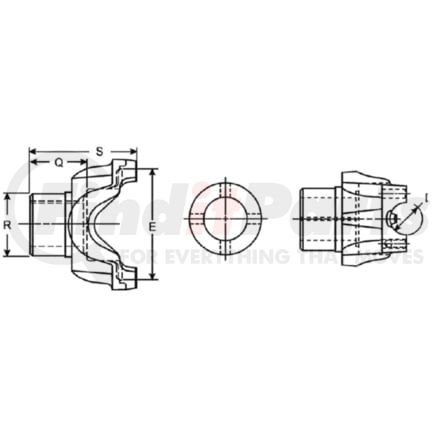

DANA part description

Series:	1310
Spline Count:	26
Yoke Style:	BS
Hub Diameter R:	1.844 in.
C/L to End Hub S:	3.235
Type:	Splined Hole
Outside Yoke Dimension (E):	3.219 in.
Yoke Bearing Dimension (IN) D:	1.062
Major Diameter:	1.146
Involute Spline:	I
Length Thru Hole Q:	1.370
C-Bore Depth:	0.120
Material:	Steel
Joint Angle #2:	30
C-Bore Diameter:	1.395

Product Attributes

Series	1310
Material	Steel
Spline Count	26
Type	Splined Hole
Hub Diameter R	1.844 IN
Involute Spline	I
Length Thru Hole Q	1.370 IN
Outside Yoke Dimension (In) E	3.219 IN
Yoke Bearing Dimension (In) D	1.062 IN
Yoke Style	BS
Major Diameter	1.146 IN
C/L To End Hub S	3.235 IN
C-Bore Depth	0.120 IN
C-Bore Diameter	1.395 IN
Joint Angle #2	30

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913277680
VMRS Code	024001003

Part Interchanges

DANA 2-4-8311-1 Cross Reference

We have 1 alternatives for the 2-4-8311-1 by DANA:

INTERNATIONAL-NAVISTAR 2483111
