HENDRICKSON part description

Product Description

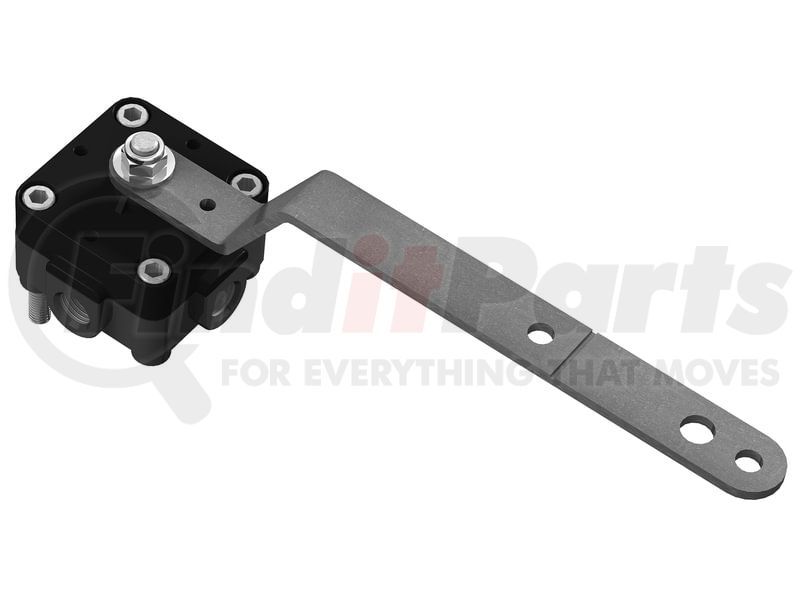

Replacement Height Control Valve

Application Summary


Features & Benefits

  • Leveling valve without dump feature
  • Ensures 130 psi maximum operating pressure
  • Features ¼-inch NPT dual delivery ports
  • For use in Hendrickson trailer air ride suspensions except Vantraax and ULTRAA-K
  • Can be used to replace Ridewell Extreme air leveling valves
  • Provides trailer’s air-ride suspension with system-tuned control
  • Large fill ports for higher fill rate and improved cargo and trailer protection

Hendrickson Height Control Valve

The Hendrickson height control valve ensures better airflow for faster air-up and improved after-dump response. It also guarantees swift air exhaust for superior stability when loading and unloading.

Product Attributes

Dump Feature N
Fitting Style None
Ride Height All
Intake/Exhaust Port Count 1
Delivery Port (to air bags) Count 2
Port Count 3
Valve Style (OE Brand) Barksdale
Mounting Detail Centering Pin, Mounting Bracket, Port Plug, 1/8 in NPT Adapters and hardware.
Lever Arm Detail Dual Length Arm; 5.00 in, 6.80 in, 7.50 in
Integral Dump Valve No
Common Application Trailer W/Hendrickson Suspension.
Hendrickson® is a worldwide leader in manufacturing and supplying a wide range of air suspension systems, axle and brake systems, bumpers, stabilizers, tire pressure control systems, lift axle systems, and springs to the commercial vehicle industry. Originally founded as The Hendrickson Motor Truck Company by Magnus Hendrickson in 1913, this Chicago-based company has experienced immense growth over the years. Its operations are no longer limited to the US but in other parts of the world, including Canada, France, India, Australia, China, Austria, Romania, Turkey, and the United Kingdom. But, it remains committed to providing the commercial vehicle industry with innovative products that enhance productivity and profitability.

HENDRICKSON VS-227 Cross Reference

We have 11 alternatives for the VS-227 by HENDRICKSON:
