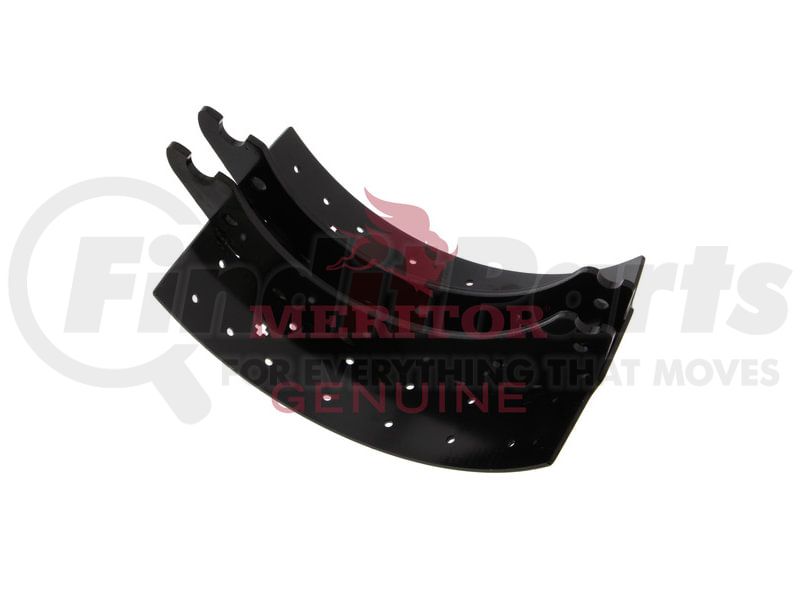

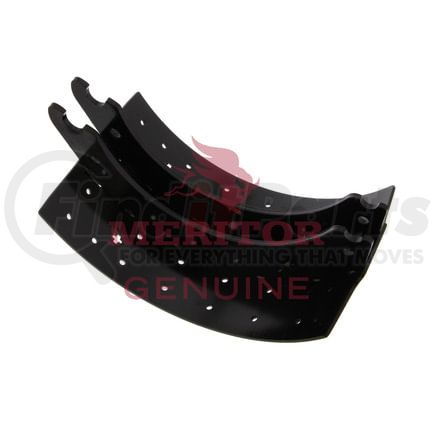

(888) 312-8812 Login SignupMERITOR A3222K2169 Drum Brake Shoe, 16.50 in. Brake Drum Diameter, 8.625 in. Brake Shoe Width, 0.25 in. Rivet Size, Unlined
MSRP: $85.11
$5149
Save $33.62
Limited availability at this price!
In Stock
Get it by Monday, Sep 14
MERITOR A3222K2169 Part Description
Manufacturer
Product Description
Brake Shoe, Unlined Brake Shoe
Features & Benefits
- Sixteen-point-five-inch diameter compatibility matches standard heavy-duty drums
- Eight-point-six-two-five-inch shoe width increases the available contact surface
- KIT 8000HD packaging simplifies brake shoe replacement planning
- Friction lining profile supports even pressure distribution across the drum surface
- Shoe construction suits high-load braking environments without modification
Meritor Drum Brake Shoe
The Meritor Drum Brake Shoe is used within heavy-duty drum brake assemblies to convert braking input into controlled wheel deceleration. During braking, the shoe moves outward inside the drum, pressing the friction lining against the rotating surface to slow vehicle motion through contact resistance. This interaction depends on proper shoe geometry and consistent lining engagement to keep braking response stable across repeated stops. The Meritor A3222K2169 is built to align with brake system layouts that use the Q Plus brake architecture, ensuring correct placement and interaction with existing drum and hardware components. Replacement of worn shoes restores braking behavior without disturbing axle or drum positioning.
| VMRS Code | 013-002-012 |
MERITOR A3222K2169 Specifications
Product Attributes
| Application Information | Meritor Q Plus; Rear drive axle |
| Brake Diameter | 16.50 in. |
| Brake Shoe Repair Kit | KIT 8000HD |
| Brake Shoe Width | 8.625 in. |
| Brake Type | Q Plus |
| Brand | Meritor |
| FMSI | 4711 |
| Friction Type | Unlined |
| Lining Number | Unlined |
| Lining Weight Rating | NA |
| Oe Mfg. | Meritor |
| Pallet Quantity | 63 |
| Rivet Hole Count | 28 |
| Rivet Number | RV3109S |
| Rivet Size | 0.25 in. |
| Weight | 13.90 |
| Brake Drum Diameter | 16.50 in. |
| Brake Shoe Width | 8.625 in. |
| Notes | Meritor Q Plus; Rear drive axle |
| New or Reman | New |
MERITOR A3222K2169 Cross References
| Brand | Part Number |
|---|---|
| TDAA3222K2169, KM5325, 4711Q, 73, 8235A3222K2169, A3222K2169RI, ATIA3222K2169, L3389, MERA3222K2169, ROA3222K2169, ZDRA3222K2169 |
MERITOR A3222K2169 Customer Reviews
No reviews yet
Be the first to review this product!
MERITOR A3222K2169 Manufacturer Information
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
