Cole Hersee 86126-4 - 86126-4 - Circuit Breaker Accessories Series

Cole Hersee Circuit Protection (Type l Cycling, Type ll Non-cycling, and Type lll Mechanical Reset) are designed for responsive performance over a long product life. Casings are manufactured from either high-quality plated steel or durable plastic and are available with and without mounting brackets. These heavy duty products are available for 12 and 24 Volt DC applications. Product types include plug-in and sealed circuit breakers.
Cole Herse Wiring Accessories include fuse and terminal blocks, circuit breaker blocks, clamps, cleats, fuse clips, terminals, wire splicers, fuse flashers, sealed beam and dimmer switch connectors. Cole hersee fused blocks and terminal blocks are interchangeable with other blocks having the same number of gangs.

All products listed in this section can be found in Section P of the Cole Hersee D-275 CATALOG.

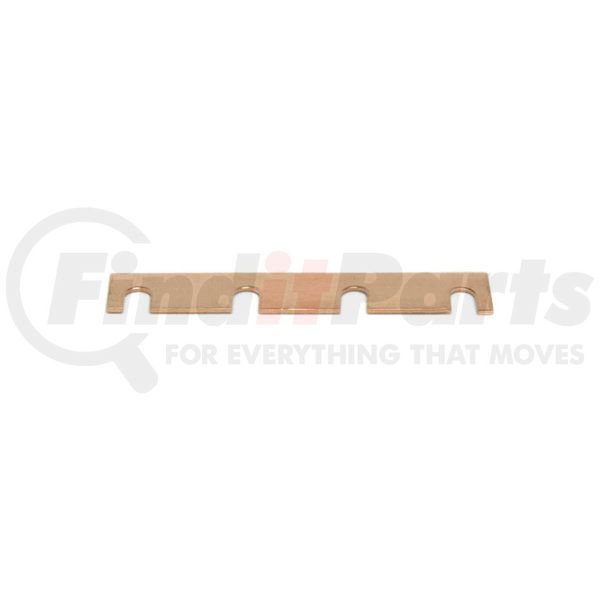

• Copper Busbar; accepts 4 Breakers

Description	Copper Busbar; accepts 4 Breakers
Description detail	Copper. Used to parallel breakers for higher amperage
Breaker type	Not Applicable
Voltage	6-48V DC
Ampheres	Not Applicable
Terminals	Not Applicable
Terminal size	Not Applicable
Wire description	Not Applicable
Housing style	Not Applicable
Mounting method	On Stud Type Circuit Breakers and 87128 Series Mounting Bracket
Overall part dimension	3.23"(82.04mm) Long ; .560"(14.22mm) Wide
Mounting	.910 Inches (23.11mm); Mouting Holes Clear 10-32 Studs
Min qty	No

COLE HERSEE 86126-4 Cross Reference

We have 2 alternatives for the 86126-4 by COLE HERSEE:

• 86126-2
• GD9Z5464417EA
