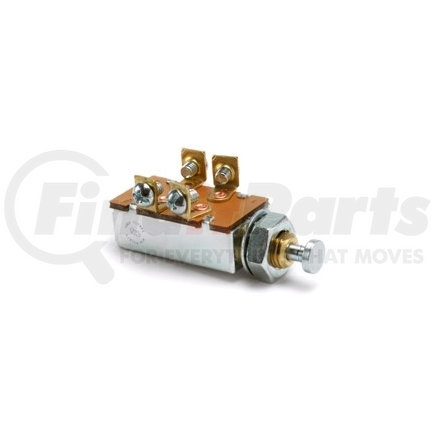

Name: Cole Hersee 9118-04 9118-04 - Door Push-Button Switches Series
SKU: 911804
Price: 26.49 USD
Availability: InStock

COLE HERSEE part description

Cole Hersee Momentary Switches are designed for heavy duty use. Silver contacts available for extra-heavy duty applications to 36 VDC. Imprinted actuator buttons for engine controls are available.
Marine construction, push button switches offer non-corrosive construction, moisture repellent insulators, and brass case, stem, plunger button, terminals and mounting hardware.
Door jamb switches can be stem, snap-in, or flange mounted. Popular for stepwell and door control in school buses, they are available in a variety of circuitries

All products listed in this section can be found in Section G of the Cole Hersee D-275 CATALOG.

Off with plunger depressed, spring return to On. For energizing two circuits simultaneously. Popular for use in school bus stepwell and door control. 10A at 12V DC.

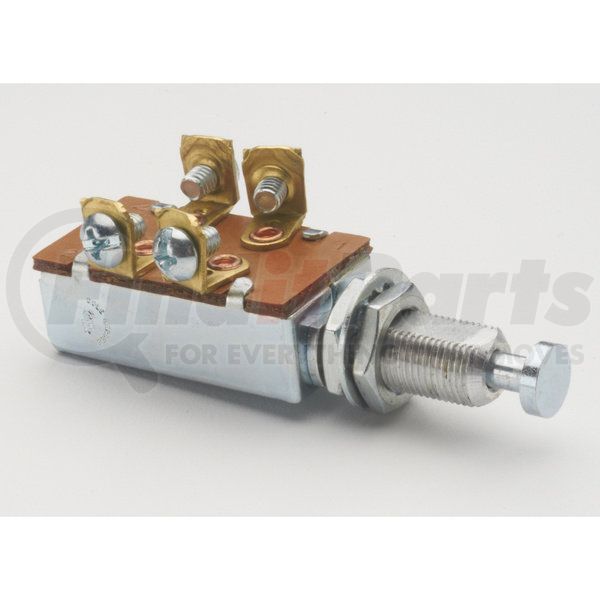

7/8" (22.2mm) long mounting stem, 7/16" (11.1mm) long, two flats on stem for mounting in double-D hole. Four screw terminals. Plunger 19/64" (7.54mm) long. Two hexnuts and one lockwasher.

Description
Details
Terminals
Mounting panel thickness/mounting stem dia.
Applications
Contacts
Button
Face nut
Sealing
Protective cap
Housing
Dimmensions
Weather-resistant
Electrical rating
Similar products
Min qty

Cole Hersee Push-Button Momentary Switch

The Cole Hersee push-button momentary switch is designed to energize two circuits simultaneously. It is recommended for use with step wells and door controls.

Features & Benefits

Switches to 'off ' position when plunger is depressed
Ideal for use in school buses and similar transport vehicles
Mounting, body, and actuator designed for ease of use and long service life
Performance-tested to withstand prolonged exposure to harsh environments

COLE HERSEE 9118-04 Cross Reference

We have 2 alternatives for the 9118-04 by COLE HERSEE:

Cole Hersee® is highly valued in the heavy duty truck industry. It is a leading manufacturer of heavy-duty battery master switches that are widely used as OE equipment by leading heavy-duty vehicle manufacturers. These switches are essential safety components for trucks as they help prevent theft, tampering, electrical fires, and battery drain. Founded in 1924, Cole Hersee is committed to improving vehicle safety by partnering with ECCO Safety Group Australia (ESGA) to establish and implement safety standards for trucks that drive onto mining sites. Its products are also manufactured in its ISO 9001:2008-certified facility and undergo strict testing to ensure safety and reliability.
