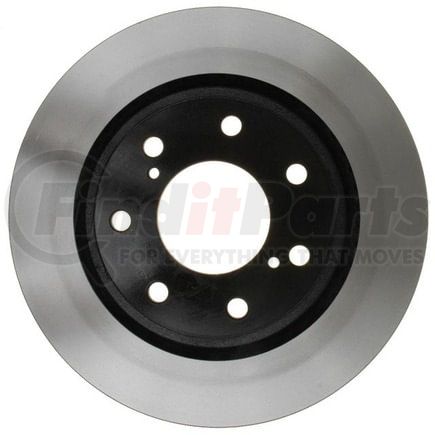

(888) 312-8812 Login SignupRAYBESTOS 680768 Raybestos Specialty - Truck Brake Rotor
$187.02
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 680768 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2014-2010 Ford F-150 Front, 2014-2012 Ford Lobo Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680768 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.545 IN |
| Center Hole Diameter | 90.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.26 IN |
| Discard Thickness | 32 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 9.302 IN |
| Inside Diameter | 236.25 MM |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Mounting Bolt Hole Circle Diameter | 150 MM |
| Mounting Bolt Hole Diameter | 0.618 IN |
| Mounting Bolt Hole Diameter | 15.7 MM |
| Mounting Bolt Hole Quantity | 7 |
| Nominal Thickness | 1.34 IN |
| Nominal Thickness | 34.05 MM |
| Outside Diameter | 13.776 IN |
| Outside Diameter | 349.9 MM |
| Overall Height | 1.949 IN |
| Overall Height | 49.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 7 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352778739 |
RAYBESTOS 680768 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 290860, G09294SD, YH145698, YH290860, YH290860C, YH290860P |
| AUTOZONE | 42278DG, 75003, 75003DG, 75003DL |
| BENDIX | PRT6053, SDR6053 |
| BOSCH | 20010326, 20011514 |
| BRAKEBEST | 20010326, 20011514, 680768, 680768FZN, 680768PER, 680768R, 680768RGS |
| BREMBO | 09.C274.20 |
| Brembo | 09.C274.21 |
| CENTRIC | 120.65134, 120.65134CRY, 121.65134, 126.65134CSL, 126.65134CSR, 126.65134SL, 126.65134SR, 127.65134L, 127.65134R, 128.65134L, 128.65134R, 320.65134 |
| Centric Parts | 120.65134, 120.65134CRY, 121.65134, 126.65134CSL, 126.65134CSR, 126.65134SL, 126.65134SR, 127.65134L, 127.65134R, 128.65134L, 128.65134R, 320.65134 |
| DURA CORP | BR54173, BR900848 |
| DuraGo | 900848, BR900848 |
| FORD | AL3Z1125A, CL3Z1125A, CL3Z1125C |
| MAGMA PRODUCTS | PSR205241 |
| MONROE BRAKES | BD180286 |
| NEOTEK | 1071100GF |
| NEWTEK AUTOMOTIVE | 54173 |
| Newtek Automotive USA | 54173 |
| PROMAX | 14-54173 |
| PRONTO | BR900848 |
| QUALIS | 42275 |
| UAP | R65134 |
| Ultra Brake | 54451 |
| WAGNER | BD180286E |
| WAGNER BRAKE | BD180286, BD180286E |
| WINHERE | 6621216 |
| WORLDPAC | 1407-290860 |
| WORLDPARTS | WS1-154173 |
RAYBESTOS 680768 Fits Vehicles
- Ford Lobo (2012-2014)
- Ford F-150 (2010-2014)
RAYBESTOS 680768 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 680768 Questions & Answers
No questions yet
Be the first to ask a question about this product!
