RAYBESTOS 980697 Part Description
Manufacturer
Product Description

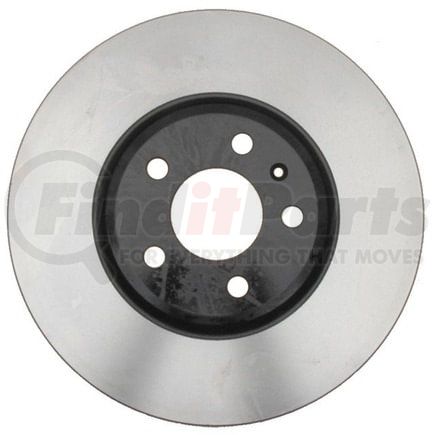

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2011-2009 Audi A4 Quattro Front, 2011-2009 Audi Q5 Front, 2011-2009 Audi A4 Front, 2011-2008 Audi A5 Quattro Front, 2011-2010 Audi A5 Front, 2013 Audi A4 allroad Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980697 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.44 IN |
| Inside Diameter | 189 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 0.595 IN |
| Mounting Bolt Hole Diameter | 15.1 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.177 IN |
| Nominal Thickness | 29.9 MM |
| Outside Diameter | 12.591 IN |
| Outside Diameter | 319.8 MM |
| Overall Height | 2.047 IN |
| Overall Height | 52 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352838150 |
RAYBESTOS 980697 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | N1000306412ZIC, YH200854, YH200854C, YH200854P |
| ATE BRAKE PRODUCTS | SP30193, 430193 |
| AUDI | 8K0615301A |
| AUTOXTRA | AX900806 |
| AUTOZONE | 45600, 45600DG |
| BOSCH | 14011490 |
| BRAKEBEST | 14011490, 980697, 980697FZN, 980697R, 980697RGS |
| Brembo | 09.A758.1X, 09.A758.11, 09.A758.1S |
| CENTRIC | 120.33123, 121.33123, 125.33123, 125.33123CRY, 126.33123CSL, 126.33123CSR, 126.33123SL, 126.33123SR, 127.33123CL, 127.33123CR, 127.33123L, 127.33123R, 128.33123CL, 128.33123CR, 128.33123L, 128.33123R, 320.33123, 320.33123C, 320.33123H, 321.33123 |
| Centric Parts | 120.33123, 121.33123, 125.33123, 125.33123CRY, 126.33123CSL, 126.33123CSR, 126.33123SL, 126.33123SR, 127.33123CL, 127.33123CR, 127.33123L, 127.33123R, 128.33123CL, 128.33123CR, 128.33123L, 128.33123R, 320.33123, 320.33123C, 320.33123H, 321.33123 |
| DURA CORP | BR34406, BR900806 |
| DuraGo | 900806, BR900806 |
| Dynamic Friction Company | 604-73057 |
| MAGMA PRODUCTS | PSR585110 |
| NAPA BRAKES | SDK6517 |
| NEOTEK | 106066GF |
| NEWTEK AUTOMOTIVE | 34406 |
| Newtek Automotive USA | 34406 |
| PAGID | 355113912 |
| PAGID Racing | 355113912 |
| POWERSTOP | EBR838EVC |
| PROMAX | 14-34406 |
| PRONTO | BR900806 |
| Qualis | 45459 |
| TRW | 6015, DF7821 |
| TopNotch | TN980697GEO |
| UAP | R33123 |
| VAICO | V1080089 |
| WAGNER BRAKE | BD180104 |
| WINHERE | 6620724 |
| WORLDPAC | 1407-76155, 1427-731823 |
| Wagner Brake | BD180104E |
RAYBESTOS 980697 Fits Vehicles
- Audi A4 allroad (2013)
- Audi A5 (2008-2011)
- Audi Q5 (2009-2012)
- Audi A4 Quattro (2009-2012)
- Audi A4 (2009-2011)
- Audi A5 Quattro (2008-2011)
