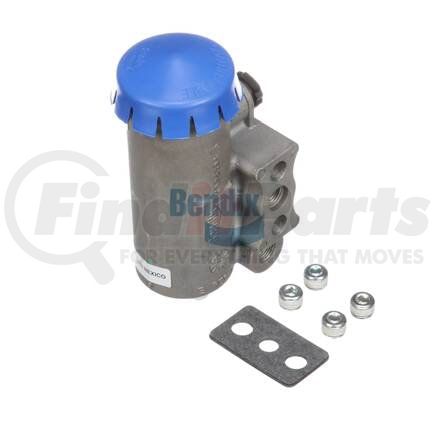

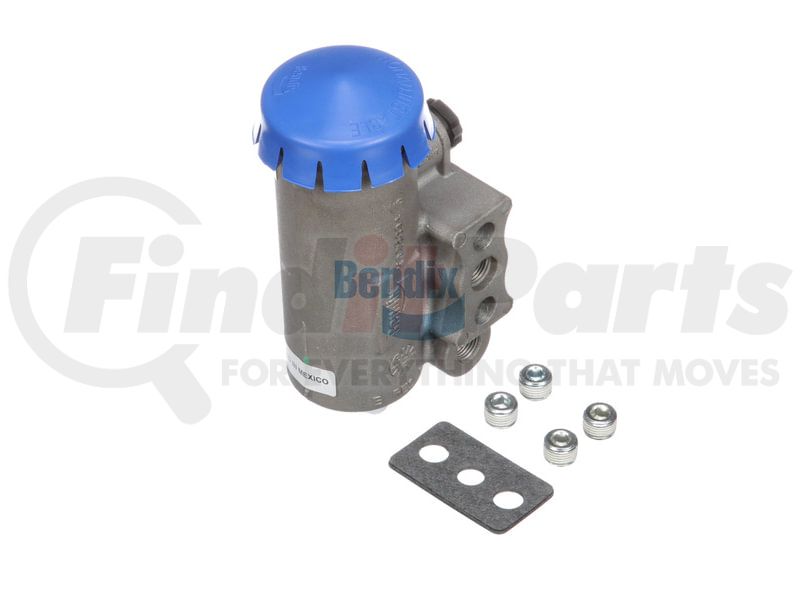

(888) 312-8812 Login SignupBENDIX K025306 Governor Valve
Tap to view 1 more
MSRP: $195.44
$13549
Save $59.95
Limited availability at this price!
In Stock
Get as soon as Tuesday, Oct 27
BENDIX K025306 Part Description
Manufacturer
Product Description
Governor Valve
Features & Benefits
- Non-adjustable governor uses preset pressure points to manage compressor loading
- Cycles the compressor between pumping and unloaded operation as reservoir pressure changes
- Reservoir signal provides the pressure input used by the governor control mechanism
- Requires no field pressure adjustment after installation on a matching air system
Bendix Air Brake Governor
When your compressor system needs a fixed 105 PSI cut-in and 125 PSI cut-out range, the Bendix Air Brake Governor maintains that preset pressure band accurately. Featuring factory-calibrated settings, this non-adjustable governor eliminates the need for manual field tuning after installation. Its 1/8-27 NPT reservoir, unloader, and exhaust ports operate reliably across a broad -40°F to 250°F temperature range. The Bendix K025306 provides an exact-fit replacement for systems designed specifically around fixed pressure parameters.
BENDIX K025306 Specifications
Product Attributes
| Adjustable | No |
| Cut-In Pressure | 105 PSI |
| Cut-Out Pressure | 125 PSI |
| Exhaust Port | 1/8-27 NPT (Breather Valve) |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 250 AdegF (121 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | A~ .338 IN (2x) |
| Pressure Range | Not applicable to this part |
| Reservoir Port 1 | 1/8-27 NPT |
| Reservoir Port 2 | 1/8-27 NPT |
| Reservoir Port 3 | 1/8-27 NPT |
| Unloader Port 1 | 1/8-27 NPT |
| Unloader Port 2 | 1/8-27 NPT |
| Unloader Port 3 | 1/8-27 NPT |
| Weather Resistant | No |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078223413 |
| VMRS Code | 013009070 |
BENDIX K025306 Cross References
| Brand | Part Number |
|---|---|
| BWK025306 | |
| N/A | 280915 |
