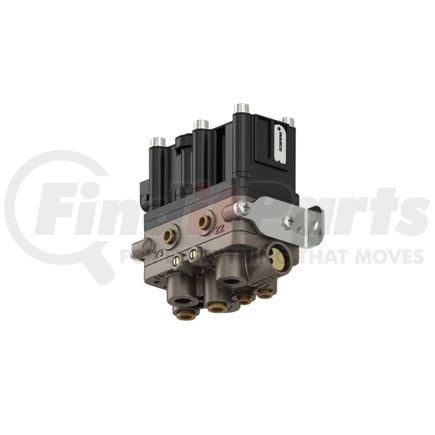

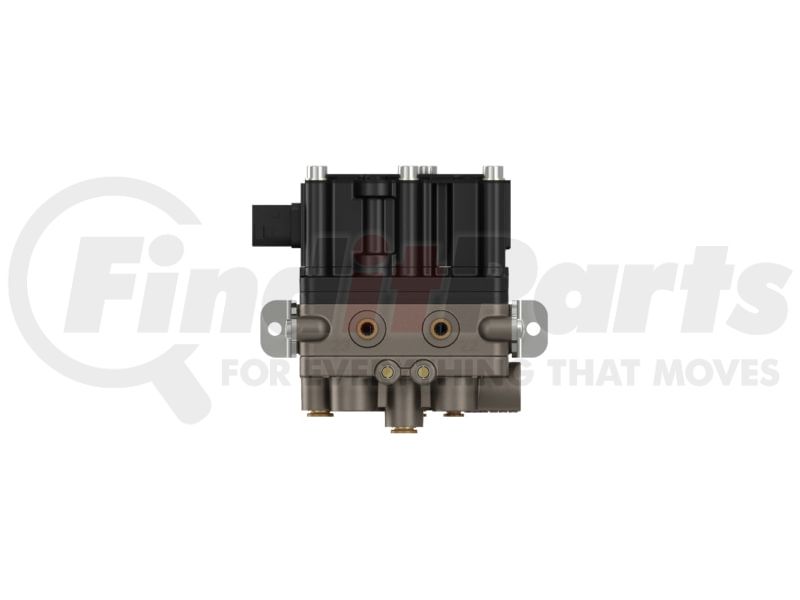

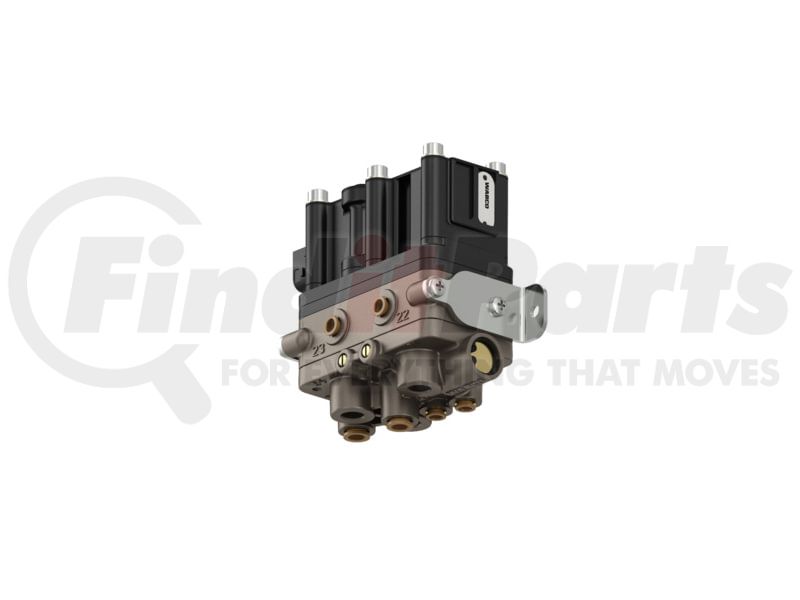

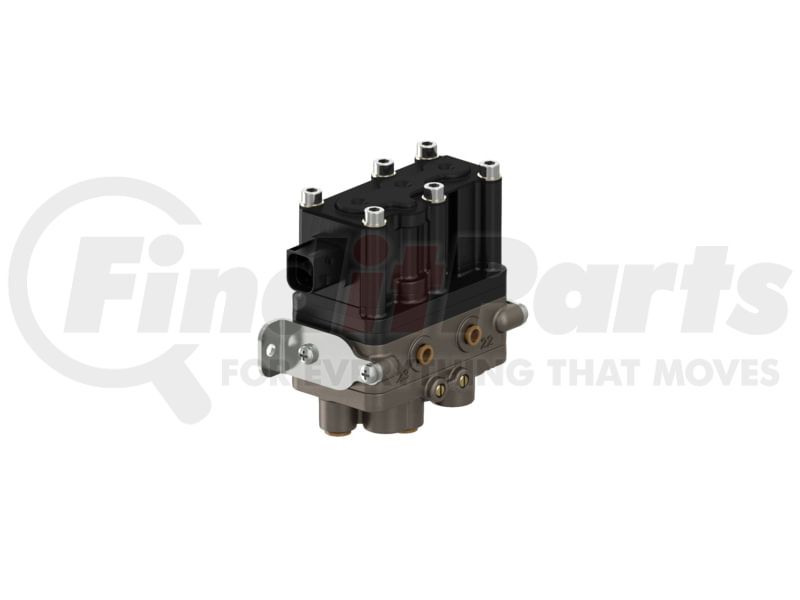

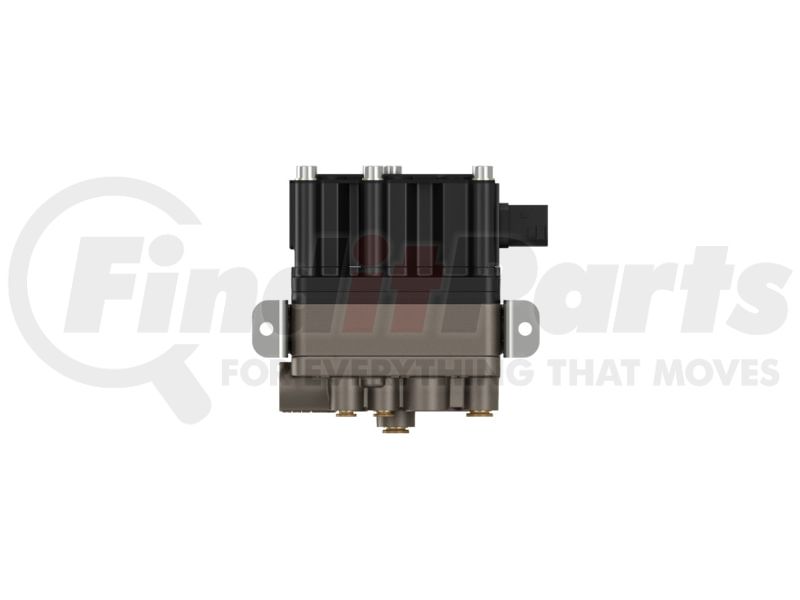

WABCO 4726010010 - Door Control Valve - MTS2 3x 3/2-Way
$61199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
PNEUMATIC VALVE: DOOR CONTROL
Product Attributes
| Calculated Volume (dm³) | 1.2005 |
| Size | 129 x 141 x 66 |
| Max. operating pressure | 145.0 psi |
| Voltage | 24 V |
| Weight | 2.8814 |
| Rated current | 320 mA |
| Type | 3x 3/2-Way |
| Protection class | IP 6K |
| Distance Between Holes | 125 mm |
| Port thread 21 | M12 |
| Port thread 22 | Quick Connection 6 x 1 |
| Port thread 11 | Quick Connection 8 x 1 |
| Temperature Range | -25°C to 80°C |
| Port thread 3 | Quick Connection 8 x 1 |
| Nominal Diameter | 4.0 mm |
| Mounting | 2x ¯ 6.5 mm |
| Electrical connection | 1x HDSCS 4 x 2.8 Code A |
| Port Thread 43 | M12 |
| Port thread 24 | M12 |
| Port Thread 41 | Quick Connection 6 x 1 |
| Port thread 23 | Quick Connection 6 x 1 |
| Port Thread 42 | Quick Connection 6 x 1 |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
