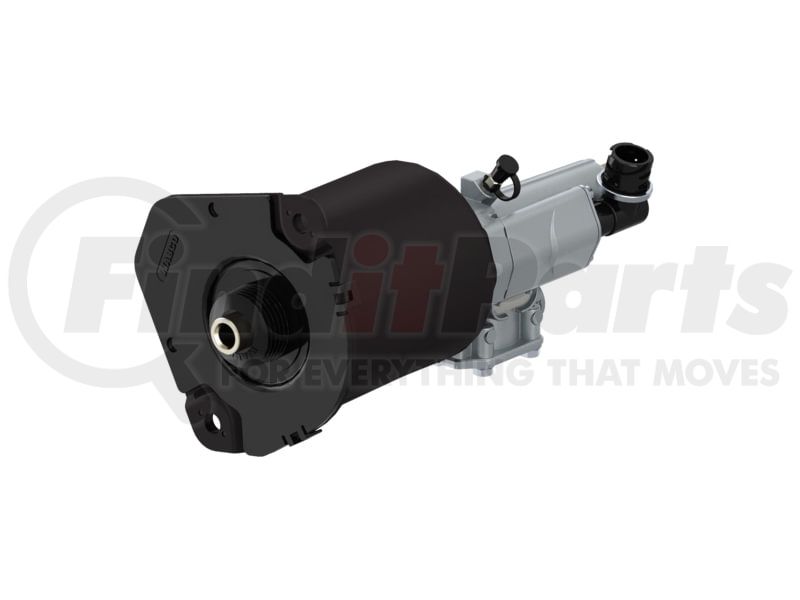

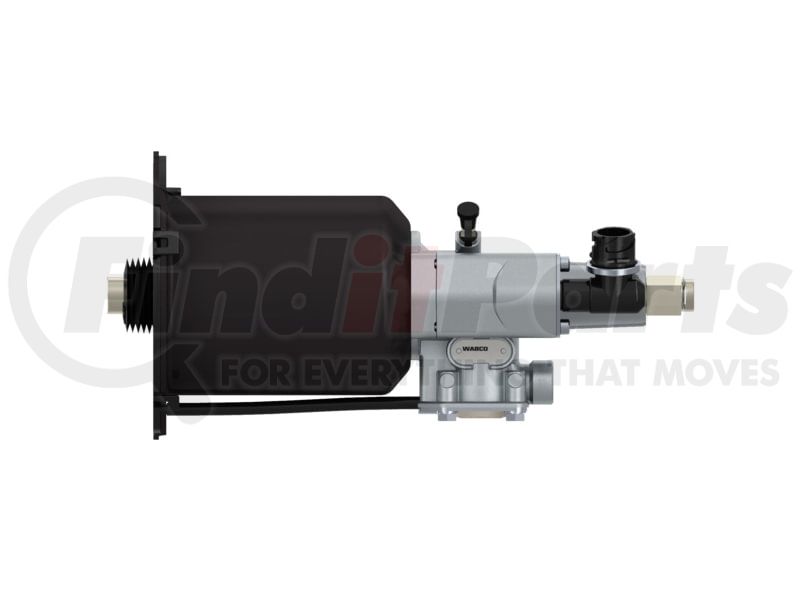

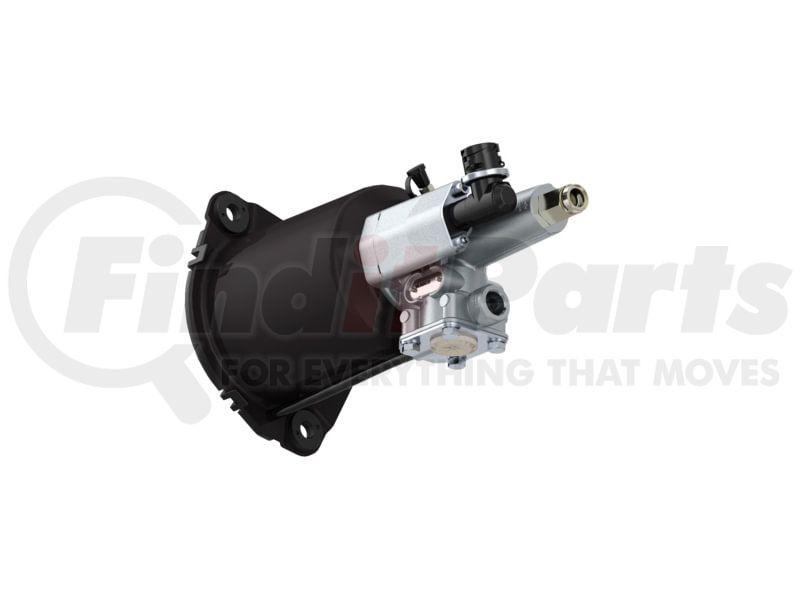

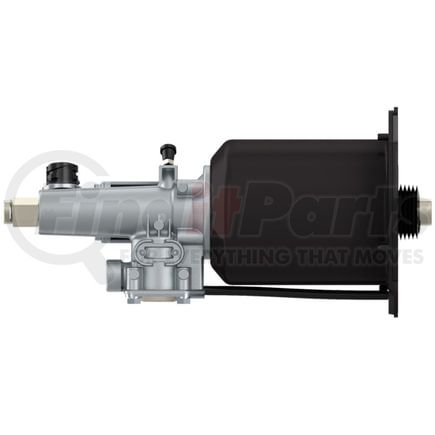

WABCO 9700514317 - Clutch Servo - Fit for Various Applications
$51299
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
COUPLING AMPLIFIER
Product Attributes
| Distance Between Holes | 110 mm |
| Voltage | 12 V |
| Max. operating pressure | 145.04 psi |
| Mounting | 2x Ø 11.0 mm |
| Size | 400 x 141 x 142 |
| Temperature Range | -20°C to +80°C |
| Weight | 6.9071 |
| Calculated Volume (dm³) | 8.0088 |
| Stroke | 85.0 mm |
| Exchange Unit For | 970 051 431 0 |
| Electrical connection | Bayonet DIN 72585 - A1 |
| Length | 290 mm |
| Port thread 31 | Flap Exhaust |
| Medium | Brake fluid SAE J 1703 |
| Port Thread 1-4 | M14 x 1.5 |
| Port thread 32 | Ø 8.0 mm |
| Port thread 11 | M16 x 1.5 JED - 464 |
| Push-rod thread | Hole Ø12.1 mm |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
