(888) 312-8812 Login SignupWIX Spin-On Fuel/Water Separator Filter
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

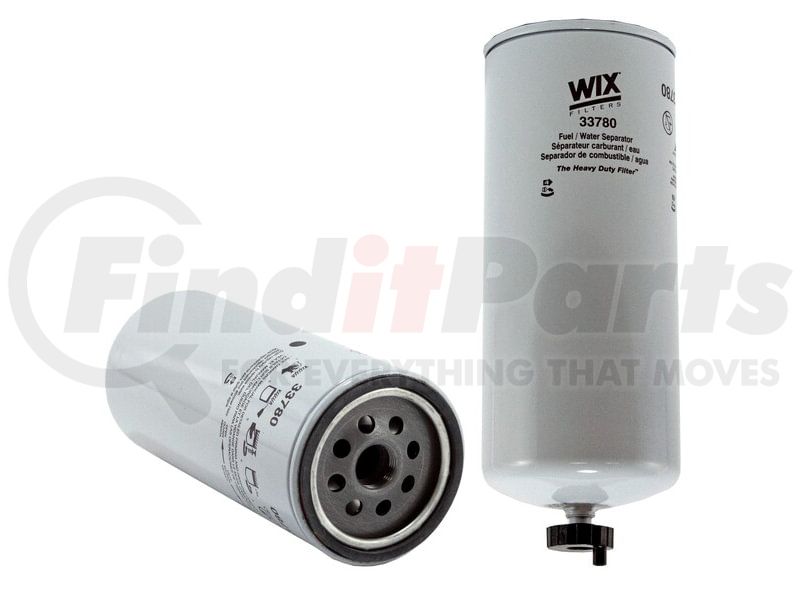

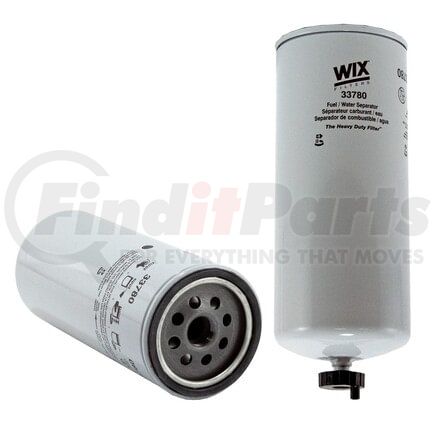

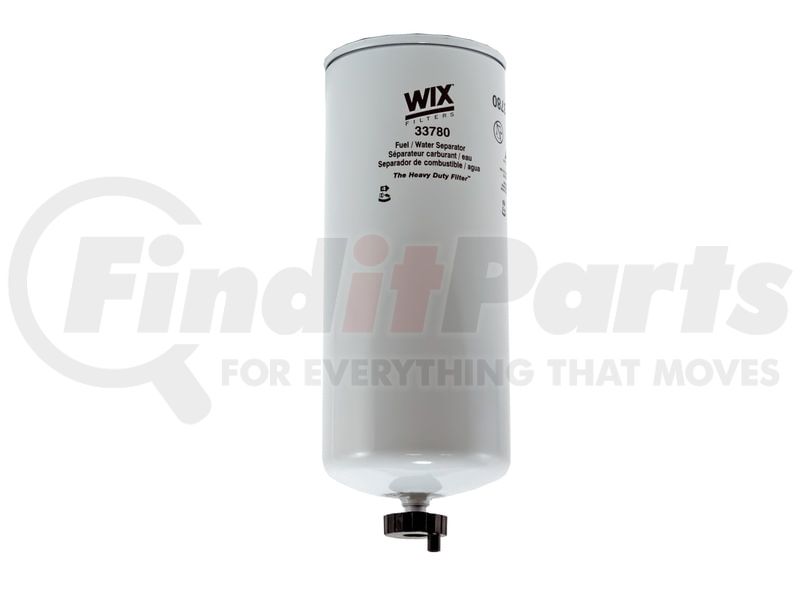

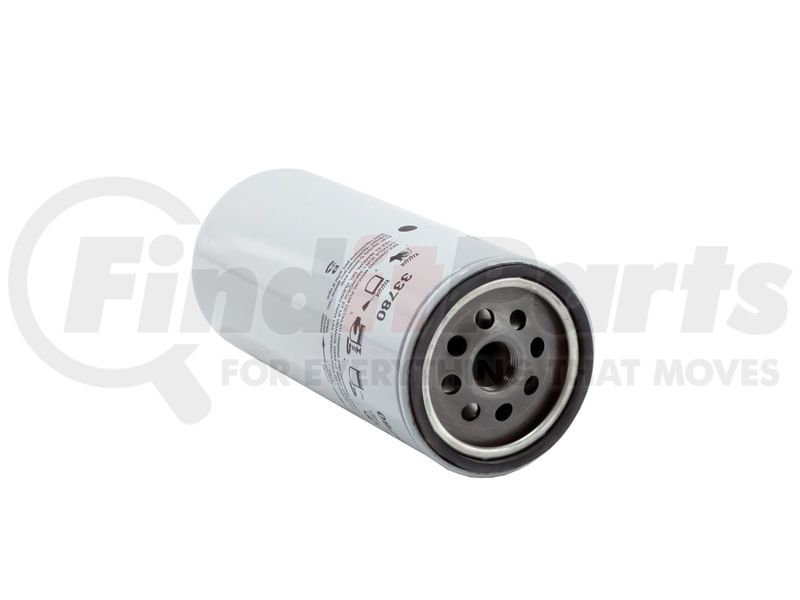

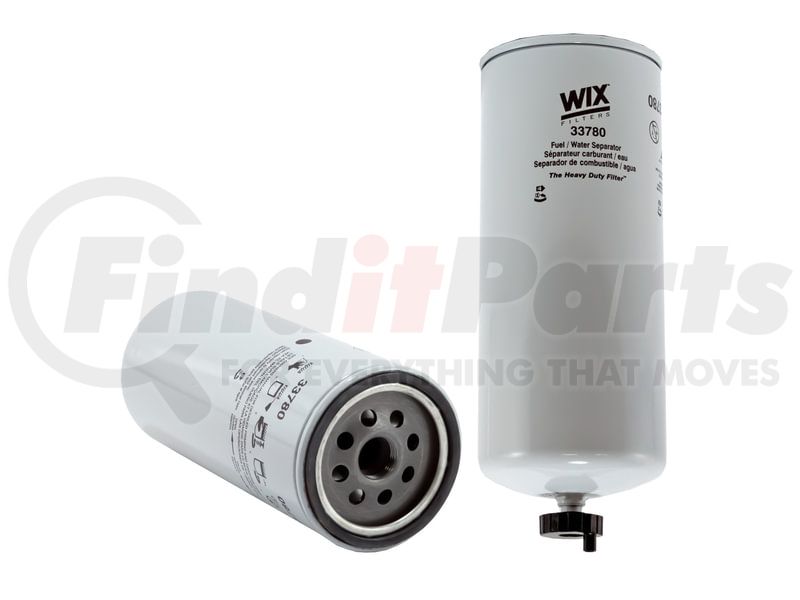

Separate water from diesel on heavy equipment using the WIX Filters Fuel Water Separator Filter, a tall spin-on canister built for large engines. While the water stage works, enhanced cellulose media rated at 13 microns catches fine particles. The WIX Filters 33780 sends all of the fuel through both stages in a single pass. Collected water drains out through the base drain cock between filter changes, so it does not sit in the canister.
| Class | HC |
| Media Material | Enhanced Cellulose |
| Height | 11.153 IN |
| Burst Pressure | 200 psi |
| Flow Rate | 12-15 GPM GPM |
| Thread Size | 1-14 IN |
| Drain Cock | 1 |
| Duty Type | HD |
| Inner Diameter Top | Closed |
| Micron | 13.00 Micron |
| Outer Diameter Top | 4.282 in |
| Style | Spin-On Fuel/Water Separator F |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00765809337800 |
| Brand | Part Number |
|---|---|
| AG CHEM | AG723615 |
| AGCO | AG121851 |
| ALLIANCE | ABPN10GFS19591 |
| ATLAS | 6050719 |
| ATLAS-COPCO | 3222309422 |
| BALDWIN | BF1260, BF1265, BF1283 |
| CARQUEST | 86780 |
| CARQUEST HEAVY DUTY | 96282, 96538 |
| CATERPILLAR | 1290373, 1335671, 1335673, 5134490 |
| CLAAS | 3635130 |
| DONALDSON | P551025, P551076, P551745, P551746, P551858 |
| FLEETGUARD | FS1071, FS19590, FS19934, FS20162 |
| FRAM | PS8450, PS9263 |
| GROVE | 03138976 |
| HASTINGS FILTERS | BF1260, BF1265, BF1283, FF1181, FF1251 |
| ISUZU | 898021936, 8980219360 |
| JOHN DEERE | RE502203 |
| KRALINATOR | FS3780 |
| LUBER-FINER | LFF7415 |
| LUBERFINER | LFF7415, LFF7415-1, LFF8707-1 |
| MANITOWOC | A026650 |
| MORBARK | 29249325 |
| NAPA GOLD | 3780 |
| NEW HOLLAND | 87336446 |
| PREMIUM GUARD | DW30133, DW30263 |
| RACOR | R120FG03, R120S, R120T, S120FG02 |
| SAKURA | SFC-5504-10 |
| WIRTGEN | 162055 |
| WIX | 33780 |
| WIX FILTERS | WIX FILTERS, 33780 |
| WOODGATE | WGFS1293 |
Be the first to review this product!
Since its establishment in 1939, the name WIX Filters® has been synonymous with a strong tradition of excellence. This brand opened its door to business in an old cotton mill in Gastonia to provide its customers with premium-quality filters that exceed their performance demands. Within 15 years since it was founded, WIX Filters have revolutionized the automotive filtration system by introducing and patenting the spin-on oil filter design called “twist of the wrist,” which quickly became the industry standard. The eight decades of growth and innovation made WIX Filters a global leader in filtration, with over 12,000 unique product numbers covering a wide range of fuel, oil, air, coolant, cabin air, and transmission filters for domestic and foreign vehicles and industrial applications and more than 8,000 part numbers for fluid power systems and hydraulic applications.
