RAYBESTOS 9812 Part Description
Manufacturer
Product Description

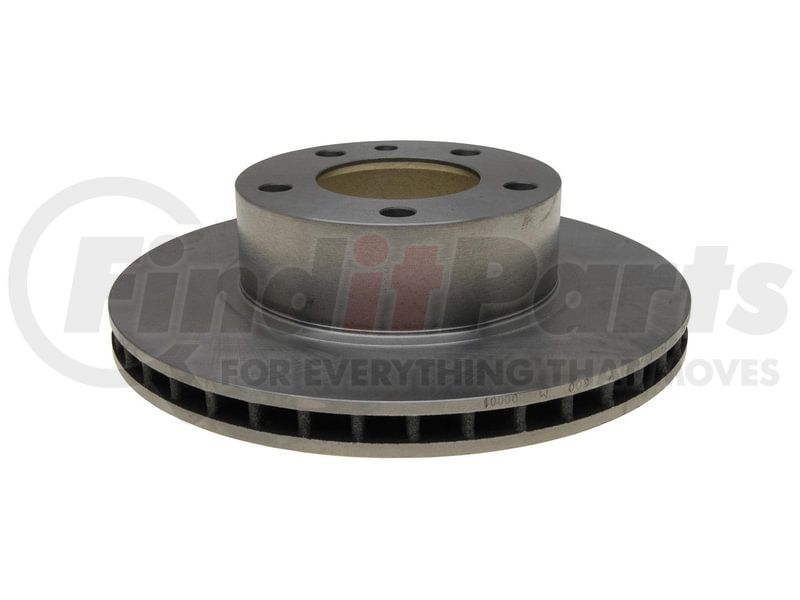

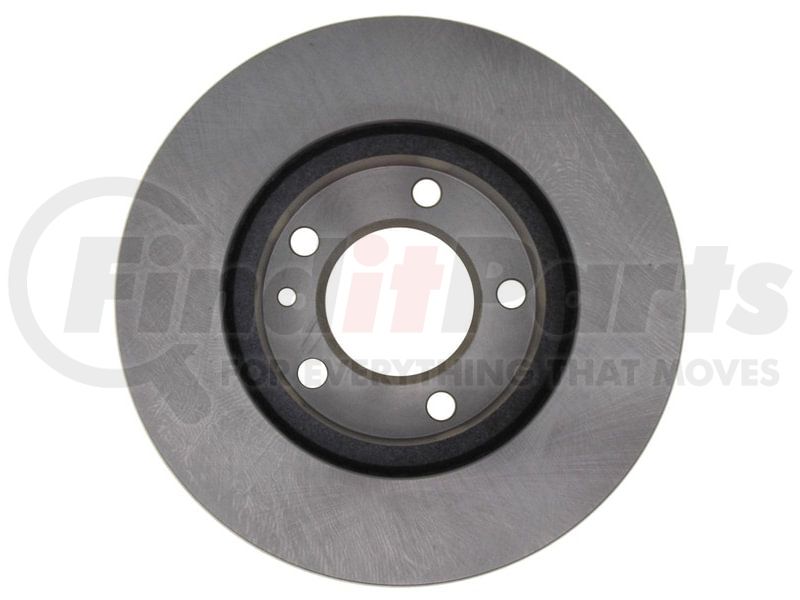

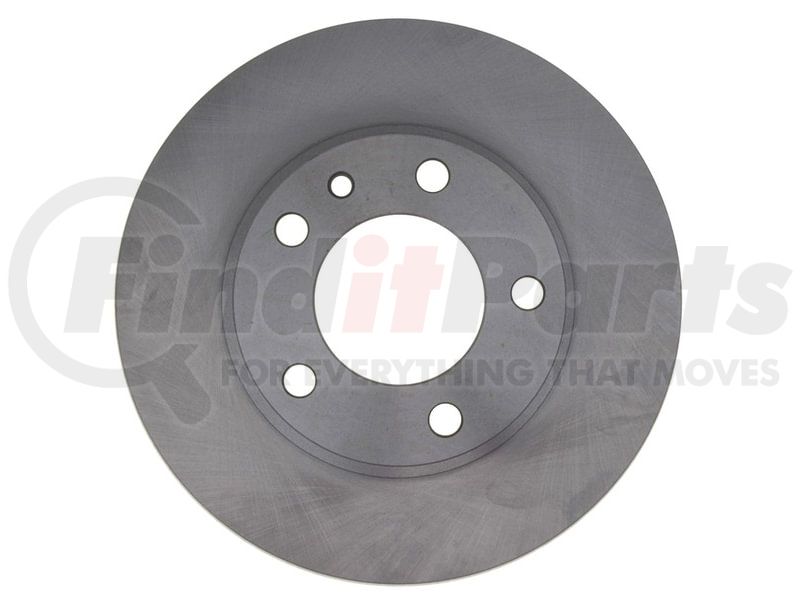

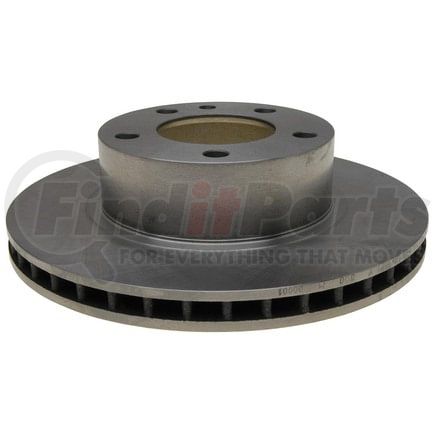

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 9812 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.113 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.945 IN |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Diameter | 0.591 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.975 IN |
| Outside Diameter | 11.09 IN |
| Overall Height | 3.005 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 79.05 MM |
| Discard Thickness | 24 MM |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 15 MM |
| Nominal Thickness | 24.75 MM |
| Outside Diameter | 281.7 MM |
| Overall Height | 76.35 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999080219 |
RAYBESTOS 9812 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 425104 |
| Advance Auto Parts | 141349, 832082, YH141349, YH141349C |
| American Remanufactured | 789-62013, 89-62013 |
| AutoZone | 3407, 3407DG |
| Autospecialty | EBR203, EBR203E |
| Autoxtra | 61899, AX3407 |
| BMW | 34111153230, 34111156143 |
| BREMBO | 09558910 |
| Beck/Arnley | 083-2303 |
| Bendix | 141349 |
| Bosch | 15010081 |
| Brake Headquarters | BR05137 |
| BrakeBest | 15010081, 9812, 9812R, 9812RGS, BD61899 |
| Brembo | 09.5589.10, 25352 |
| CENTRIC | 121.34013 |
| CEW | 1131204 |
| California Drum & Rotor | 61899 |
| Casting Numbers | 210906-C, 326074 |
| Centric Parts | 120.34013, 121.34013, 125.34013, 126.34013SL, 126.34013SR, 127.34013L, 127.34013R, 128.34013L, 128.34013R |
| Century | 9401 |
| Continental-ContiTech | CW25104 |
| Delphi | RB523 |
| Dura Corp | BR3407 |
| DuraGo | BR3407 |
| EIS Brakes | D17506 |
| Eurorotor | BM708 |
| GREN | 400302 |
| Girling | GR279 |
| ITM Engine Components | 1602309 |
| Interbrakes | BW181V |
| MCI | 3825, 3825Q |
| Midas | BR1487 |
| Mighty Distributing System | 3407 |
| Newtek Automotive USA | 3407 |
| PRONTO | BR3407 |
| Qualis | 3407 |
| Qualitee International | 64-12-110 |
| Quality Brand | 3407 |
| Quinton Hazell | BDC3641 |
| Rockhill | 3407 |
| TruStar | 412110, R12110 |
| UAP | 3407 |
| Universal | 111070 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50524 |
| Vera | 3405540 |
| WAGNER | BD61899 |
| Wagner Brake | BD61899 |
