RAYBESTOS 96507 Part Description
Manufacturer
Product Description

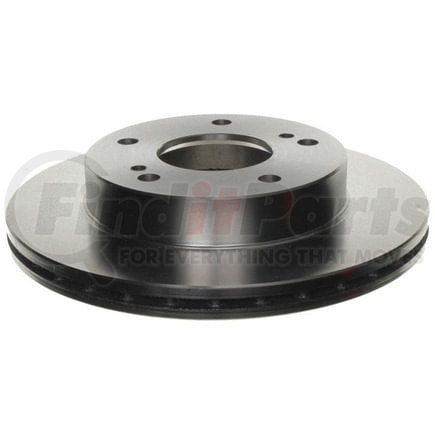

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 96507 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.678 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 4.5 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.785 IN |
| Outside Diameter | 9.9 IN |
| Overall Height | 1.945 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 68 MM |
| Discard Thickness | 18 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 114.3 MM |
| Nominal Thickness | 19.95 MM |
| Outside Diameter | 251.45 MM |
| Overall Height | 49.4 MM |
Additional Information
| Country of Origin (Primary) | CA |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999793713 |
RAYBESTOS 96507 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 145039, YH145039 |
| American Remanufactured | 789-04057, 89-04057 |
| AutoZone | 31155, 31155DG |
| Autospecialty | JBR559, JBR559E |
| Autoxtra | 125547, 8096507, AX31155 |
| Beck/Arnley | 080-2631, 083-2631 |
| Bendix | 145039 |
| Bosch | 40011076 |
| Brake Headquarters | BR04137 |
| BrakeBest | 40011076, 96507, 96507R, 96507RGS, BD125547 |
| Brembo | 09.5281.20, 25318 |
| CENTRIC | 121.42057 |
| California Drum & Rotor | 125547 |
| Casting Numbers | 210615-C, 325861 |
| Centric Parts | 120.42057, 121.42057, 126.42057SL, 126.42057SR, 127.42057L, 127.42057R, 128.42057L, 128.42057R |
| Continental-ContiTech | CW20721, CW20725 |
| Delphi | RB381 |
| Dura Corp | BR31155 |
| DuraGo | BR31155 |
| Eurorotor | NI466 |
| GREN | 36902 |
| Midas | BR1942 |
| Mighty Distributing System | 31155 |
| Newtek Automotive USA | 31155 |
| Nissan | 4020667F00 |
| PRONTO | BR31155 |
| Promax | 14-31155 |
| Qualis | 31155 |
| Qualitee International | 64-76-800 |
| Quality Brand | 31155, Q060 |
| Quinton Hazell | BDC5331 |
| Standard Rotors and Drums | 31155 |
| TruStar | 476800, R76800 |
| UAP | 31155 |
| Universal | 109000 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50951 |
| WAGNER | BD125547 |
| WORLDPAC | 1407-78239 |
| Wagner Brake | BD125547 |
| Winhere | 442241, YH2241 |
