RAYBESTOS 96310 Part Description
Manufacturer
Product Description

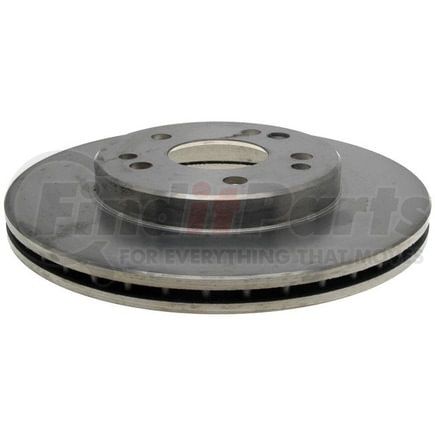

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 96310 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.15 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.764 IN |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 0.48 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.86 IN |
| Outside Diameter | 11.25 IN |
| Overall Height | 2.36 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 80 MM |
| Discard Thickness | 19.4 MM |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 12.2 MM |
| Nominal Thickness | 21.85 MM |
| Outside Diameter | 285.75 MM |
| Overall Height | 59.95 MM |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999545039 |
RAYBESTOS 96310 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 422116, SP00069 |
| Advance Auto Parts | 141678, YH141517 |
| American Remanufactured | 89-74006 |
| AutoZone | 34041, 34041DG |
| Autospecialty | EBR038, EBR038E |
| Autoxtra | 61927 |
| Beck/Arnley | 083-2334 |
| Bendix | 141678 |
| Brake Headquarters | BR07249 |
| BrakeBest | 96310, 96310R, 96310RGS |
| Brembo | 09.5626.10, 25359 |
| CENTRIC | 121.35006 |
| California Drum & Rotor | 34041 |
| Casting Numbers | 210999-C, 326119 |
| Centric Parts | 120.35006, 121.35006, 125.35006 |
| Delphi | RB329 |
| Dura Corp | BR34041 |
| DuraGo | BR34041 |
| Eurorotor | ME169 |
| GREN | 431402 |
| Girling | GR257 |
| Interbrakes | MR171V |
| Mercedes-Benz | 1264200272 |
| Mighty Distributing System | 34041 |
| Newtek Automotive USA | 34041 |
| Pilenga | V189 |
| Qualis | 34041 |
| Qualitee International | 64-13-150 |
| Quinton Hazell | BDC3532 |
| TruStar | 413150, R13150 |
| UAP | 34041 |
| Universal | 110099 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50829 |
| Winhere | YH2481 |
