RAYBESTOS 96071 Part Description
Manufacturer
Product Description

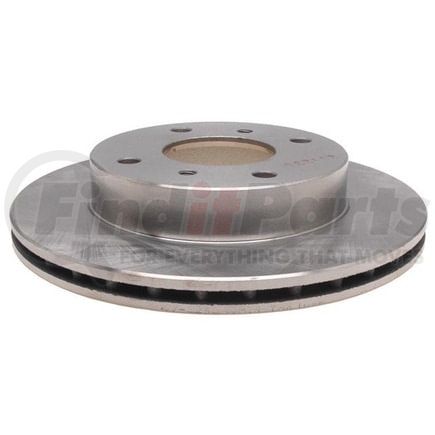

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 96071 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.678 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.502 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.785 IN |
| Outside Diameter | 9.9 IN |
| Overall Height | 1.945 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 68 MM |
| Discard Thickness | 18 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 12.75 MM |
| Nominal Thickness | 19.95 MM |
| Outside Diameter | 251.45 MM |
| Overall Height | 49.4 MM |
Additional Information
| Country of Origin (Primary) | CA |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999234179 |
RAYBESTOS 96071 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141443, YH141443, YH141443C |
| American Remanufactured | 789-04040, 89-04040 |
| AutoZone | 3215, 3215B, 3215DG, DL3215 |
| Autopart International | 78852 |
| Autospecialty | JBR502, JBR502E |
| Autoxtra | 61930, 8096071, AX3215, AX3218 |
| Beck/Arnley | 080-2294, 083-2294 |
| Bendix | 141443 |
| Brake Headquarters | BR04082 |
| Brake Pro | 4618577 |
| BrakeBest | 81-61930, 96071, 96071R, 96071RGS, BD61930 |
| Brembo | 09.5281.10, 25317 |
| CENTRIC | 125.42040, 121.42040 |
| California Drum & Rotor | 61930 |
| Casting Numbers | 32151, 325359 |
| Centric Parts | 120.42040, 121.42040, 125.42040, 126.42040CSL, 126.42040CSR, 126.42040SL, 126.42040SR, 127.42040L, 127.42040R, 128.42040CL, 128.42040CR, 128.42040L, 128.42040R |
| Century | 9420 |
| Delphi | RB187 |
| Dura Corp | BR3215 |
| DuraGo | BR3215 |
| EIS Brakes | D17522 |
| Eurorotor | NI402 |
| GREN | 32702 |
| Guardian | 52-61930 |
| ITM Engine Components | 1600559 |
| Interbrakes | NS451V |
| MCI | 3954 |
| Midas | BR1612 |
| Mighty Distributing System | 3215 |
| Monroe Brakes | BD61930 |
| Newtek Automotive USA | 3215 |
| Nissan | 4020640F01, 4020640F02, 4020640F03 |
| PRONTO | BR3215 |
| Parts Master | P61930 |
| Qualis | 3215 |
| Qualitee International | 64-76-560 |
| Quality Brand | 3215 |
| Roadmates | 526642 |
| Rockhill | 3215 |
| Sears | 18105 |
| Standard Rotors and Drums | 3215 |
| TruStar | 476560, R76560 |
| UAP | 3215 |
| Universal | 109150 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50471 |
| Vera | 3405714 |
| WAGNER | BD61930 |
| WORLDPAC | 1427-732157 |
| Wagner Brake | BD61930, SB96071 |
| Winhere | YH2109 |
