RAYBESTOS 9263 Part Description
Manufacturer
Product Description

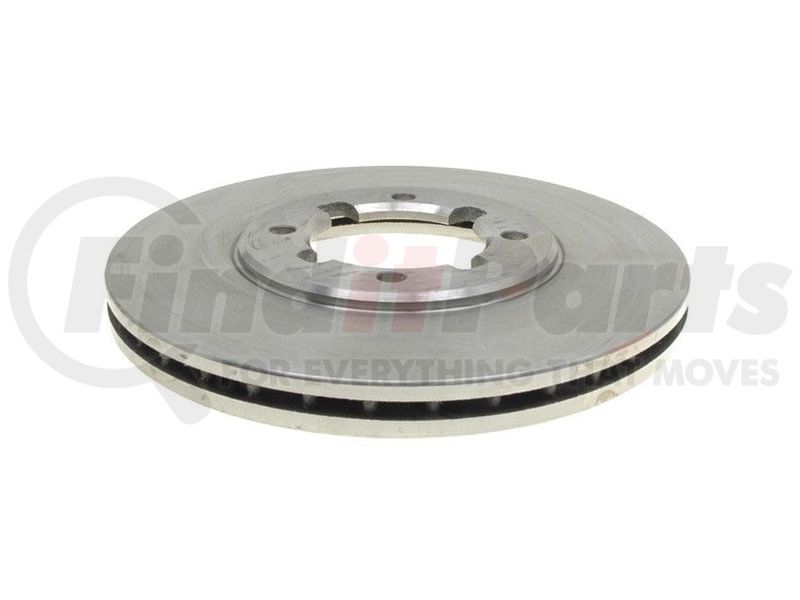

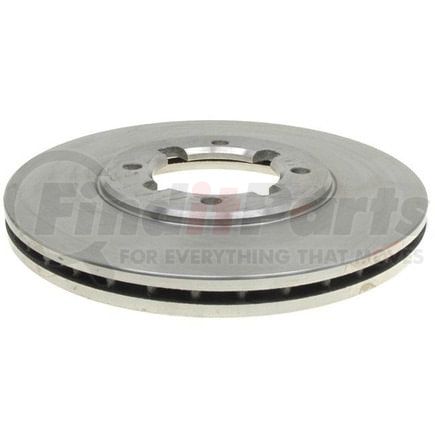

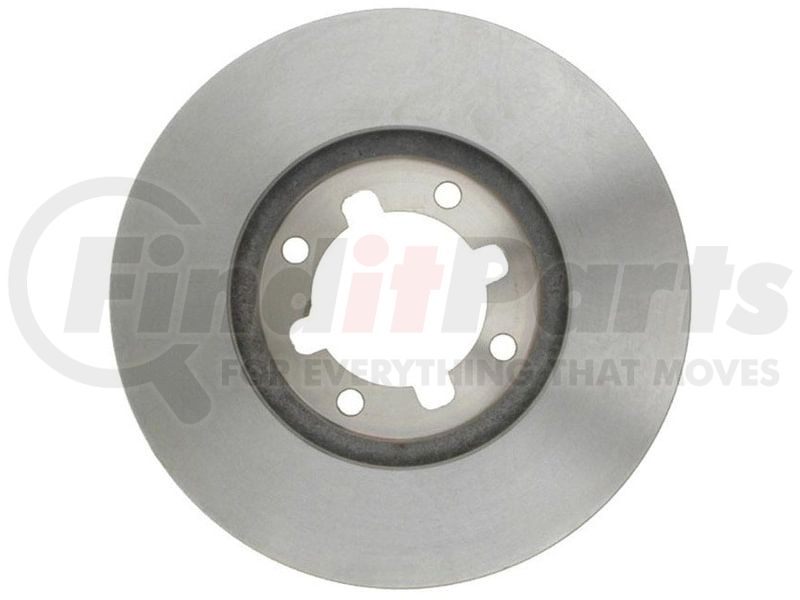

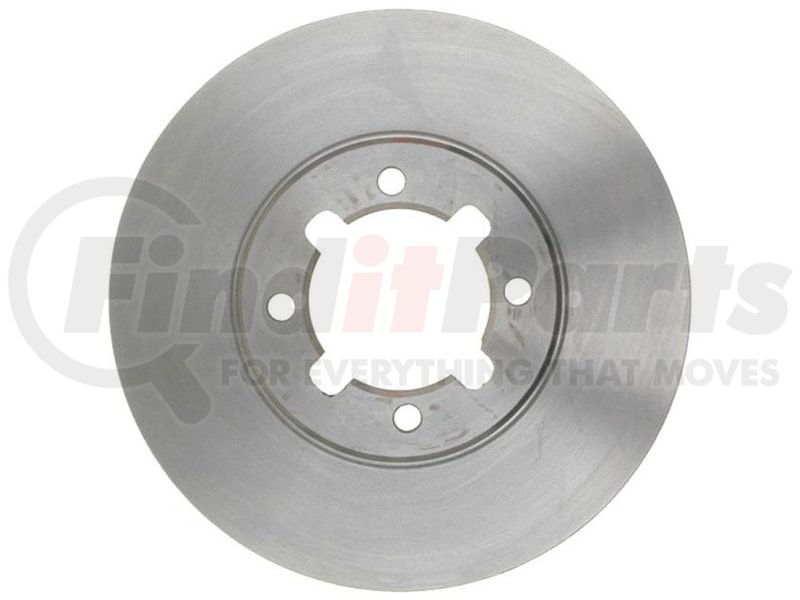

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 9263 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.994 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.827 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.875 IN |
| Outside Diameter | 9.76 IN |
| Overall Height | 1.11 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 76.05 MM |
| Discard Thickness | 21 MM |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 100 MM |
| Nominal Thickness | 22.2 MM |
| Outside Diameter | 247.9 MM |
| Overall Height | 28.2 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999080035 |
RAYBESTOS 9263 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141296, YH141296 |
| American Remanufactured | 789-22024, 89-22024 |
| AutoZone | 3230, 3230DG |
| Autospecialty | JBR183, JBR183E |
| Axxis | 085-6560 |
| Beck/Arnley | 080-2070, 083-2070 |
| Bendix | 141296 |
| Brake Headquarters | BR06190 |
| Brake Pro | 4619263 |
| BrakeBest | 9263, 9263R, 9263RGS |
| Brembo | 09.5668.10 |
| CENTRIC | 121.44025 |
| California Drum & Rotor | 60700 |
| Casting Numbers | 210904-C, 32301, 325698 |
| Centric Parts | 120.44025, 121.44025, 126.44025SL, 126.44025SR |
| Century | 9263 |
| Dura Corp | BR3230 |
| DuraGo | BR3230 |
| EIS Brakes | D9263 |
| Eurorotor | TO620 |
| Fratelli Poletti | 93YF-A |
| GREN | 12302 |
| Girling | GR689 |
| ITM Engine Components | 1601521 |
| Interbrakes | TY631V |
| Midas | BR1400 |
| Mighty Distributing System | 3230 |
| Mountain Off-Road Enterprises | TR35 |
| Newtek Automotive USA | 3230 |
| Qualis | 3230 |
| Qualitee International | 64-79-350 |
| Quality Brand | 3230 |
| Quinton Hazell | BDC3561 |
| Roadmates | 526187 |
| Rockhill | 3230 |
| Sears | 1754 |
| Standard Rotors and Drums | 3230 |
| Toyota | 4351222060 |
| TruStar | 479350, R79350 |
| UAP | 3230 |
| Universal | 107300 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50435 |
| Vera | 3402357, 3402375 |
| Wagner Brake | BD60700 |
| Winhere | YH2116 |
