RAYBESTOS 9173 Part Description
Manufacturer
Product Description

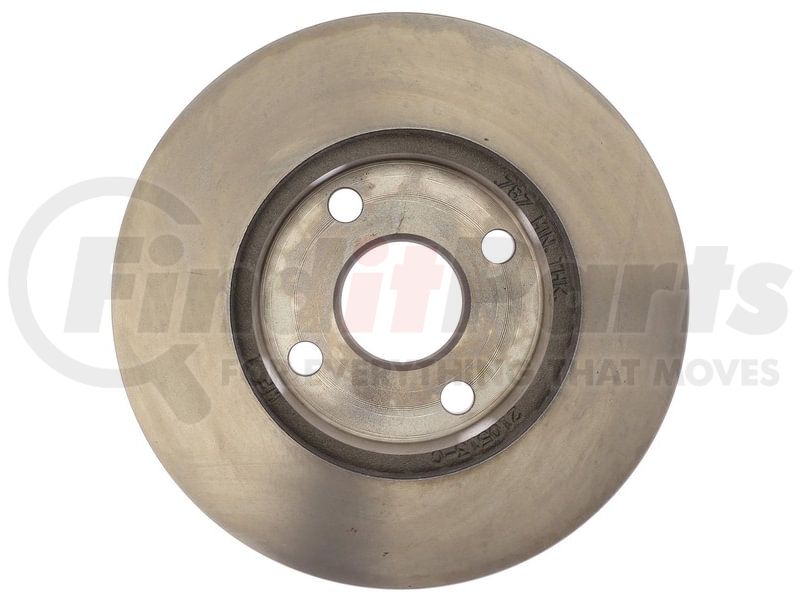

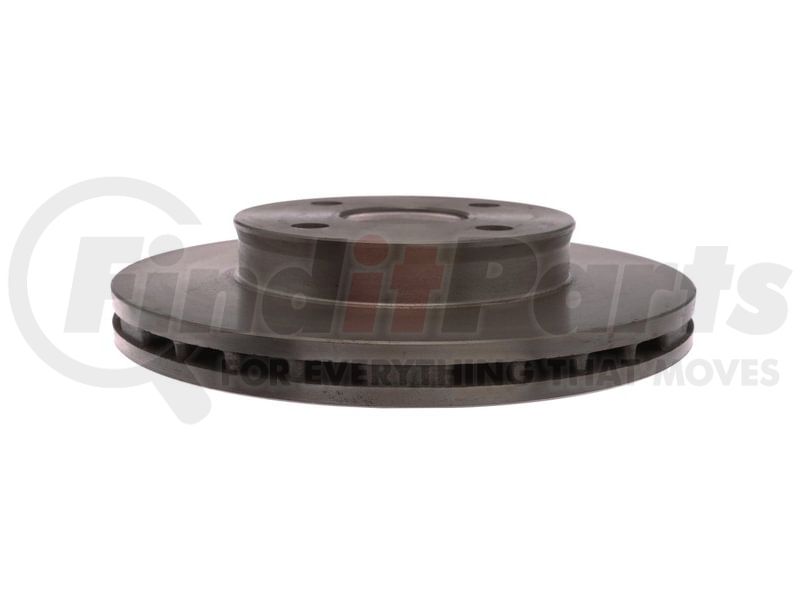

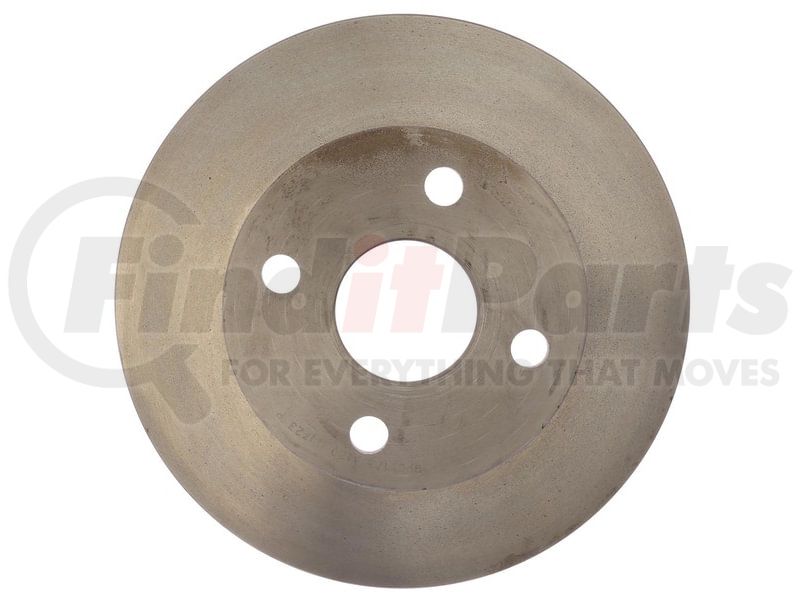

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 9173 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.126 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.865 IN |
| Outside Diameter | 9.37 IN |
| Overall Height | 1.82 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 54 MM |
| Discard Thickness | 20 MM |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 100 MM |
| Nominal Thickness | 21.95 MM |
| Outside Diameter | 238 MM |
| Overall Height | 46.25 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999297396 |
RAYBESTOS 9173 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141462, YH141462 |
| American Remanufactured | 789-22061, 89-22061 |
| AutoZone | 31072, 31072DG |
| Autopart International | 78505 |
| Autospecialty | JBR534, JBR534E |
| Beck/Arnley | 080-2310, 083-2310 |
| Bendix | 141462 |
| Brake Headquarters | BR06172 |
| Brake Pro | 4619173 |
| BrakeBest | 9173, 9173R, 9173RGS, BD125022 |
| Brembo | 09.6896.10, 25465 |
| CENTRIC | 121.44063 |
| California Drum & Rotor | 125022 |
| Casting Numbers | 210513-C, 325367, 5185 |
| Centric Parts | 120.44063, 121.44063 |
| Century | 9477 |
| Continental-ContiTech | CW22728 |
| Delphi | RB86 |
| Dura Corp | BR31072 |
| DuraGo | BR31072 |
| EIS Brakes | D17565 |
| Eurorotor | TO664 |
| GREN | 17602 |
| Guardian | 52-125022 |
| Midas | BR1695 |
| Mighty Distributing System | 31072 |
| Newtek Automotive USA | 31072 |
| PRONTO | BR31072 |
| Parts Master | P125022 |
| Qualis | 31072 |
| Qualitee International | 64-79-820 |
| Quality Brand | 31072, Q160 |
| Quinton Hazell | BDC4645 |
| Rockhill | 31072 |
| Standard Rotors and Drums | 31072 |
| Toyota | 4351220330 |
| TruStar | 479820, R79820 |
| UAP | 31072 |
| Universal | 107326 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50801 |
| WAGNER | BD125022 |
| WORLDPAC | 1407-78505 |
| Wagner Brake | BD125022 |
| Winhere | YH2214 |
