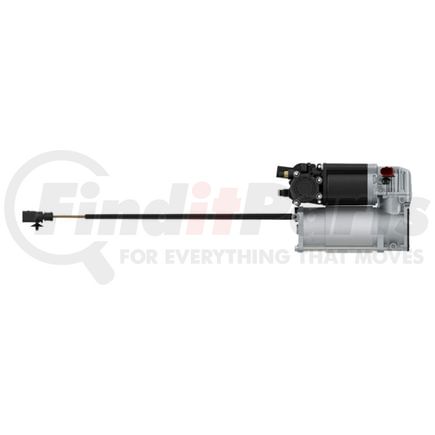

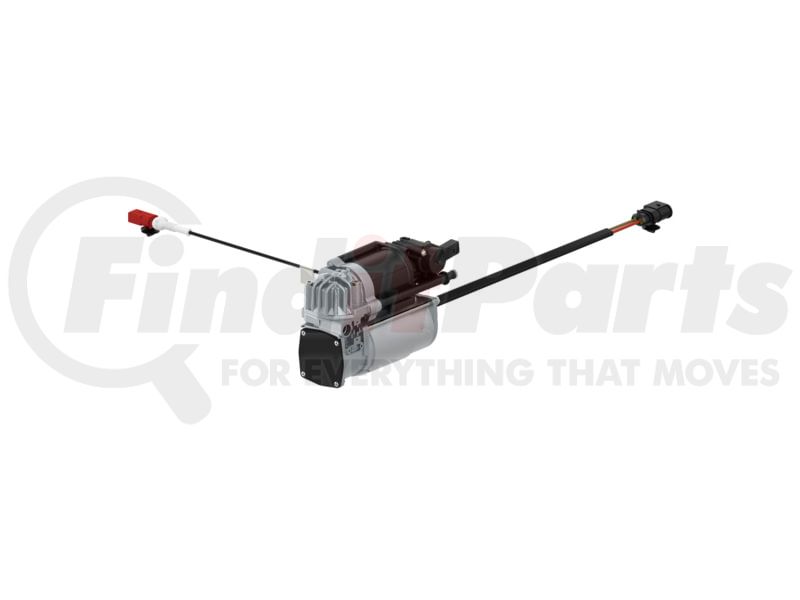

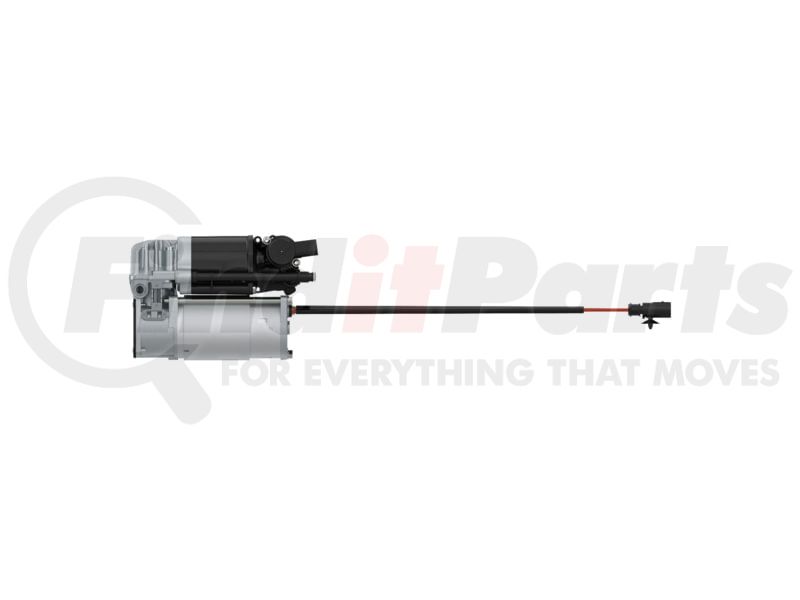

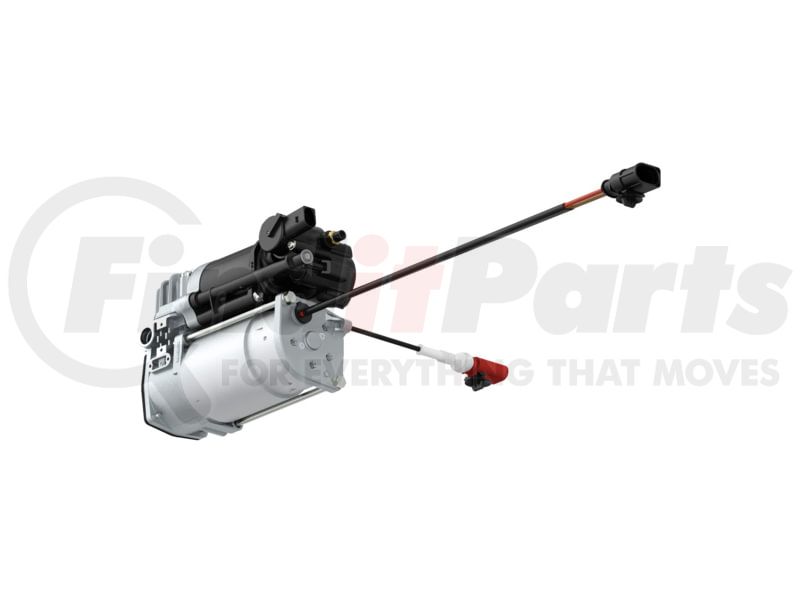

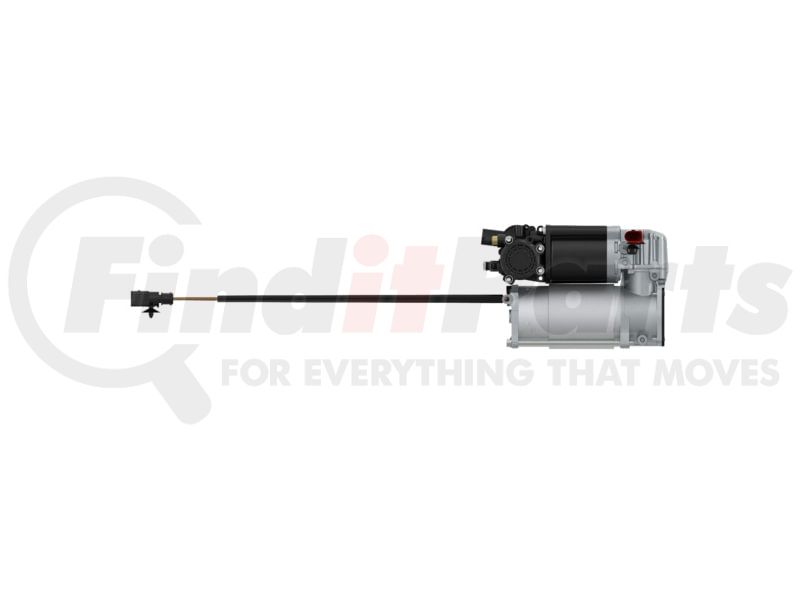

WABCO 415 403 126 0 - Air Suspension Compressor - Car Compressor Kia Mohave
$91999
30 day lead time
Pay over 3-12 months with
. Learn more
. Learn more
WABCO part description
Air Suspension Compressor - Car Compressor Kia Mohave
Product Attributes
| Voltage | 12 V |
| Size | 153 x 655 x 405 |
| Operating Pressure | 16.0 bar |
| Rated current | 28 A |
| Rated Current Compressor | 35 A |
| Calculated Volume (dm³) | 40.5871 |
| Port Thread 0 | Ø 11.5 mm |
| Protection class | IP 68 |
| Port thread 2 | Voss 203-B Ø 4.0 mm |
| Rated Current Solenoid Valve (A) | 0.80 A |
| Max. operating pressure | 13.2 bar |
| Temperature Range | -40°C to +80°C |
| Weight | 8.9287 |
Whether it’s for cars, buses, trucks, or trailers, WABCO® is at the frontline at developing and providing products and systems to make vehicles safer and easier to control. Founded in 1869, WABCO is a major supplier of braking, stability, suspension and transmissions in the Americas and beyond. The company is recognized as introducing the modern air brake system in 1869, and continues to lead the industry in air brake design and production for the heavy duty and commercial vehicle sectors. Today, WABCO operates as a division of the German auto parts maker ZF and employs 16,000 employees in facilities in 36 countries worldwide.
