MOOG 12E003R Part Description
Manufacturer
Product Description

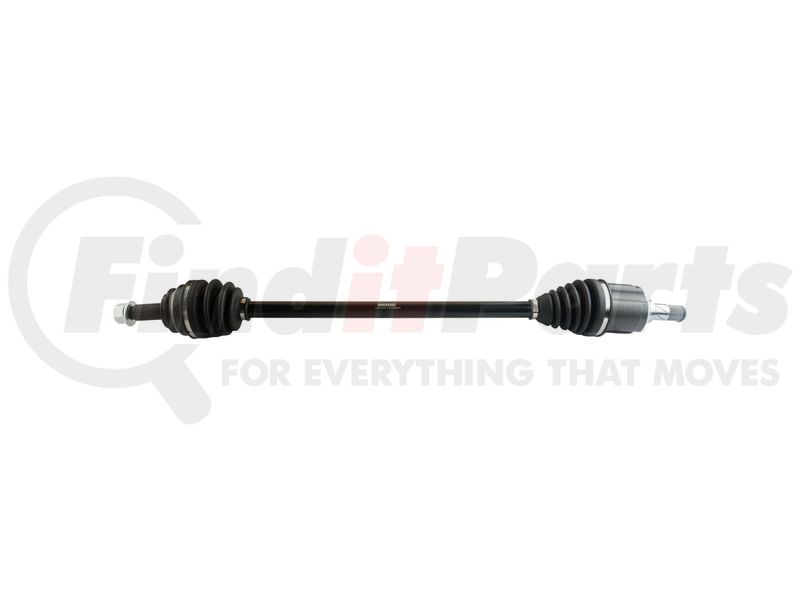

CV Axle Assembly
Features & Benefits
- KEEPS DIRT & MOISTURE OUT -- Durable neoprene boot keeps water and dirt out to help prevent premature failure
- ADDED RUST PROTECTION -- Specially engineered coating applied to intermediate shaft and inboard and outboard housings to inhibit premature wear caused by rain, snow, salt and road grime
- BUILT TO LAST -- Heat-treated bearings, races and housings for optimal joint function, articulation and geometry
- PRECISE FIT -- Splines ensure precise fit of the axle into the mating hub

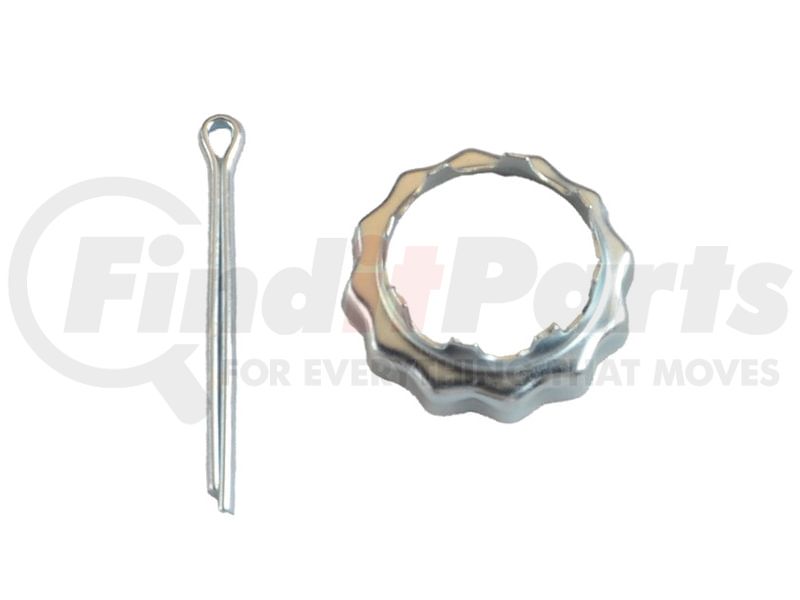

- EVERYTHING FOR THE REPAIR -- Comes with axle nut and inboard bolts (where required)
MOOG 12E003R CV Axle Assembly
MOOG 12E003R Specifications
Product Attributes
| Compressed Length | 37.72 IN |
| Inboard Spline Quantity | 27 |
| Outboard Spline Quantity | 28 |
| Axle Nut Included | Yes |

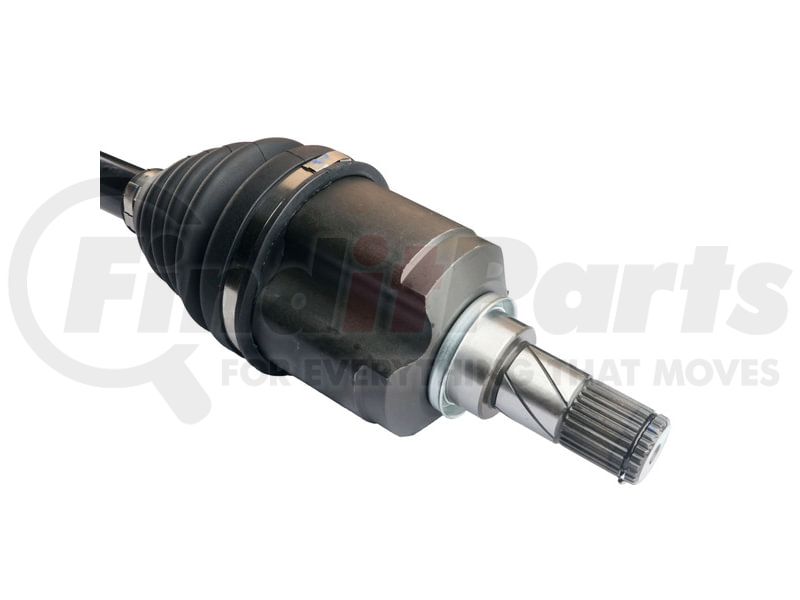

| Inboard Joint Type | Male |

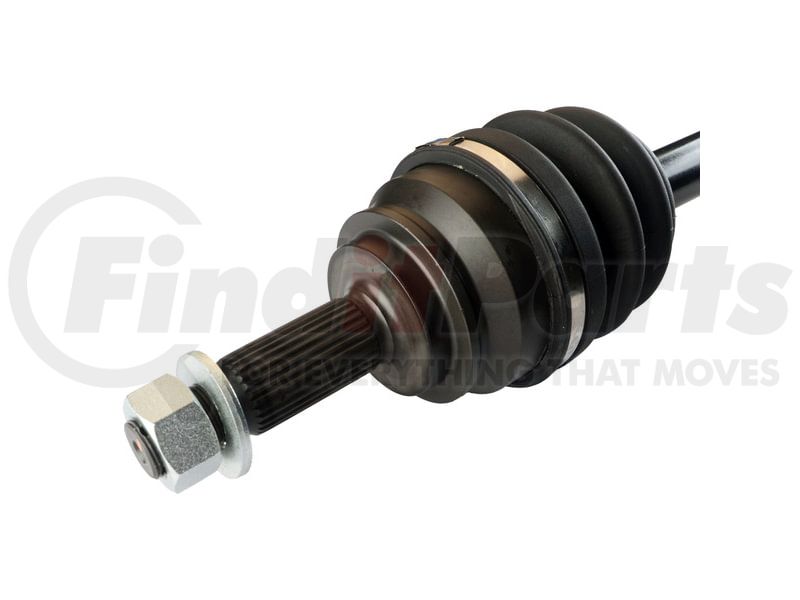

| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | No |
| Axle Nut Socket Size | 32 MM |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708509990 |
| Harmonized Tariff Code (Schedule B) | 8708700050 |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00080066727363 |
MOOG 12E003R Part Interchanges
| Brand | Part Number |
|---|---|
| Chrysler | 5105772AG |
| CARDONE | 663512 |
MOOG 12E003R Fits Vehicles
- Jeep Patriot (2007-2017)
- Jeep Compass (2007-2017)
- Dodge Caliber (2007-2012)
