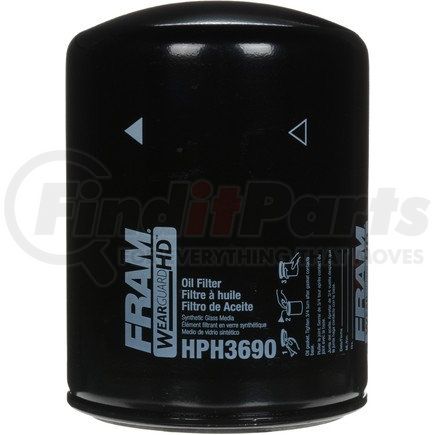

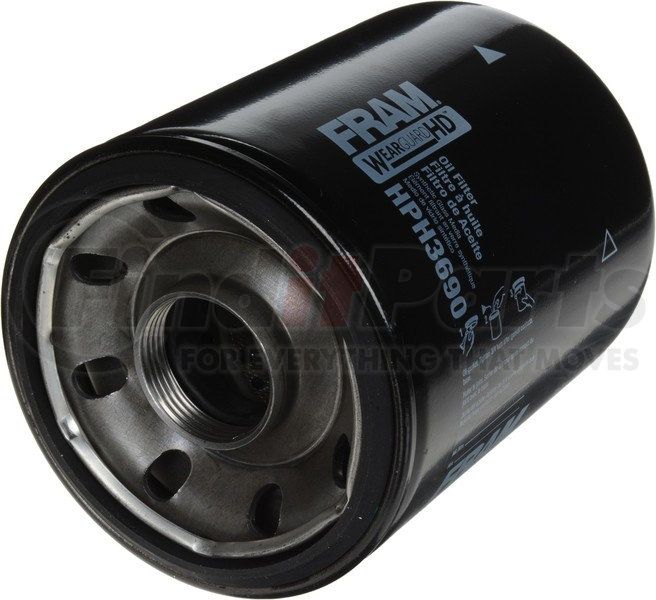

(888) 312-8812 Login SignupFRAM HPH3690FP Wear Guard HD Spin-on Oil Filter, Fleet Pack
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM HPH3690FP Part Description
Manufacturer
Product Description
FRAM, HPH3690FP, Oil Filter
Wear Guard HD Spin-on Oil Filter, Fleet Pack
FRAM HPH3690FP Specifications
Product Attributes
| Height | 6.290 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.270 IN |
| Housing Color | Black |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 3.850 IN |
| Gasket Outside Diameter | 4.330 IN |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Premium |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1 1/2-12 IN |
| New Or Remanufactured | New |
| Outside Diameter | 4.660 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Grade Type | Premium |
| Universal Or Specific Fit | Specific |
| Inner Thread Diameter | 1 1/2-12 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100018953 |
| UNSPSC | 15121501 |
FRAM HPH3690FP Cross References
| Brand | Part Number |
|---|---|
| AC-DELCO | PF947L |
| ACDelco | PF947L |
| BALDWIN | BD7041, BD7159, BD7166, BD7169, B105 |
| BIG A | 92673 |
| CARQUEST | 84521, 85673 |
| DENSO | T6757 |
| Donaldson | ELF7947, P167947, P502042, P502046, P550973 |
| FVP | R7521 |
| Fleetguard | LF3622, LF3807, LF3854, MK13046, MK13086 |
| Fleetrite | LFR-83632 |
| General Motors | 25014120, 94338181, 97046464, 97049282, 97096777, 97136470, 97148270, 97719921 |
| Hastings | LF273, LF281, LF505, LF507 |
| Installer Edge | AL6354 |
| Isuzu | 2-90654-600-0, 2-90654-800-0, 8-94338-181-0, 8-94338-181-1, 8-97046-464-1, 8-97049-282-0, 8-97096-777-0, 8-97136470-0, 8-97148-270-0, 8-97148-270-1, 8-97148-280-0 |
| LUBER-FINER | LFP2339, WIX, LFP5964 |
| NAPA | 1673, 1833, 7521 |
| Purolator | L30279, L35495, L46066 |
| WIX FILTERS | 57521 |
FRAM HPH3690FP Fits Vehicles
- Suzuki Aerio (2002)
- Chevrolet LCF 6500XD (2018-2021)
- Chevrolet LCF 5500XD (2017-2022)
- Chevrolet LCF 5500HD (2017-2022)
- Chevrolet LCF 4500HD (2017-2022)
- Chevrolet LCF 4500XD (2017-2022)
- Isuzu NPR-HD (1999-2022)
- Isuzu NPR (1992-2009)
- Isuzu NRR (2005-2022)
- Isuzu NQR (1994-2022)
- Chevrolet W5500 Tiltmaster (1999-2010)
- Chevrolet W4500 Tiltmaster (1999-2010)
- GMC W5500 Forward (1999-2010)
- GMC W5500HD Forward (2004-2009)
- GMC W4500 Forward (1999-2010)
- GMC W3500 Forward (1999-2008)
- Chevrolet W5500HD Tiltmaster (2004-2009)
- Chevrolet W3500 Tiltmaster (1999-2009)
