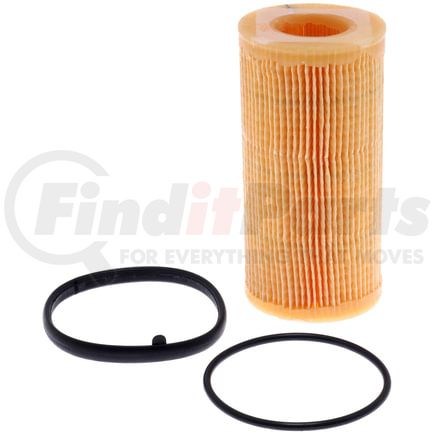

(888) 312-8812 Login SignupFRAM CH9954 Cartridge Oil Filter
Tap to view 5 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM CH9954 Part Description
Manufacturer
Product Description
FRAM, CH9954, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
Cartridge Oil Filter
FRAM CH9954 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.925 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Gasket Inside Diameter | 2.784 IN |
| Gasket Outside Diameter | 2.920 |
| Gasket Thickness | 0.136 IN |
| Gasket Type | Cover |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 1.221 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.502 in |
| Outer Diameter Top | 2.502 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.221 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | AR |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100046642 |
| UNSPSC | 15121501 |
FRAM CH9954 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF2257 |
| BALDWIN | P7417 |
| Bosch | 72256WS |
| CARQUEST | 84186 |
| CHAMP | P3986 |
| CHAMP FILTERS | P3986 |
| Carquest | R84186 |
| Carquest Premium Filters | 84186 |
| Casite Filters | CF604 |
| EXXON/MOBIL OIL | M1C451, M1C451A |
| FRAM | M1C-451A, M1C-451 |
| FRAM Drive | FD9954 |
| FVP | G7186 |
| Factory Motor Parts | G7186 |
| GROUP 7 | V5234 |
| HASTINGS | LF604 |
| Hastings | LF604F |
| Installer Edge | ALO25 |
| LUBER-FINER | P3986 |
| MAHLE | OX370DECO, OX 370D ECO, OX 370D, OX370D |
| MANN & HUMMEL | HU719/8X |
| MANN-HUMMEL FILTERS | HU719/8X |
| MICROGARD | MGL9954 |
| MOBIL OIL | M1C451, M1C451A |
| Mann-Filter | HU719/8X |
| MicroGard | MGL57186 |
| MicroGard Select | MSL57186 |
| Mobil 1 | M1C-451, M1C-451A |
| NAPA | 7186 |
| PUROLATOR | TL35234 |
| Parts Master | 67187 |
| Pentius | PCB9954 |
| Performax | PO-181 |
| Premium Guard | PG5234 |
| Prime Guard Filters - Archived | POF5581 |
| Promotive | PH5234, PH5581 |
| Pronto | PO-5581 |
| PureZone | 8-57186 |
| Purolator | L35234 |
| Purolator PureONE | PL35582 |
| PurolatorONE | PL35582 |
| STP | S9911 |
| STP Filters | S9911 |
| VIPER | 9954 |
| Valvoline | VO-85 |
| Volvo | 864257-0, 8692305 |
| WIX FILTERS | 57186, 57186XP |
| Wix | 57186 |
FRAM CH9954 Fits Vehicles
- Volvo V60 Cross Country (2015-2016)
- Volvo XC70 (2016)
- Volvo S60 Cross Country (2016)
- Volvo XC60 (2015-2016)
- Volvo V60 (2015-2016)
- Volvo S60 (2012-2016)
- Volvo C70 (2006-2013)
- Volvo C30 (2007-2013)
- Volvo V50 (2005-2011)
- Volvo S40 (2004-2011)
- Suzuki Aerio (2002)
