FRAM CH10632 Part Description
Manufacturer
Product Description
FRAM, CH10632, Oil Filter
Features & Benefits
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

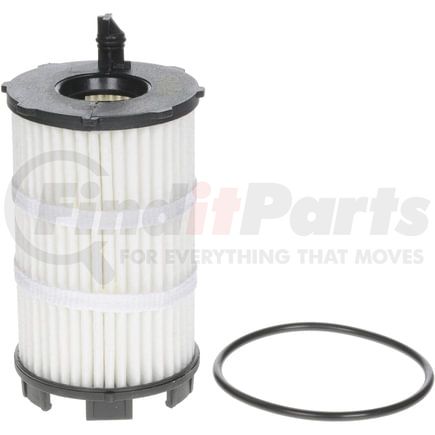

Cartridge Oil Filter
FRAM CH10632 Specifications
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 5.065 IN |
| Grade Type | Regular |
| Filter Type | Cartridge |
| Non Slip Grip | No |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Grade | Advanced |
| Housing Color | NA |
| Inside Diameter Bottom | 0.790 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| O-ring Inside Diameter | 2.800 IN |
| O-ring Outside Diameter | 2.940 IN |
| O-ring Thickness | 0.140 IN |
| O-Rings Included | Yes |
| Outer Diameter Bottom | 2.620 in |
| Outer Diameter Top | 2.720 in |
| Replacable Filter | Yes |
| Reusable | No |
| Top Inside Diameter | 1.021 in |
| Torque Nut | No |
| Washable | No |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100541468 |
| UNSPSC | 15121501 |
FRAM CH10632 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 041-0826 |
| Champ | P907 |
| Hastings | LF659 |
| Purolator | L35843 |
| Wix | 57330 |
| LUBER-FINER | P907 |
| Mann-Filter | HU7005X, HU718/8X |
| Hengst | E813H D188 |
| Volkswagen | 079 115 561F, 079 115 561K, 079 198 405B, 079 198 405E, 079 198 405A |
| Valvoline | VO-138 |
| STP | P907 |
| Premium Guard | PG5843 |
| MAHLE | OX350, OX350/4D, OX350/4DECO, OX350DECO |
| NAPA | 7330 |
| FVP | G7330 |
| Carquest Premium Filters | 84330 |
| Mahle | OX350, OX350/4D, OX350/4DECO, OX350DECO |
| Factory Motor Parts | G7330 |
| STP Filters | P907 |
| Parts Master | 67330 |
| Lamborghini | 079198405E |
FRAM CH10632 Fits Vehicles
- Suzuki Aerio (2002)
- Lamborghini Gallardo (2013)
- Audi RS5 (2013-2015)
- Audi R8 (2008-2012, 2014-2015, 2017-2018, 2020-2023)
- Audi S5 (2008-2012)
- Audi A6 Quattro (2007-2011)
- Audi A8 Quattro (2007-2012)
- Volkswagen Touareg (2007-2009)
- Audi Q7 (2007-2010)
- Audi S6 (2007-2011)
- Audi S8 (2007-2009)
- Audi RS4 (2007-2008)
FRAM CH10632 Cross References
We have 10 alternatives for the CH10632 by FRAM:
