ICON 56518R Part Description
Manufacturer
Product Description

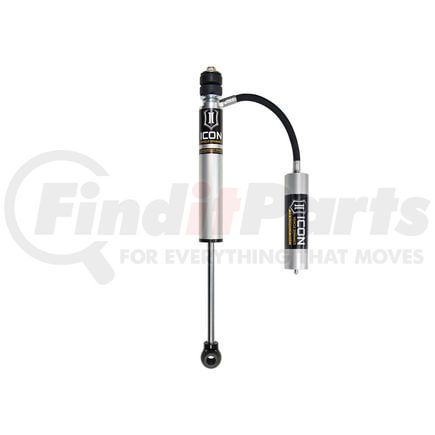

24-25 TACOMA 0-1" REAR 2.0 VS RR
Features & Benefits
- Nitrogen charged monotube design with remote reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrile rubber top out bumper for noise free operation
- Rubber dust boot included for added shaft protection
- Fully rebuildable and re-tunable
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
24 TACOMA 0-1' REAR 2.0 VS RR
ICON 56518R Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-on Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | No |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Polyurethane |
| California Prop 65 Warning | Yes |
| Color | Silver |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Shield | No |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| External Reservoir | Yes |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| 11242 | .75 IN |
| 11244 | 1.825 IN |
| Lower Mount Type | Loop (Eyelet) Bushing |
| Material | Steel |
| Maximum Ride Height Raising Distance | 1 IN |
| 11167 | 0 IN |
| Mounting Hardware Included | Yes |
| Quantity | 1 |
| Remote Reservoir | Yes |
| 2975 | 2 IN |
| 11335 | .25 IN |
| 11334 | 21 IN |
| 2974 | 8 IN |
| Reservoir Type | Remote |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 202003 - 2.0 REMOTE RESI REBUILD KIT |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Suspension Type | Spring |
| Title | ICON 2024-2025 Toyota Tacoma, 0-1" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir |
| Upper Mount Type | Stem |
| Valving Type | Linear |
Additional Information
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103428840 |
ICON 56518R Fits Vehicles
- Toyota Tacoma (2024-2025)
