PETERSON LIGHTING part description

114 Clearance / Side Marker Light with Reflex

Features & Benefits

  • Stud-mount light functions as side marker or clearance light with built-in reflective optics; eliminates need for separate reflector
  • Just push stripped power into "Quick Lock" port to connect
  • May be used as a combination side marker and clearance light for over 80" applications when properly mounted
  • Single wire for electrical connection; additional wire port available for separate ground wire mount on non-metallic surfaces
  • Features 15,000-hour long life bulb
  • Available in amber or red

Product Description


Features & Benefits

  • Available in retail-friendly Viz Pack.
  • Made in USA.
  • LED version available.
  • Long life bulb.
  • PC Rated.
  • Integral Reflex.
  • "Quick Lock" port; just push stripped power wire in to connect.
  • Grounds through stud, or through additional ground wire port.
  • Use as both side marker and clearance light when properly mounted.
  • Features 15,000-hour-rated long life bulb.
  • See 170 series LED version on Peterson Master Catalog page 59.

114-15A: amber lens (poly pack - std qty 10)

Product Attributes

Bulb Technology incandescent
Bulb/diode Count 1
California Proposition 65 Required Y
Container Type Viz Pack
Family PM
Filament Quantity 1
Ground Type stud

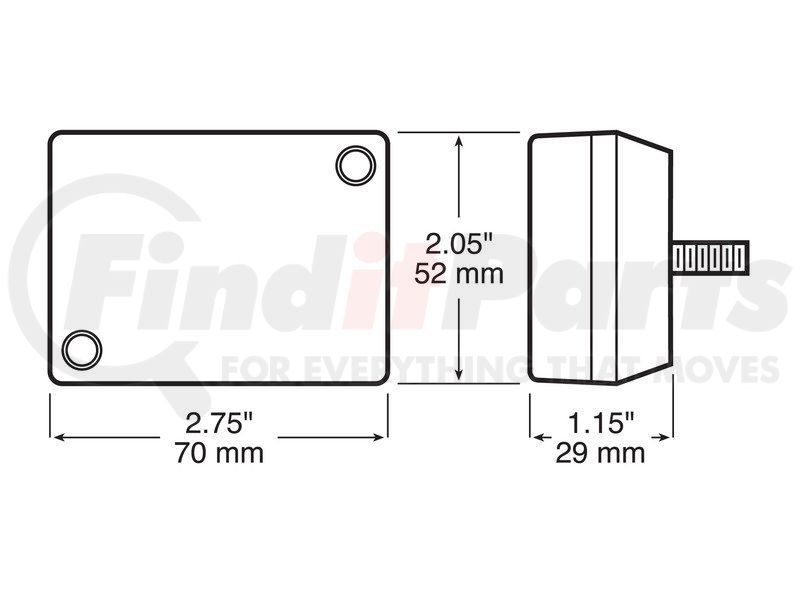

Height 2.05 in
Integral Reflex Y
Length 2.75 in
Lens Color amber
Light Color amber
Marine Use N
Mounting Type stud
Pc Rated Y
Regulatory Compliance DOT
Removable Lens Y
Replaceable Bulb Y
Shape rectangular
Termination stripped wire
Voltage 12 Volts
Width 1.15 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464946696
VMRS Code 034004021

Part Interchanges


We have 3 alternatives for the V114A by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
