PETERSON LIGHTING part description

Technical specifications:

Mounting Centers 3 Inch
Filament Quantity 1
Bulb/Diode Count 2
Voltage 12 Volts
Light Color Amber
Light Type Halogen
Lens Color Amber
Regulatory Compliance DOT
Bulb Technology Incandescent
Marine Use N
Integral Reflex N
Family PM
Shape Rectangular
Termination Stripped Wire
Mounting Type Surface
Container Type Viz Pack
Ground Type Wire
Replaceable Bulb Y
Removable Lens Y
PC Rated Y
UPC 044464903651

Features & Benefits

  • Popular, two-bulb lamp that functions as clearance or side marker light, and may be used as combination clearance and side marker when properly mounted
  • Acrylic lens snaps onto housing
  • Surface mounts on 3" centers and grounds through mounting hardware; single wire for electrical connection
  • Features two 15.000-hour long life bulbs
  • Available in amber or red; blue and green available for accessory use only
  • V138-15 contains two lenses per pack

Product Description

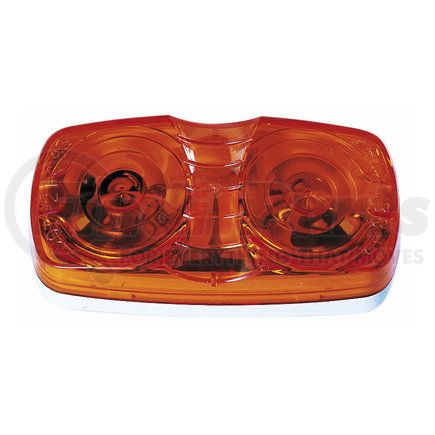

INCANDESCENT MARKER/CLEARANCE, PC, RECTANGULAR, DOUBLE BULLS-EYE, 4"X2"

Features & Benefits

  • Available in retail-friendly Viz Pack.
  • Made in USA.
  • LED version available.
  • 2 bulbs.
  • Long life bulb.
  • PC Rated.
  • "Double bulls-eye" twin bulb design.
  • Acrylic lens snaps onto housing.
  • Surface mounts on 3" centers
  • Single 4.5" wire connection, grounds through mounting hardware.
  • Features two 15,000-hour-rated long-life bulbs.
  • Compatible with 106-09 chrome accessory guard. See Peterson Master Catalog page 171.
  • Blue, clear and green lenses available for accessory use only.
  • V138-15 contains two lenses per pack.
  • See 38 LED version on Peterson Master Catalog page 54.

V138-15A: amber lens (Viz Pack - std qty 6)

Product Attributes

Bulb Technology incandescent
Bulb/diode Count 2
California Proposition 65 Required Y
Container Type Viz Pack
Family PM
Filament Quantity 1
Ground Type wire
Height 2 in
Integral Reflex N
Length 4 in
Lens Color amber
Light Color amber
Marine Use N
Mounting Centers 3 IN
Mounting Type surface
Pc Rated Y
Regulatory Compliance DOT
Removable Lens Y
Replaceable Bulb Y
Shape rectangular
Termination stripped wire
Voltage 12 Volts
Width 1.09 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464903651
VMRS Code 034004021

Part Interchanges

PETERSON LIGHTING V138A Cross Reference

We have 4 alternatives for the V138A by PETERSON LIGHTING:
