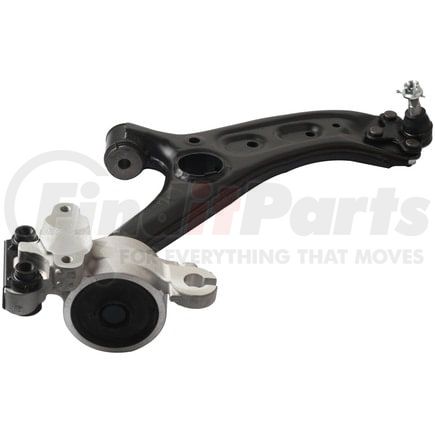

(888) 312-8812 Login SignupDELPHI TC3994 Control Arm and Ball Joint Assembly
Tap to view 27 more
$15049
Limited availability at this price!
In Stock
Get it by Tuesday, Jun 23
DELPHI TC3994 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control Arm and Ball Joint Assembly
DELPHI TC3994 Specifications
Product Attributes
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 2 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Locking Nut Included | Yes |
| Greaseable | No |
| Control Arm Maximum Width | 334.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 22.00 MM |
| Control Arm Maximum Length | 659.00 MM |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 21.00 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Distance Between Bushings | 347.00 MM |
| Bushing Inside Diameter | 14.20 MM |
| Bushing Length | 60.00 MM |
| Position(s) | Front Right Lower |
| Control Arm Maximum Width | 13.150 IN |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 0.866 IN |
| Control Arm Maximum Length | 25.945 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.827 IN |
| Distance Between Bushings | 13.661 IN |
| Bushing Inside Diameter | 0.559 IN |
| Bushing Length | 2.362 IN |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604393871 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3994 Cross References
| Brand | Part Number |
|---|---|
| N/A | CMS601055, 51220-TLA-A51, 51350TNYJ00, 51350TLAA71, 51350-TLA-A62, 51350TLAA70 |
DELPHI TC3994 Fits Vehicles
- Honda CR-V (2017-2022)
DELPHI TC3994 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC3994 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
DELPHI TC3994 Questions & Answers
No questions yet
Be the first to ask a question about this product!
