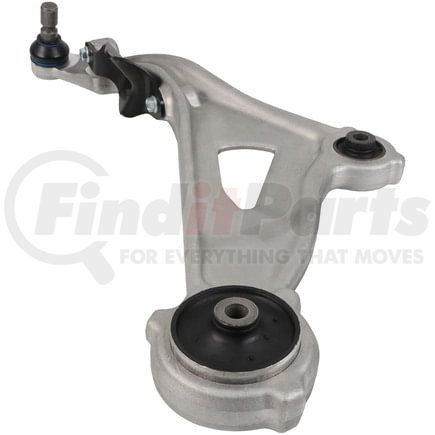

(888) 312-8812 Login SignupDELPHI TC3993 Control Arm and Ball Joint Assembly
Tap to view 27 more
$25749
Limited availability at this price!
In Stock
Get it by Thursday, Jun 18
DELPHI TC3993 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Control Arm and Ball Joint Assembly
DELPHI TC3993 Specifications
Product Attributes
| Bushing Color | Black |
| Finish | Uncoated |
| Pre-Greased | Yes |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Grooved |
| Ball Joint Included | Yes |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 2 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 492.10 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 27.00 MM |
| Control Arm Maximum Length | 491.30 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 14.20 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Distance Between Bushings | 287.00 MM |
| Bushing Inside Diameter | 14.20 MM |
| Bushing Length | 75.00 MM |
| Position(s) | Front Left Lower |
| Control Arm Maximum Width | 19.374 IN |
| Ball Joint Stud Length | 1.063 IN |
| Control Arm Maximum Length | 19.343 IN |
| Mounting Hole Diameter | 0.559 IN |
| Distance Between Bushings | 11.299 IN |
| Bushing Inside Diameter | 0.559 IN |
| Bushing Length | 2.953 IN |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604391082 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3993 Cross References
| Brand | Part Number |
|---|---|
| N/A | RK623064, CMS301218, 54501-3JA0D, 54501-3JA0A, 54501-3JA0B, 54501-3JA0C |
DELPHI TC3993 Fits Vehicles
- INFINITI QX60 (2014-2019)
- Nissan Pathfinder (2013-2019)
- INFINITI JX35 (2013)
