(888) 312-8812 Login SignupRAYBESTOS 781767R2 Raybestos R-Line+ Brake Rotor
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 781767R2 Part Description
Manufacturer
Product Description

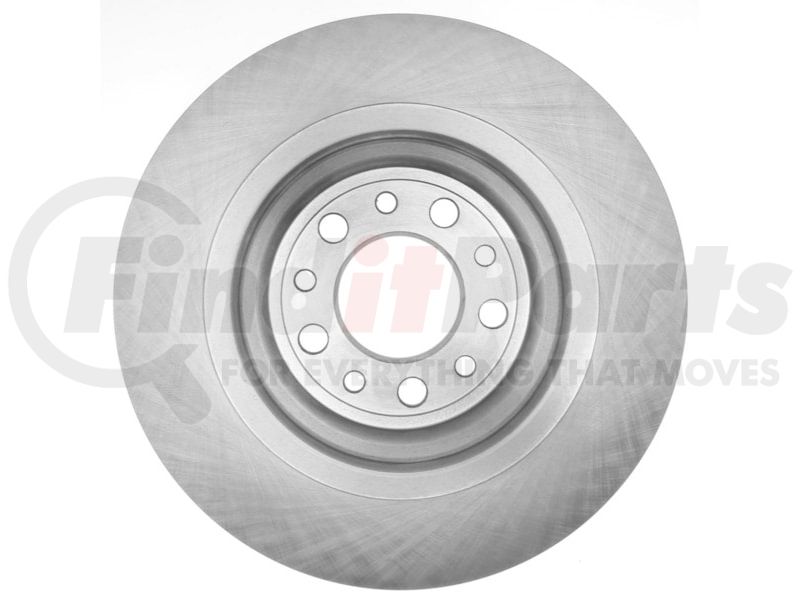

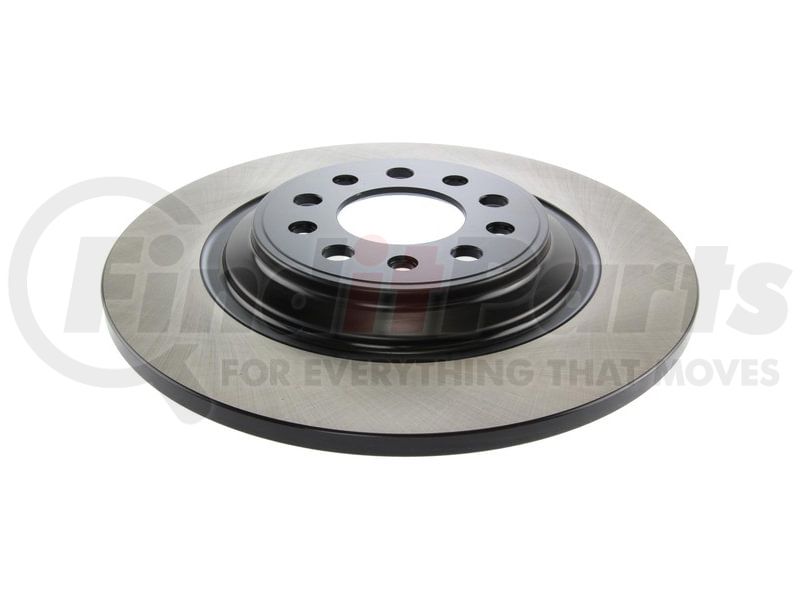

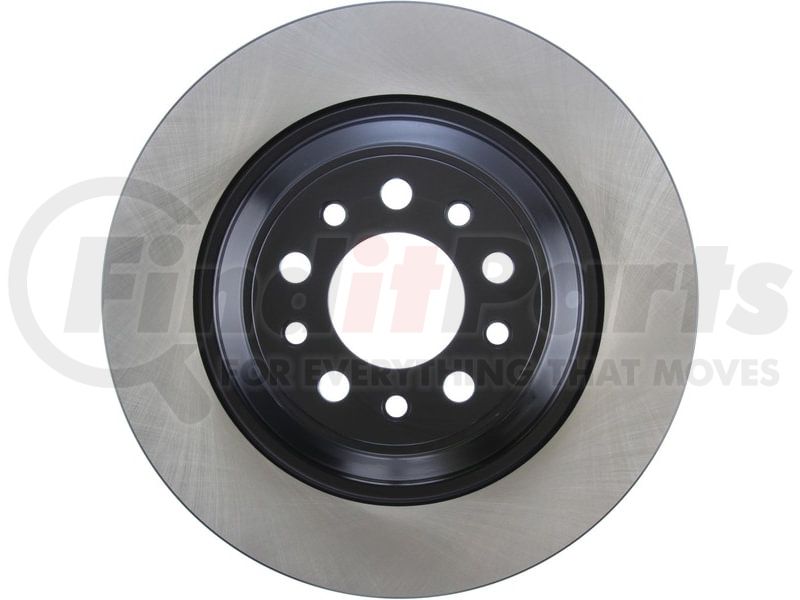

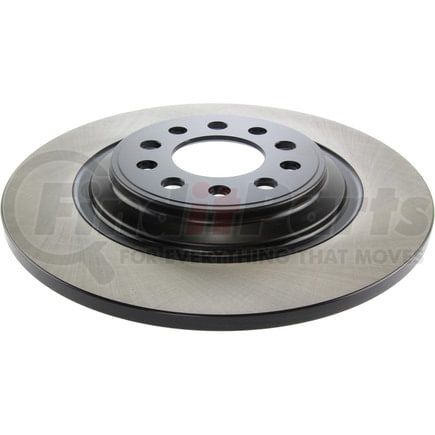

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 781767R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.76 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.409 IN |
| Inside Diameter | 8.63 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Diameter | 0.614 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.472 IN |
| Outside Diameter | 12.606 IN |
| Overall Height | 1.309 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 70.1 MM |
| Discard Thickness | 10.4 MM |
| Inside Diameter | 219.2 MM |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 15.6 MM |
| Nominal Thickness | 12 MM |
| Outside Diameter | 320.2 MM |
| Overall Height | 33.25 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213447477 |
RAYBESTOS 781767R2 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | YH514208, YH514208C, YH514208P |
| AutoZone | 72124, 72124DG, 72124DL |
| Autopartsource | 491407 |
| Autoxtra | AX901274, AX901274P |
| BrakeBest | 712063RGS, 781767, 781767FZN, 781767R |
| Brembo | 08.N283.81, 08.N283.8X |
| Centric Parts | 120.58011, 120.58011CRY, 121.58011, 126.58011SL, 126.58011SR, 127.58011L, 127.58011R, 128.58011L, 128.58011R, 320.58011 |
| Chrysler | 04779886AB, 4779886AB, 4779886AC |
| Dura Corp | BR901274 |
| DuraGo | BR901274, BR90127402 |
| Dynamic Friction Company | 600-42010 |
| Eurorotor | 51303 |
| Newtek Automotive USA | R1274 |
| Parts Master | 901274 |
| PowerStop | AR83088EVC |
| Promax | 14-630009 |
| Qualis | 43191 |
| TopNotch | TN781767GEO |
| UAP | 2901274 |
| Ultra Brake | 51303 |
| WORLDPAC | 1407-514208, 1427-711334 |
| Wagner Brake | BD180656, BD180656E |
| Winhere | 6612063 |
RAYBESTOS 781767R2 Fits Vehicles
- Jeep Cherokee (2014-2023)
RAYBESTOS 781767R2 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 781767R2 Manufacturer Information
For ultimate braking power, trust only the best in brakes—Raybestos®. This industry giant has been revolutionizing people’s perception of brakes and braking performance for over 100 years now. Raybestos’ unwavering commitment to providing the automotive aftermarket with top-caliber brake parts makes it the most sought-after brand of brake solutions for commercial vehicles, motorhomes, buses, performance vehicles, and other automotive applications. With its cutting-edge technology and outstanding research and product development capabilities, this brand produces a comprehensive line of brake products that adhere to OE specifications and meet stringent industry standards. From pads to rotors, calipers to cylinders, Raybestos ensures dependable brake parts that deliver the best-in-class performance and unparalleled driving safety that customers expect from an industry leader.
RAYBESTOS 781767R2 Questions & Answers
No questions yet
Be the first to ask a question about this product!
