WAGNER BD180656E Part Description
Manufacturer
Product Description

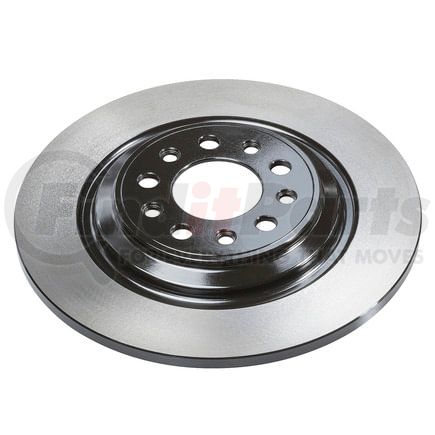

Disc Brake Rotor
Application Summary
2014-2022 Jeep Cherokee (Rear) (Qualifier: with Brake Code BR6, BRG, Black E-Coat on non-braking surface to prevent rust and corrosion, with Brake Code BRG, with Heavy Duty Brakes)
Features & Benefits
- ENGINEERED FOR PERFORMANCE -- OE-specific vane design provides effective braking power and heat dissipation while controlling noise, vibration and harshness
- OE-STYLE DESIGN -- Restores like-new braking performance while matching OE fit, form and function
- PREMIUM PROTECTION -- E-Shield(R) protective coating is applied to non-braking surfaces to inhibit corrosion
- RESISTS CORROSION -- Painted edges & hats provide reliable corrosion resistance
- TURNED AND SMOOTH FINISH -- Requires less pad break-in time and aids in proper bedding
- NON-DIRECTIONAL FINISH -- Reduces pad break-in time and promotes proper bedding for consistent stopping power
- EASY INSTALLATION -- Rotors are packaged in a Vapor Corrosion Inhibitor bag, eliminating the need for an oil coating which reduces prep time
- CONSISTENT PERFORMANCE -- Precision ground surface finish delivers reliable performance, noise reduction and heat dissipation
- PROPER BALANCE -- Spin balanced and cut to limit vibration for improving stability and control
- SMOOTH BRAKING -- Application-specific OE vane design and thickness help control noise, vibration and harshness (NVH)
- PERFECT PAIRING -- Pair Wagner premium rotors with premium brake pads for optimal performance
- BALANCED FOR SMOOTH STOPS -- Precision-balanced to minimize pedal pulsation and deliver a smoother ride
- QUALITY MATERIALS -- Proven metallurgy provides structural integrity and heat dispersion for reliable performance
- EASY TO INSTALL -- Simply wash the oil off and bolt on; no machining required
- COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates
- PERFECT PAIRING -- Pair Wagner® Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
- PERFECT PAIRING -- Pair Wagner(R) Standard rotors with Wagner brake pads and calipers (sold separately) for optimal performance
WAGNER BD180656E Specifications
Product Attributes
| Material | Cast Iron |
| Nominal Thickness | 0.477 IN |
| Disc Finish | Directional |
| Construction | Full Cast |
| Rust Resistant Coating | Yes |
| Outside Diameter | 320.0 MM |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Height | 0.915 in |
| Part Description | Disc Brake Rotor |
| Stud/Lug Hole Quantity | 5 |
| Outside Diameter | 12.598 IN |
| Overall Height | 0.915 IN |
| Overall Height | 23.2 MM |
| Nominal Thickness | 12.1 MM |
| Bearings Included | No |
| Directional or Non-Directional Brake Surface | Directional |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708305030 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00008536947684 |
| VMRS Code | 013017001 |
| UNSPSC | 25171705 |
WAGNER BD180656E Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 18A81767, 18A81767A, 18A81767AC |
| ADVICS | P6R384U |
| ATE | 412215 |
| Autospecialty | AR83088 |
| Bosch | 16011631 |
| BrakeBest Select Drum/Rotor | 712063PRM |
| Carquest Platinum Painted Rotors | YH514208P |
| Carquest Wearever | YH514208 |
| Centric Parts | 120.58011, 120.58011CRY, 121.58011, 320.58011F |
| Chrysler | 4779886AB, 4779886AC |
| DuraGo | BR901274, BR901274-01, BR901274-02 |
| Duralast | 72124DL |
| Jeep | 4779886AB |
| NAPA BRAKES | 881767CR, 48881767, 248881767 |
| PowerStop | AR83088, AR83088EVC |
| Pro-Series | PS43191, C08173 |
| Raybestos Brakes | 781767, 781767FZN, 781767R, 781767R2 |
| Winhere | 6612063, UR005659 |
| Worldparts Synergy | WS1153086 |
WAGNER BD180656E Fits Vehicles
- Jeep Cherokee (2014-2023)
