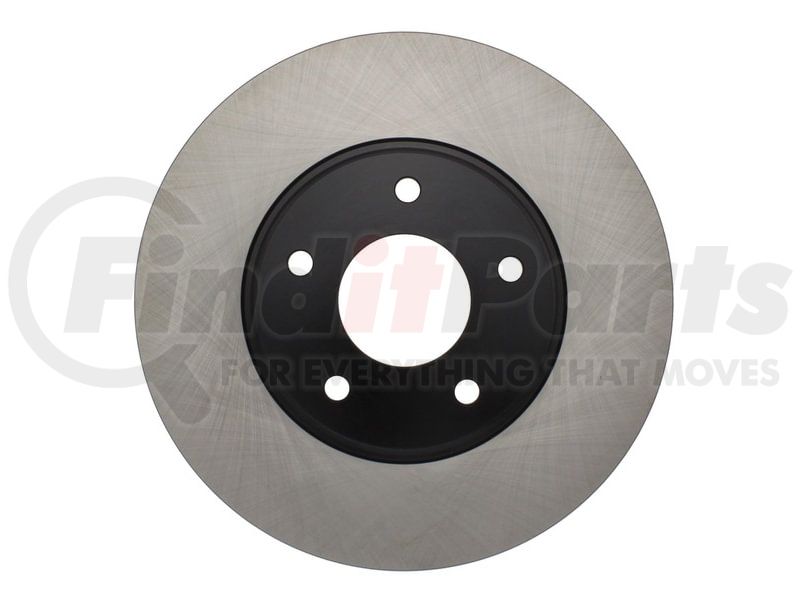

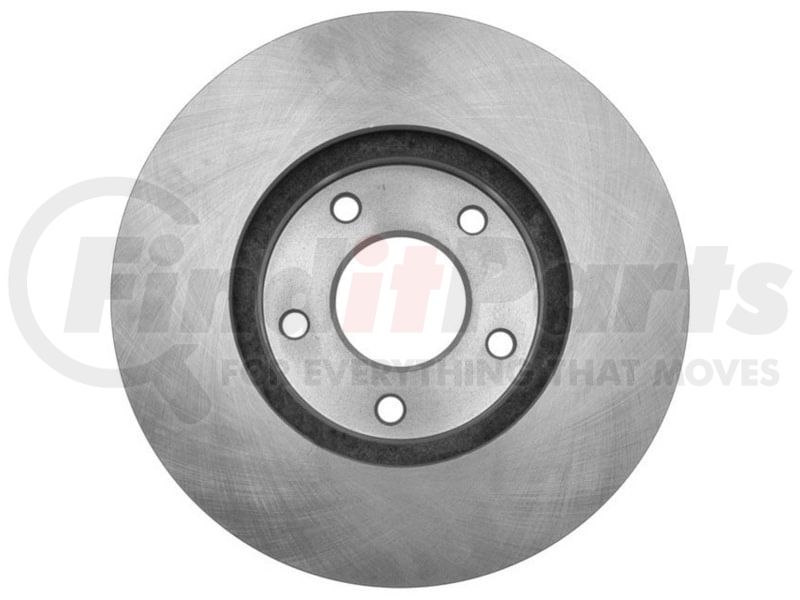

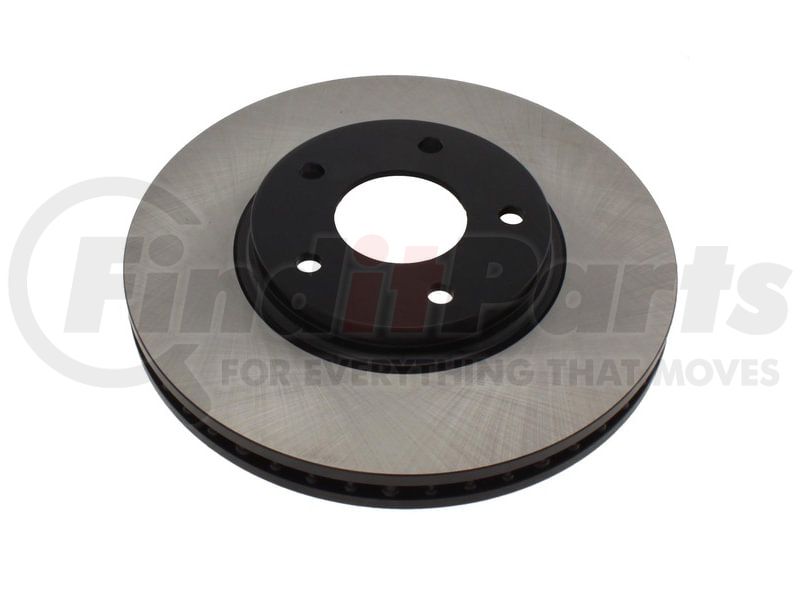

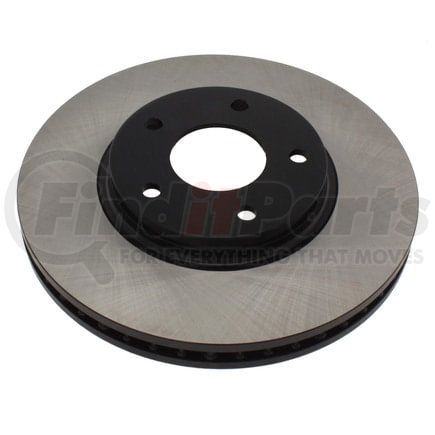

RAYBESTOS 980116R2 Raybestos R-Line+ Brake Rotor

★★★★★ (0)
Raybestos 980116R2 Disc Brake Rotor Raybestos R-Line+ Brake Rotor
RAYBESTOS
Tap to view 2 more

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

RAYBESTOS 980116R2 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos R-Line+ Brake Rotor

Features & Benefits

  • Painted Hat and Edges
  • Top-Notch Surface Finish
  • Superior surface finish for consistent braking.
  • OE Vane Design
  • OE vane design and plate thickness for heat capacity and strength.
  • Advanced Metallurgy
  • Advanced metallurgy for structural strength and heat transfer.
  • Low Initial Lateral Run-out
  • Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
  • Precision Balance
  • Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor

RAYBESTOS 980116R2 Specifications

Product Attributes

ABS Tone Ring IncludedNo
Center Hole Diameter2.677 IN
Conventional Or Drum-In-Hat Type RotorConventional
Directional or Non-Directional Brake SurfaceNon-Directional
Discard Thickness1.024 IN
MaterialCast Iron
Mounting Bolt Hole Circle Diameter4.5 IN
Mounting Bolt Hole Diameter0.495 IN
Mounting Bolt Hole Quantity5
Nominal Thickness1.101 IN
Outside Diameter11.409 IN
Overall Height1.939 IN
Solid Or Vented Type RotorVented
Stud/Lug Hole Quantity5
Harmonize Code8708.30.5030
Salability RestrictionsNo
UNSPSC Code25171715
Center Hole Diameter68 MM
Discard Thickness26 MM
Mounting Bolt Hole Circle Diameter114.3 MM
Mounting Bolt Hole Diameter12.55 MM
Nominal Thickness27.95 MM
Outside Diameter289.8 MM
Overall Height49.25 MM

Additional Information

Country of Origin (Primary)CN
Canadian Harmonizing Tariff Code8708309990
Harmonized Tariff Code (HTS)8708305030
UPC00887213448023

RAYBESTOS 980116R2 Cross References

BrandPart Number
Advance Auto Parts145673, 832968, YH145673, YH145673C, YH145673P, YH200381
AutoZone44299, 44299DG
AutoxtraAX900408
BendixPRT5673
Bosch40011075
BrakeBest40011075, 980116, 980116FZN, 980116R, 980116RGS
Brembo09.B554.11
Casting Numbers326298
Centric Parts120.42071, 120.42071CRY, 121.42071, 126.42071CSL, 126.42071CSR, 126.42071SL, 126.42071SR, 127.42071CL, 127.42071CR, 127.42071L, 127.42071R, 128.42071CL, 128.42071CR, 128.42071L, 128.42071R, 320.42071, 321.42071
Dura CorpBR31389, BR900408, BR90040802
DuraGo60435, 900408, BR60435, BR900408, BR90040802
NAPA BRAKESTSR7627
Newtek Automotive USA31389
Nissan402061JR1A, 402063WS1B, 40206AR000, 40206AR001, 40206AR002, 40206AR00A, 40206AR00B, 40206CK000, 40206ZM00A
OmnicraftQBRR25
PowerStopJBR1129EVC
Promax14-31389
Qualis44299
TRWDF7195S, DF7342
TopNotchTN980116GEO
TruStar476075
UAP2031389, 31389
Ultra BrakeNI-488
WABCO - ArchivedPS126096
WORLDPAC1407-78672
Wagner BrakeBD126096, BD126096E
Winhere6620602

RAYBESTOS 980116R2 Fits Vehicles

  • INFINITI M45 (2003-2004)
  • INFINITI Q45 (2002-2006)
  • Nissan Quest (2004-2009, 2011-2017)
