RAYBESTOS 76794R2 Part Description
Manufacturer
Product Description

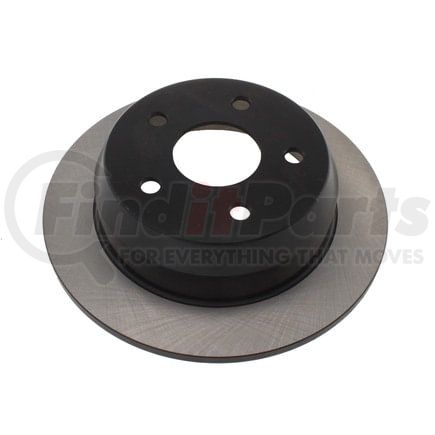

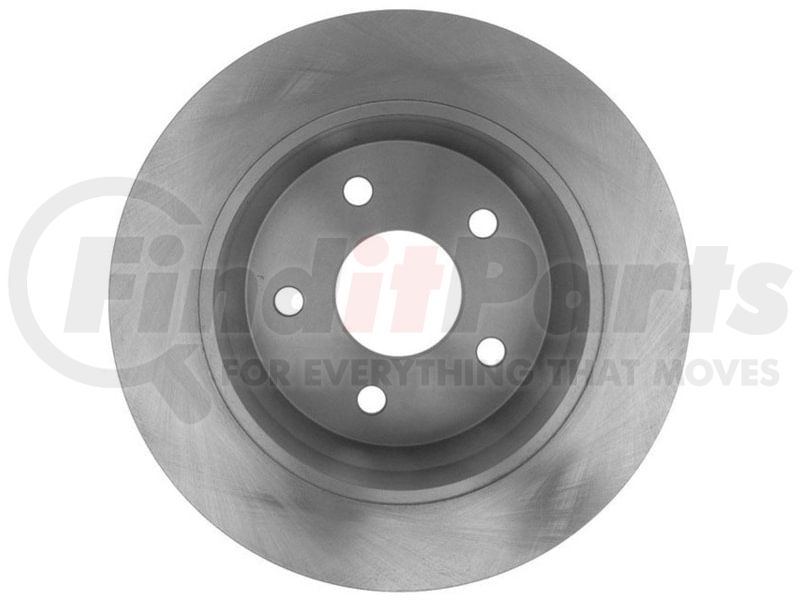

Raybestos R-Line+ Brake Rotor
Features & Benefits
- Painted Hat and Edges
- Top-Notch Surface Finish
- Superior surface finish for consistent braking.
- OE Vane Design
- OE vane design and plate thickness for heat capacity and strength.
- Advanced Metallurgy
- Advanced metallurgy for structural strength and heat transfer.
- Low Initial Lateral Run-out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free braking.
- Precision Balance
- Precision balance for vibration free performance.
Raybestos R-Line+ Brake Rotor
RAYBESTOS 76794R2 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.85 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.335 IN |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Diameter | 0.605 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Outside Diameter | 12 IN |
| Overall Height | 2.96 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 72.4 MM |
| Discard Thickness | 8.5 MM |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 15.35 MM |
| Nominal Thickness | 10 MM |
| Outside Diameter | 304.8 MM |
| Overall Height | 75.2 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213447088 |
RAYBESTOS 76794R2 Cross References
| Brand | Part Number |
|---|---|
| API | 1407-25694 |
| Advance Auto Parts | 145253, YH145253, YH145253C, YH145253P |
| American Remanufactured | 89-40043 |
| AutoZone | 5119, 5119B, 5119DG, DL5119 |
| Autopartsource | 591090 |
| Autospecialty | AR8743, AR8743E |
| Autoxtra | 125673, 8076794, AX5119, AX5119P |
| Bendix | 145253 |
| BrakeBest | 16010145, 76794, 76794FZN, 76794PER, 76794R, 76794RGS, 81-125673, BD125673 |
| Brembo | 08.8479.85, 08.A533.10, 27182 |
| California Drum & Rotor | 125673 |
| Casting Numbers | 211231-C, 325141 |
| Centric Parts | 120.67043, 120.67043CRY, 121.67043, 125.67043, 125.67043CRY, 126.67043CSL, 126.67043CSR, 126.67043SL, 126.67043SR, 127.67043CL, 127.67043CR, 127.67043L, 127.67043R, 128.67043CL, 128.67043CR, 128.67043L, 128.67043R, 227.67043L, 227.67043R, 320.67043, 320.67043F, 321.67043 |
| Chrysler | 52098666 |
| Continental-ContiTech | CW10701 |
| Dura Corp | BR5119, BR511902 |
| DuraGo | BR5119, BR511902, BR5119-02 |
| Eurorotor | 51210 |
| GREN | 608001 |
| Guardian | 52-125673 |
| Midas | BR2176 |
| Mighty Distributing System | 5119 |
| Monroe Brakes | BD125673 |
| Newtek Automotive USA | 5119 |
| Omnicraft | QBRR12 |
| Parts Master | P125673 |
| PowerStop | AR8743EVC |
| Promax | 14-5119 |
| Qualis | 5119, 6491090 |
| Qualitee International | 64-91-090 |
| Quality Brand | 5119 |
| Quinton Hazell | BDC5399 |
| Standard Rotors and Drums | 5119 |
| TRW | 4178 |
| TopNotch | TN76794GEO |
| TruStar | 491090, R91090 |
| UAP | 2005119, 5119 |
| Ultra Brake | 51210 |
| Universal | 105330 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51261 |
| WABCO - Archived | PS125673 |
| WORLDPAC | 1407-25694 |
| Wagner Brake | BD125673, BD125673E |
| Winhere | 661264, YH1264 |
RAYBESTOS 76794R2 Fits Vehicles
- Jeep Grand Cherokee (1999-2004)
