ICON K93203A Part Description
Manufacturer
Product Description

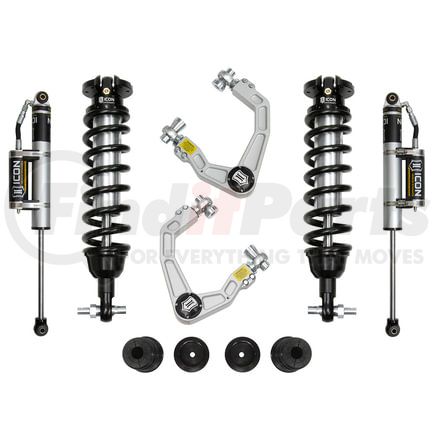

19-21 FORD RANGER 0-3.5" STAGE 3 SUSPENSION SYSTEM W BILLET UCA AL KNUCKLE
Features & Benefits
- Height-adjustable coilovers provide a range of 0-3.5” of front lift height
- Fits 2WD & 4WD applications
- Increased lift height allows for fitment of larger and more aggressive tires
- 35% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
- Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
- ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
- CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
- Direct bolt-in design makes for a simple and straightforward installation
- Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
Factory Wheels & Tires Fitment: Yes
19-21 FORD RANGER 0-3.5' STAGE 3 SU
ICON K93203A Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Add-on Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Bushings Included | Yes |
| California Prop 65 Warning | Yes |
| Coils Quantity Front | 2 |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift Front | 3.5 IN |
| Minimum Lift Front | 0 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Recommended Aftermarket Tires | 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) |
| Recommended Aftermarket Wheels | ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Title | ICON 19-21 Ford Ranger, 0-3.5" Lift, Stage 3 Susp System, Billet UCA Al Knuckle |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers; 5-Years-Delta Joints; Limited Lifetime-Coil Springs, Control Arms, Bump Stop Kit; Excludes Wearable Items |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103422466 |
ICON K93203A Fits Vehicles
- Ford Ranger (2019-2021)
