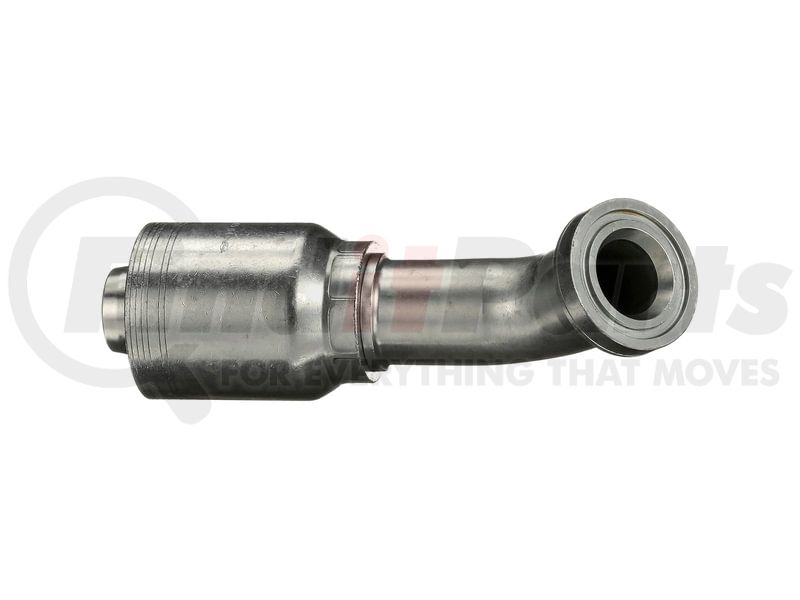

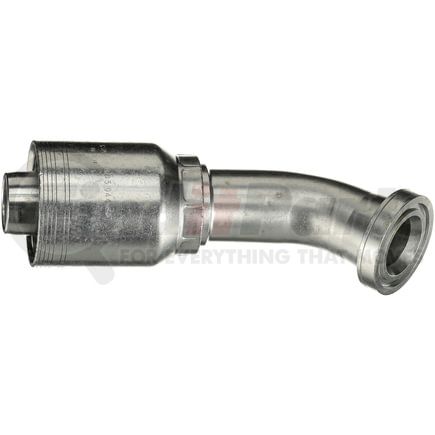

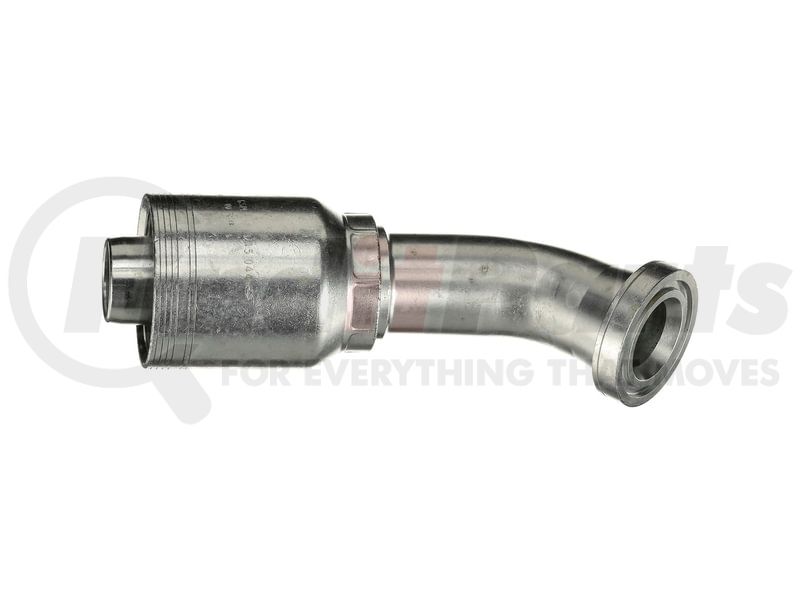

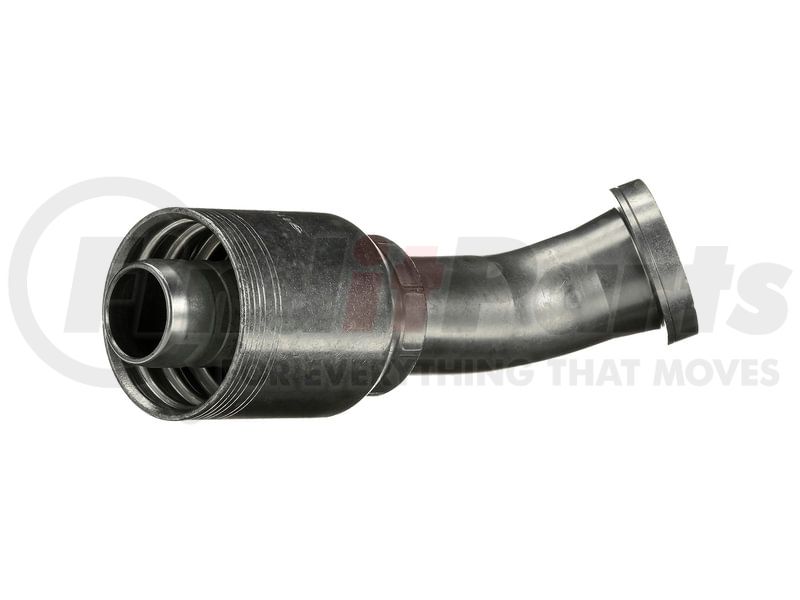

(888) 312-8812 Login SignupGATES G24357-2432 Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral MAX Pressure)
Tap to view 3 more
$25749
Limited availability at this price!
5 Day Lead Time
Get it by Monday, Aug 10
GATES G24357-2432 Part Description
Manufacturer
Product Description
Code 62 O-Ring Flange Heavy - 45 Bent Tube (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks

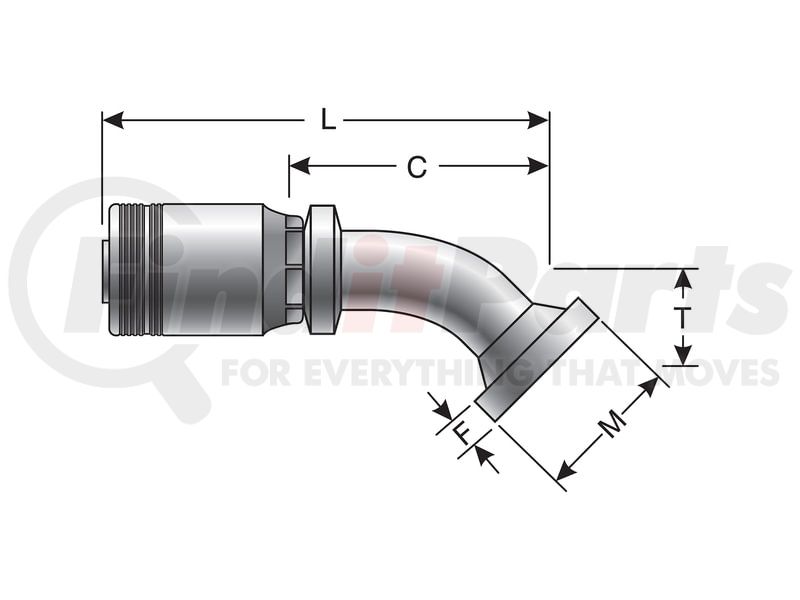

GATES G24357-2432 Specifications
Product Attributes
| Coupling Description | GlobalSpiral MAX Pressure Code 62 O-Ring Flange Heavy - 45 Bent Tube |
| Industrial Description | 24GSM-32FLH45M |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Flange Thickness | .5 in |
| Flange Diameter | 3.13 IN |
| Drop Length | 2.2 IN |
| Cut-Off Length | 5.75 IN |
| Length | 9.48 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 12.7 MM |
| Flange Diameter | 79.5 MM |
| Drop Length | 55.9 MM |
| Cut-Off Length | 146 MM |
| Length | 240.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00770075404071 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G24357-2432 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 6S32FHA24 |
| N/A | 04031428 |
| NAPA | G24357-2432 |
