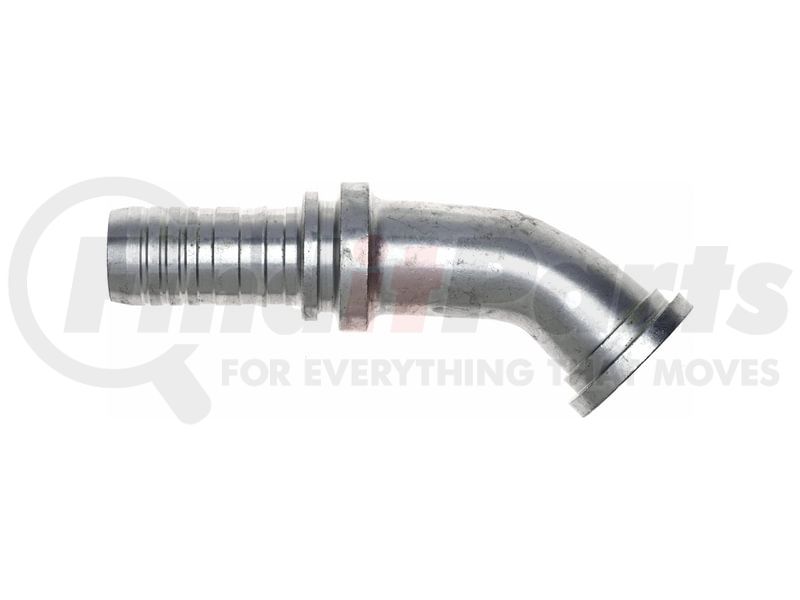

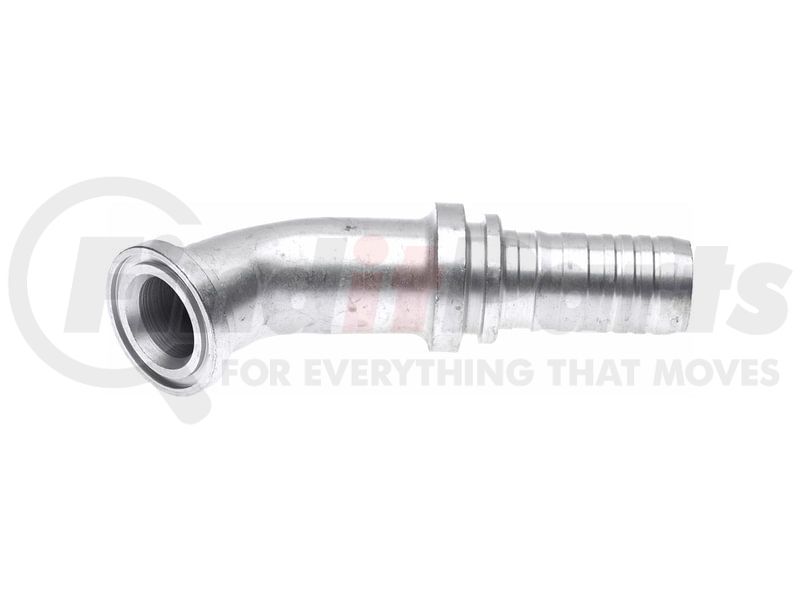

(888) 312-8812 Login SignupGATES G22307-3232 Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral Plus)
Tap to view 2 more
$20149
Limited availability at this price!
In Stock
Get it by Thursday, Jul 2
GATES G22307-3232 Part Description
Manufacturer
Product Description
Code 61 O-Ring Flange - 45 Bent Tube (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22307-3232 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Code 61 O-Ring Flange - 45 Bent Tube |
| Industrial Description | 32GSP-32FL45-066 |
| Inside Diameter | 2 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |
| Maximum Working Pressure | 3000 PS |

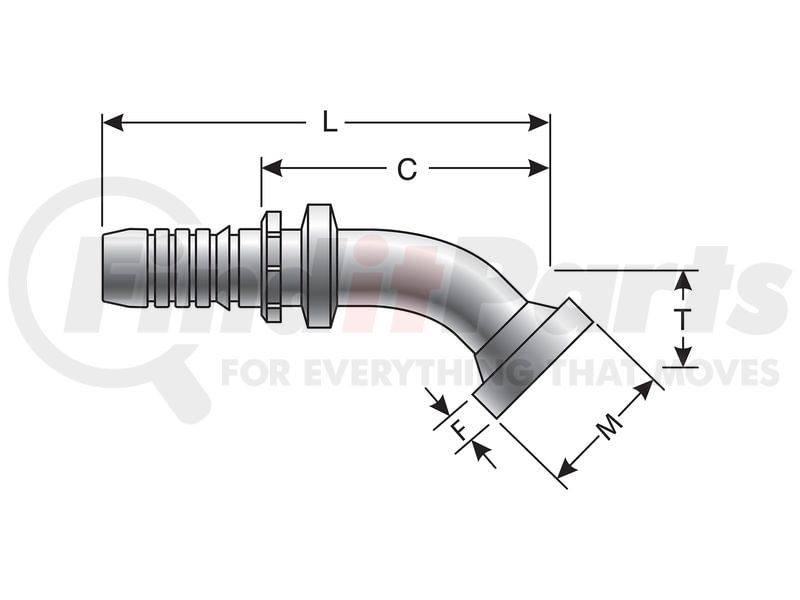

| Flange Thickness | .38 in |
| Flange Diameter | 2.81 IN |
| Drop Length | 2.6 IN |
| Cut-Off Length | 6.5 IN |
| Length | 10.12 IN |
| Inside Diameter | 50.8 MM |
| Flange Thickness | 9.7 MM |
| Flange Diameter | 71.4 MM |
| Drop Length | 66 MM |
| Cut-Off Length | 165 MM |
| Length | 257.1 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00770075424376 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22307-3232 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4S32FLA32 |
| Continental Belt | SG-FL45-3232, UC-FL45-3232 |
| Dayco | 100229, 100229U, 100515 |
| Eaton | 1A32FLA32 |
| Goodyear | 28340-3232 |
| N/A | 04031544, M23341-32-32 |
| NAPA | G22307-3232 |
| Parker | 11743-32-32 |
| Weatherhead | 32U-G62, 32ZG62, 47032E-G62 |
