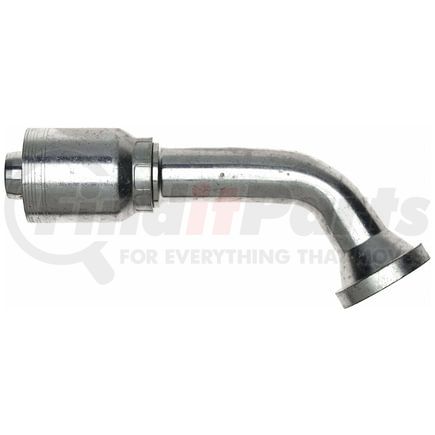

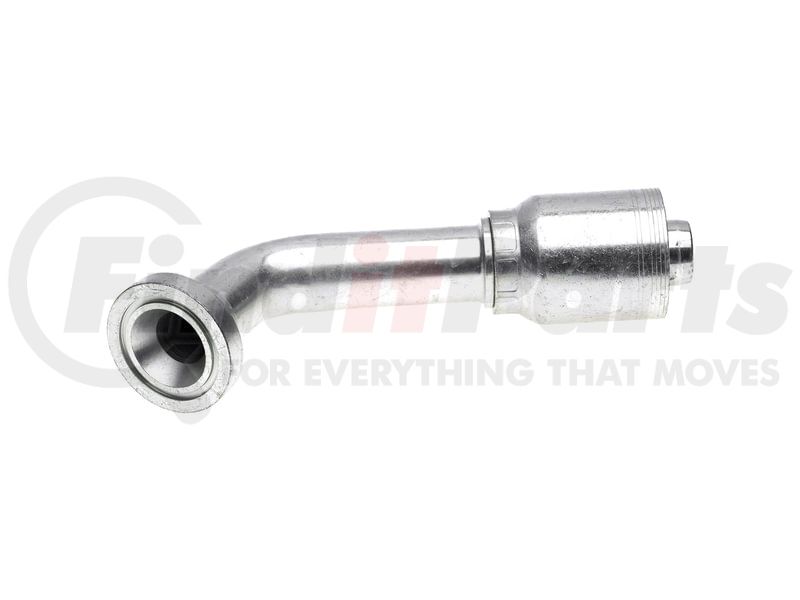

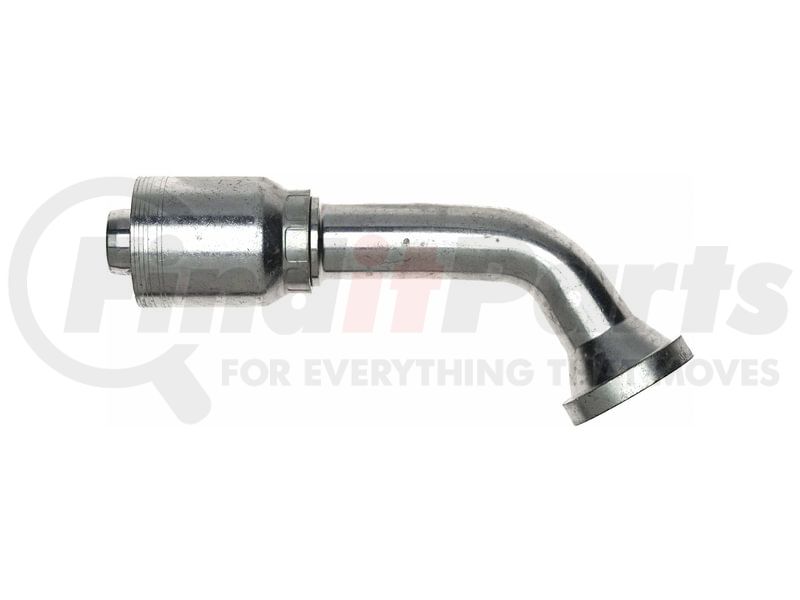

Gates G24409-2432 - Caterpillar Style O-Ring Flange - 60 Bent Tube (GlobalSpiral MAX Pressure)
$31899
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Caterpillar Style O-Ring Flange - 60 Bent Tube (GlobalSpiral MAX Pressure)
Features & Benefits
- Greater power and capacity from existing equipment by replacing 2 in., 5000 psi hose assemblies
- A flexible, easier-to-route hose assembly to replace 2 in. rigid pipe on crowded equipment platforms
- A stem machined from a single piece of solid steel for greater strength and integrity
- A no-skive design requiring no special equipment and skills, reducing the risk of blow-offs or leaks
Product Attributes

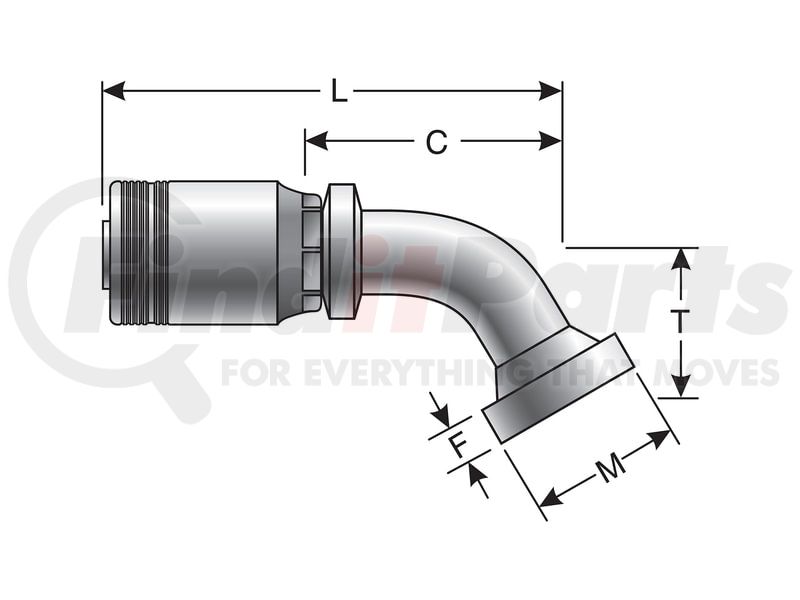

| Coupling Description | GlobalSpiral MAX Pressure Caterpillar Style O-Ring Flange - 60 Bent Tube |
| Industrial Description | 24GSM-32FLC60-087 |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Flange Thickness | .56 in |
| Flange Diameter | 3.13 IN |
| Drop Length | 3.42 IN |
| Cut-Off Length | 7.95 IN |
| Length | 11.69 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 14.2 MM |
| Flange Diameter | 79.5 MM |
| Drop Length | 86.9 MM |
| Cut-Off Length | 201.9 MM |
| Length | 297 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| UPC | 00770075403838 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
Part Interchanges
