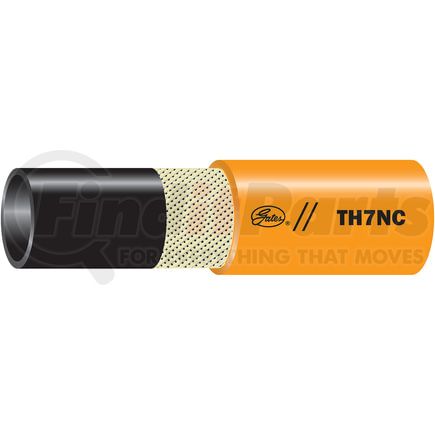

Gates 85408 - TH7NC Non-Conductive Hydraulic Thermoplastic Hose - SAE 100R7
$25699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
TH7NC Non-Conductive Hydraulic Thermoplastic Hose - SAE 100R7
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series] and Swage PCTS Couplings [G51 Series]
- Orange color TH7NC meets SAE 100R7 non-conductivity requirements and meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius
- Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage should not exceed 50 microamperes when subjected to 75 kV/Ft. for five minutes
- Meets ANSI A92.2 for vehicle mounted aerial devices
- Temperature Range: Petroleum and Synthetic Oils: -65 Deg. F to +200 Deg. F (-54 Deg. C to +93 Deg. C) constant; Water, Water/Oil Emulsions, Water Glycol: up to +158 Deg. F (+70 Deg. C)
Product Attributes
| Product Type | TH7NC Non-Conductive Hydraulic Hose - SAE 100R7 |
| Industrial Description | 3TH7NCX50FT |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | Medium Pressure |
| Maximum Working Pressure | 3000 PS |
| Burst Pressure | 12000 PS |
| Temperature Rating | -65 Deg. F to +200 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water/Oil & Water Glycol) |
| Length | 50 FT |
| Dash Size | 3 |
| Inside Diameter | .1875 IN |
| Outside Diameter | .41 IN |
| Bend Radius | .75 IN |
| Tube Description | Nylon |
| Hose Material | Nylon |
| Reinforcement Material | Synthetic Fiber (Except -2) |
| Cover Material | Urethane - Non-Perforated for Applications Requiring Electrical Non-Conductivity |
| Cover Type | Resistant to Hydraulic Fluid, High Temperature, Aging & Weathering |
| Cover Color | Orange |
| Coupling Recommendation | Swage PCTS |
| SAE Standard | 100R7 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| UPC | 00770075322139 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
Part Interchanges
