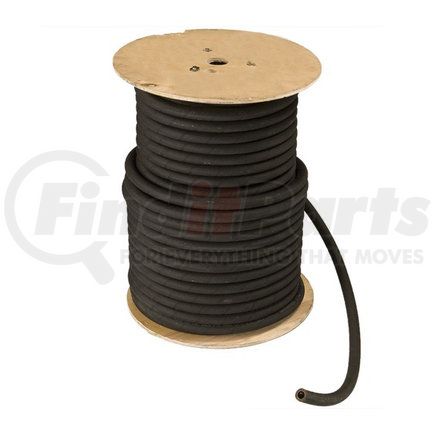

Weatherhead H03920 - HYD HOSE
- Part Number
- H03920
- Manufacturer
- WEATHERHEAD
- Description
-
HYD HOSE
details
$2349
In stock
limited availability at this price!
. Learn more
WEATHERHEAD part description
| Abrasion Resistance | Standard |
| Application | Suction applications for hydraulics, crude fuel and lubricating oils, gasoline, air, water and chemical transfer. |
| Bend Radius Min | 4 inch |
| Burst Pressure | 820 psi |
| Color | Black |
| Conductivity | Conductive |
| Construction | Multi Braid |
| Cover Material | Synthetic Rubber |
| Dash Size | -20 |
| Factory Crimp | Yes |
| InsIDe Diameter | 1.25 inch |
| Lay Line Style | Ink Wheel |
| Length Configuration | 50, 100, 150 |
| OutsIDe Diameter | 1.82 inch |
| Package Form | Box |
| Qualified Hose Fittings | U, S, 039 K, Z |
| Reinforcement Material | Fabric and Wire |
| Tube Material | Synthetic Rubber |
| Tube Wall Thickness | 0.29 inch |
| Working Pressure | 205 psi |
| Working Temperature Max | 275 degree Fahrenheit |
| Working Temperature Min | -40 degree Fahrenheit |
Features & Benefits
- Maximum durability under harsh operating conditions
- Robust construction able to withstand highest pressures
- System engineered to extend hose assembly life
| Hose Inner Diameter | 1-1/4 |
| Hose Outer Diameter | 1-53/64 |
| Working Pressure | 200 |
| Min Burst Pressure | 800 |
| Min Bend Radius | 4 |
| Vacuum Service | 25 |
| Hose Weight | 75 |
| Available Lengths | 50 |
Officially acquired by Eaton in 2002, Weatherhead® is one of the industry’s biggest suppliers of hydraulic hose, hose ends, tube fittings, couplings, assembly equipment, and support accessories. Weatherhead crafts top-products that are widely used in mining, agriculture, construction, truck, and bus applications. Eaton delivers Weatherhead thermoplastic tubing in different sizes—from 1/8 to 1 inch—designed for use in air tools, robotics, beverage dispensing as well as air and water supply. Driven by the company’s goal to offer unique solutions to a wide range of markets that enable businesses to be at the forefront of change, Weatherhead remains the truck industry’s leading source of premium-quality hoses, fittings, and adapters for your fleet’s hose and fittings needs
